SN74LVC1G00DBVR

Active

UMW

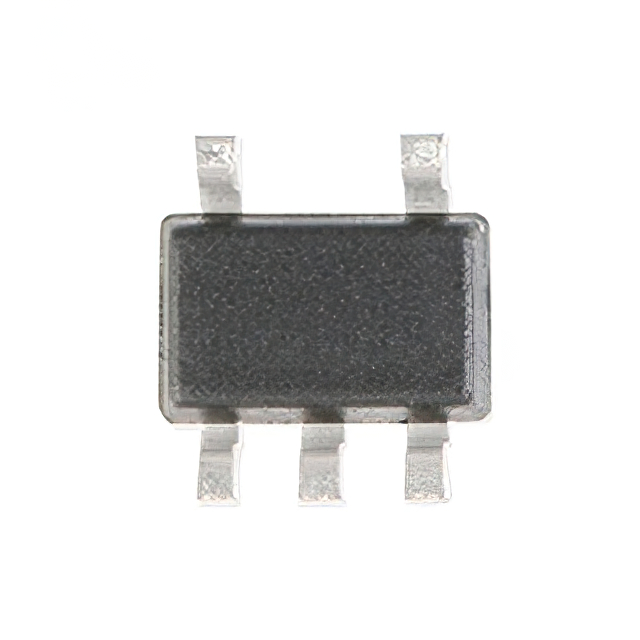

IC GATE NAND 1CH 2-INP SOT23-5

Search across all available documentation for this part.

Active

UMW

IC GATE NAND 1CH 2-INP SOT23-5

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SN74LVC1G00DBVR	74LVC1G00 Series

Current - Output High, Low [x]	32 mA	32 mA
Current - Output High, Low [y]	32 mA	32 mA
Current - Quiescent (Max) [Max]	10 µA	10 µA
Input Logic Level - High [custom]	1.7 V	1.7 V
Logic Type	NAND Gate	NAND Gate
Max Propagation Delay @ V, Max CL	10 ns	10 ns
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	1	1
Number of Inputs	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	SC-74A, SOT-753	SC-70-5, 5-TSSOP, SOT-353, SC-74A, SOT-753
Supplier Device Package	SOT-23-5	SC-70-5, SOT-23-5
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	1.65 V	1.65 V

IC GATE NAND 1CH 2-INP SC70-5

Part	Supplier Device Package	Input Logic Level - High [custom]	Mounting Type	Number of Circuits	Logic Type	Number of Inputs	Current - Output High, Low [y]	Current - Output High, Low [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Max) [Max]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Max Propagation Delay @ V, Max CL
UMW SN74LVC1G00DCKR	SC-70-5	1.7 V	Surface Mount	1	NAND Gate	2	32 mA	32 mA	-40 °C	105 ░C	10 µA	5-TSSOP, SC-70-5, SOT-353	5.5 V	1.65 V	10 ns
UMW SN74LVC1G00DBVR	SOT-23-5	1.7 V	Surface Mount	1	NAND Gate	2	32 mA	32 mA	-40 °C	105 ░C	10 µA	SC-74A, SOT-753	5.5 V	1.65 V	10 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NAND Gate IC 1 Channel SOT-23-5
