3PS-500-2-BL

Active

BRADY

SLEEVE, 0.5 IN DIA X 2 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.5 IN DIA X 2 IN W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3PS-500-2-BL	3PS-500 Series

	-	-
Color	Blue	Gray, Pink, Green, Blue, Yellow, Black, Violet, Brown, Red, White
Label Size	-	0.85 - 21.6 in
Label Size	-	0.25 - 6.4 in
Label Size	-	0.45 - 11.4 in
Label Size	-	0.45 - 11.4 "
Label Size	-	0.19 - 4.8 mm
Label Size [diameter]	4.8 mm, 11.4 mm, 0.19 in, 12.7 mm, 0.45 in	0.19 - 12.7 mm
Label Size [diameter]	0.5 "	0.5 "
Label Size [x]	50.8 mm	25.4 - 50.8 mm
Label Size [x]	2 "	2 "
Label Type	Heat Shrinkable	Heat Shrinkable
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C

SLEEVE, 0.5 IN DIA X 2 IN W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Label Type	Color	Material	Label Size [y]	Label Size [Min] [diameter]	Label Size [Max] [diameter]	Label Size [x]	Label Size [Max]	Label Size [Min]	Label Size [diameter]	Label Size [diameter]	Label Size [x]
BRADY 3PS-500-2-WT-J
BRADY 3PS-500-2-GY-S	135 °C	-55 °C	Heat Shrinkable	Gray	Polyolefin (PO)	0.85 in, 21.6 mm	0.25 in, 6.4 mm	0.45 in, 11.4 mm	50.8 mm
BRADY 3PS-500-2-PK-S-2	135 °C	-55 °C	Heat Shrinkable	Pink	Polyolefin (PO)				25.4 mm	0.45 ", 11.4 mm	0.19 ", 4.8 mm	12.7 mm
BRADY 3PS-500-2-GR-2	135 °C	-55 °C	Heat Shrinkable	Green	Polyolefin (PO)				25.4 mm	0.45 ", 11.4 mm	0.19 ", 4.8 mm	12.7 mm
BRADY 3PS-500-2-BL	135 °C	-55 °C	Heat Shrinkable	Blue	Polyolefin (PO)				50.8 mm			0.19 in, 0.45 in, 4.8 mm, 11.4 mm, 12.7 mm	0.5 "	2 "
BRADY 3PS-500-2-YL-SC-2	135 °C	-55 °C	Heat Shrinkable	Yellow	Polyolefin (PO)				25.4 mm	0.45 ", 11.4 mm	0.19 ", 4.8 mm	12.7 mm
BRADY 3PS-500-2-BK	135 °C	-55 °C	Heat Shrinkable	Black	Polyolefin (PO)				50.8 mm			0.19 in, 0.45 in, 4.8 mm, 11.4 mm, 12.7 mm	0.5 "	2 "
BRADY 3PS-500-2-VT	135 °C	-55 °C	Heat Shrinkable	Violet	Polyolefin (PO)	0.85 in, 21.6 mm	0.25 in, 6.4 mm	0.45 in, 11.4 mm	50.8 mm
BRADY 3PS-500-2-YL-SC
BRADY 3PS-500-2-GR-S	135 °C	-55 °C	Heat Shrinkable	Green	Polyolefin (PO)	0.85 in, 21.6 mm	0.25 in, 6.4 mm	0.45 in, 11.4 mm	50.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 752.99

General part information

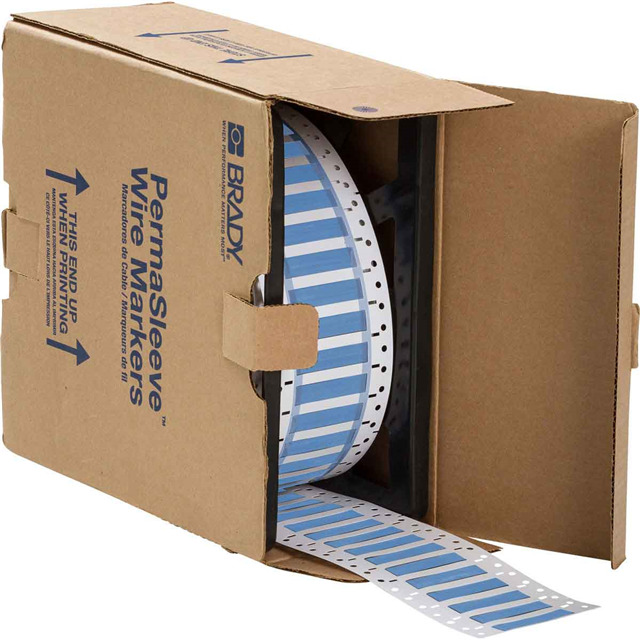

Blue Heat Shrinkable Label 2.00" W x 0.50" Dia (50.8mm x 12.7mm); Cable O.D. 0.19" ~ 0.45" (4.8mm ~ 11.4mm)
