3PS-500-2-GY-S

Active

BRADY

SLEEVE, 0.5 IN DIA X 2 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.5 IN DIA X 2 IN W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 535.17

General part information

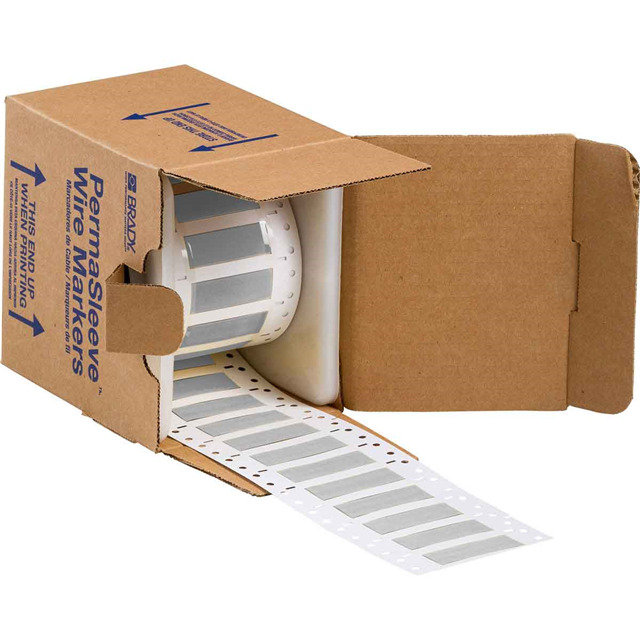

Gray Heat Shrinkable Label 2.00" W x 0.85" H (50.8mm x 21.6mm); Cable O.D. 0.25" ~ 0.45" (6.4mm ~ 11.4mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	3PS-500-2-GY-S	3PS-500 Series

	-	-
Color	Gray	Gray, Pink, Green, Blue, Yellow, Black, Violet, Brown, Red, White
Label Size	-	0.45 - 11.4 "
Label Size	-	0.19 - 4.8 mm
Label Size	-	0.19 - 12.7 mm
Label Size	-	0.5 "
Label Size	-	2 "
Label Size [Max] [diameter]	0.45 in, 11.4 mm	0.45 - 11.4 in
Label Size [Min] [diameter]	0.25 in, 6.4 mm	0.25 - 6.4 in
Label Size [x]	50.8 mm	25.4 - 50.8 mm
Label Size [y]	0.85 in, 21.6 mm	0.85 - 21.6 in
Label Type	Heat Shrinkable	Heat Shrinkable
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C

SLEEVE, 0.5 IN DIA X 2 IN W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Label Type	Color	Material	Label Size [y]	Label Size [Min] [diameter]	Label Size [Max] [diameter]	Label Size [x]	Label Size [Max]	Label Size [Min]	Label Size [diameter]	Label Size [diameter]	Label Size [x]
BRADY 3PS-500-2-WT-J
BRADY 3PS-500-2-GY-S	135 °C	-55 °C	Heat Shrinkable	Gray	Polyolefin (PO)	0.85 in, 21.6 mm	0.25 in, 6.4 mm	0.45 in, 11.4 mm	50.8 mm
BRADY 3PS-500-2-PK-S-2	135 °C	-55 °C	Heat Shrinkable	Pink	Polyolefin (PO)				25.4 mm	0.45 ", 11.4 mm	0.19 ", 4.8 mm	12.7 mm
BRADY 3PS-500-2-GR-2	135 °C	-55 °C	Heat Shrinkable	Green	Polyolefin (PO)				25.4 mm	0.45 ", 11.4 mm	0.19 ", 4.8 mm	12.7 mm
BRADY 3PS-500-2-BL	135 °C	-55 °C	Heat Shrinkable	Blue	Polyolefin (PO)				50.8 mm			0.19 in, 0.45 in, 4.8 mm, 11.4 mm, 12.7 mm	0.5 "	2 "
BRADY 3PS-500-2-YL-SC-2	135 °C	-55 °C	Heat Shrinkable	Yellow	Polyolefin (PO)				25.4 mm	0.45 ", 11.4 mm	0.19 ", 4.8 mm	12.7 mm
BRADY 3PS-500-2-BK	135 °C	-55 °C	Heat Shrinkable	Black	Polyolefin (PO)				50.8 mm			0.19 in, 0.45 in, 4.8 mm, 11.4 mm, 12.7 mm	0.5 "	2 "
BRADY 3PS-500-2-VT	135 °C	-55 °C	Heat Shrinkable	Violet	Polyolefin (PO)	0.85 in, 21.6 mm	0.25 in, 6.4 mm	0.45 in, 11.4 mm	50.8 mm
BRADY 3PS-500-2-YL-SC
BRADY 3PS-500-2-GR-S	135 °C	-55 °C	Heat Shrinkable	Green	Polyolefin (PO)	0.85 in, 21.6 mm	0.25 in, 6.4 mm	0.45 in, 11.4 mm	50.8 mm
