DAC39RFS10EFACK
Active16-BIT, 1-CHANNEL, 20.48-GSPS 12-GHZ RF DIGITAL-TO-ANALOG CONVERTER, INPUT RATE LIMITED
Deep-Dive with AI
Search across all available documentation for this part.
DAC39RFS10EFACK
Active16-BIT, 1-CHANNEL, 20.48-GSPS 12-GHZ RF DIGITAL-TO-ANALOG CONVERTER, INPUT RATE LIMITED
Technical Specifications
Parameters and characteristics for this part
| Specification | DAC39RFS10EFACK |
|---|---|
| Architecture | Current Source |
| Data Interface | JESD204B |
| Differential Output | True |
| INL/DNL (LSB) [Max] | 9 LSB, 2.2 LSB |
| INL/DNL (LSB) [Min] | -9 LSB, -2.2 LSB |
| Mounting Type | Surface Mount |
| Number of Bits | 16 bits |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Current - Unbuffered |

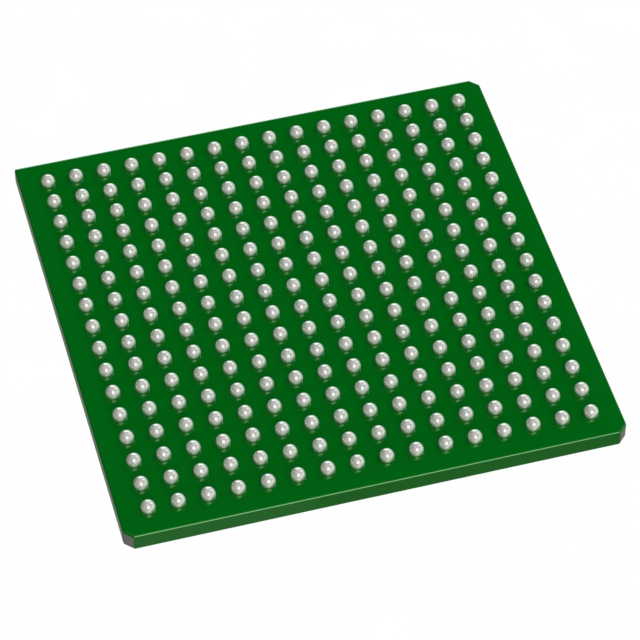

| Package / Case | FCBGA, 256-BBGA |
| Reference Type | Internal, External |
| Supplier Device Package | 256-FCBGA (17x17) |
| Voltage - Supply, Analog [Max] | 1.05 V, 1.89 V |
| Voltage - Supply, Analog [Min] | 0.95 V, 1.71 V |
| Voltage - Supply, Digital [Max] | 1.05 V |
| Voltage - Supply, Digital [Min] | 0.95 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DAC39RFS10EF Series
16-bit, 1-channel, 20.48-GSPS 12-GHz RF digital-to-analog converter, input rate limited
| Part | Supplier Device Package | Data Interface | Output Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Reference Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | INL/DNL (LSB) [Max] | INL/DNL (LSB) [Min] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Number of Bits | Differential Output | Architecture |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments DAC39RFS10EFACKThe DAC39RF10EF and ’RFS10EF are a family of dual and single channel digital-to-analog converters (DAC) with 16-bit resolution. The devices can be used as non-interpolating or interpolating DACs for either direct RF sampling or complex baseband signal generation. The maximum input data rate is 20.48GSPS for a single channel or 10.24GSPS for two channels. The device can generate signals of up to 10, 2.73 or 1GHz signal bandwidth (8, 11, and 16-bit input resolution) at carrier frequencies exceeding 8GHz enabling direct sampling through C-band and into X-band.
The high sampling rate, output frequency range, 64-bit NCO frequency resolution and any frequency hopping with phase coherence also makes DAC39RF10EF and ’RFS10EF capable of arbitrary waveform generation (AWG) and direct digital synthesis (DDS).
A JESD204B and JESD204C compatible serial interface has 16 receiver pairs capable of up to 12.8Gbps. The interface is JESD204B and JESD204C subclass-1 compliant for deterministic latency and multi-device synchronization through the use of SYSREF.
The DAC39RF10EF and ’RFS10EF are a family of dual and single channel digital-to-analog converters (DAC) with 16-bit resolution. The devices can be used as non-interpolating or interpolating DACs for either direct RF sampling or complex baseband signal generation. The maximum input data rate is 20.48GSPS for a single channel or 10.24GSPS for two channels. The device can generate signals of up to 10, 2.73 or 1GHz signal bandwidth (8, 11, and 16-bit input resolution) at carrier frequencies exceeding 8GHz enabling direct sampling through C-band and into X-band.
The high sampling rate, output frequency range, 64-bit NCO frequency resolution and any frequency hopping with phase coherence also makes DAC39RF10EF and ’RFS10EF capable of arbitrary waveform generation (AWG) and direct digital synthesis (DDS).
A JESD204B and JESD204C compatible serial interface has 16 receiver pairs capable of up to 12.8Gbps. The interface is JESD204B and JESD204C subclass-1 compliant for deterministic latency and multi-device synchronization through the use of SYSREF. | 256-FCBGA (17x17) | JESD204B | Current - Unbuffered | Surface Mount | -40 °C | 85 °C | 256-BBGA, FCBGA | External, Internal | 1.05 V | 0.95 V | 2.2 LSB, 9 LSB | -9 LSB, -2.2 LSB | 1.05 V, 1.89 V | 0.95 V, 1.71 V | 16 bits | Current Source |
Description
General part information
DAC39RFS10EF Series
The DAC39RF10EF and ’RFS10EF are a family of dual and single channel digital-to-analog converters (DAC) with 16-bit resolution. The devices can be used as non-interpolating or interpolating DACs for either direct RF sampling or complex baseband signal generation. The maximum input data rate is 20.48GSPS for a single channel or 10.24GSPS for two channels. The device can generate signals of up to 10, 2.73 or 1GHz signal bandwidth (8, 11, and 16-bit input resolution) at carrier frequencies exceeding 8GHz enabling direct sampling through C-band and into X-band.
The high sampling rate, output frequency range, 64-bit NCO frequency resolution and any frequency hopping with phase coherence also makes DAC39RF10EF and ’RFS10EF capable of arbitrary waveform generation (AWG) and direct digital synthesis (DDS).
A JESD204B and JESD204C compatible serial interface has 16 receiver pairs capable of up to 12.8Gbps. The interface is JESD204B and JESD204C subclass-1 compliant for deterministic latency and multi-device synchronization through the use of SYSREF.
