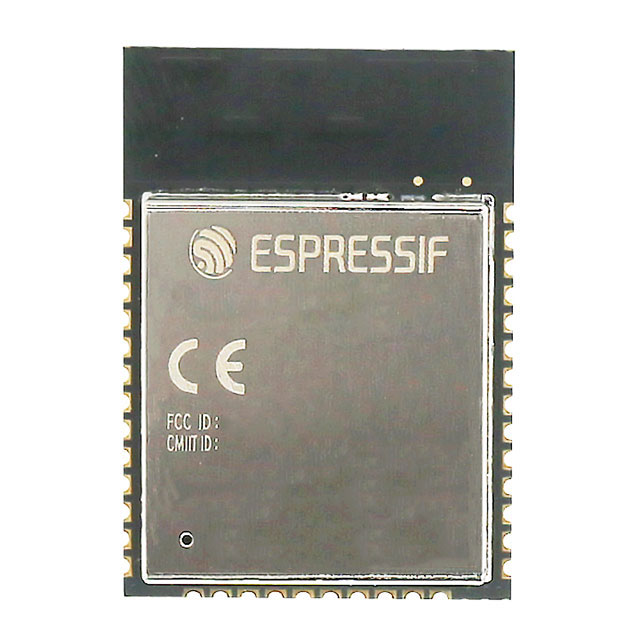

ESP32-WROOM-32E-N4

Active

Espressif Systems

RF TXRX MOD BT WIFI TH SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESP32 Datasheet Datasheet

ESP32-WROOM-32E-N4

Active

Espressif Systems

RF TXRX MOD BT WIFI TH SMD

Deep-Dive with AI

DocumentsESP32 Datasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.50
	Digi-Reel®	1	$ 2.50
	Tape & Reel (TR)	650	$ 2.50

Description

General part information

ESP32 Series

Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 Transceiver Module 2.4GHz ~ 2.5GHz Integrated, Trace Surface Mount

Documents

Technical documentation and resources

ESP32 Datasheet

Datasheet

Specification	ESP32-WROOM-32E-N4	ESP32 Series

	-	-
Antenna Type	Integrated, Trace	Antenna Not Included, PCB Trace, Antenna Not Included, U.FL, Integrated, Trace, Antenna Not Included, I-PEX
Contents	-	Board(s)
Current - Receiving	-	63 - 112 mA
Current - Receiving	-	68 - 118 mA
Current - Receiving	-	80 mA
Current - Transmitting	-	233 - 379 mA
Current - Transmitting	-	130 - 260 mA
Current - Transmitting	-	80 mA
Data Rate	150 Mbps	150 Mbps
For Use With/Related Products	-	ESP-WROOM-32, ESP32, ESP32-WROOM-32UE, ESP32-PICO-MINI-02, ESP32-WROVER-E, ESP32-WROVER-IE, ESP32-WROVER-B, ESP32-PICO-D4, ESP32-WROOM-32E, ESP32-WROOM32D
Frequency	-	2.4 GHz
Frequency [Max]	2.5 GHz	2.484 - 2.5 GHz
Frequency [Min]	2.4 GHz	2.4 - 2.412 GHz
Memory Size	448 kB, 4 MB, 536 kB	4 - 536 Gbit
Memory Size	-	8 - 16 MB
Memory Size	-	2 - 536 MB
Memory Size	-	2 MB
Memory Size	-	448 kB
Modulation	DSSS, OFDM, CCK	DQPSK, 8DPSK, DSSS, OFDM, CCK, DPSK
Mounting Type	Surface Mount	Surface Mount, Chassis Mount
Note	-	Note: Not recommended for mass production use
Operating Temperature [Max]	85 °C	65 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	38-SMD Module	38-SMD Module, 56-VFQFN Exposed Pad, Module, 53-SMD Module, 77-SMD Module, 48-SMD Module, 55-SMD Module, 48-TFQFN Exposed Pad
Power - Output	20 dBm	18.5 - 20.5 dBm
Protocol	802.11b/g/n, Class 3, Class 1, Class 2, Bluetooth v4.2 +EDR	Class 1, Bluetooth v4.2 + EDR, Class 3, 802.11b/g/n, Class 2, Bluetooth v4.2 +EDR, Bluetooth v4.2, Bluetooth 4.2
RF Family/Standard	WiFi, Bluetooth	WiFi, Bluetooth
Sensitivity	-98 dBm	-98.4 - -97 dBm
Serial Interfaces	GPIO, ADC, UART, I2C, PWM, SPI, I2S, SDIO	GPIO, ADC, UART, I2C, PWM, SPI, I2S, SDIO, PCM, JTAG
Supplied Contents	-	Board(s)
Type	-	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver, Bluetooth® Smart 4.x Low Energy (BLE), Programmer
Utilized IC / Part	ESP32-D0WD-V3	ESP32-S0WD, ESP32-S2, ESP32-PICO-V3-02, ESP32-D0WD, ESP32-D0WDQ6, ESP32-D0WD-V3, ESP32-D0WDR2-V3, ESP32-PICO-MINI-02, ESP32-U4WDH
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	2.3 - 3 V

Specification

ESP32-WROOM-32E-N4

ESP32 Series

Antenna Type

Integrated, Trace

Antenna Not Included, PCB Trace, Antenna Not Included, U.FL, Integrated, Trace, Antenna Not Included, I-PEX

Contents

Board(s)

Current - Receiving

63 - 112 mA

Current - Receiving

68 - 118 mA

Current - Receiving

80 mA

Current - Transmitting

233 - 379 mA

Current - Transmitting

130 - 260 mA

Current - Transmitting

80 mA

Data Rate

150 Mbps

For Use With/Related Products

ESP-WROOM-32, ESP32, ESP32-WROOM-32UE, ESP32-PICO-MINI-02, ESP32-WROVER-E, ESP32-WROVER-IE, ESP32-WROVER-B, ESP32-PICO-D4, ESP32-WROOM-32E, ESP32-WROOM32D

Frequency

2.4 GHz

Frequency [Max]

2.5 GHz

2.484 - 2.5 GHz

Frequency [Min]

2.4 GHz

2.4 - 2.412 GHz

Memory Size

448 kB, 4 MB, 536 kB

4 - 536 Gbit

Memory Size

8 - 16 MB

Memory Size

2 - 536 MB

Memory Size

2 MB

Memory Size

448 kB

Modulation

DSSS, OFDM, CCK

DQPSK, 8DPSK, DSSS, OFDM, CCK, DPSK

Mounting Type

Surface Mount

Surface Mount, Chassis Mount

Note

Note: Not recommended for mass production use

Operating Temperature [Max]

85 °C

65 - 125 °C

Operating Temperature [Min]

-40 °C

Package / Case

38-SMD Module

38-SMD Module, 56-VFQFN Exposed Pad, Module, 53-SMD Module, 77-SMD Module, 48-SMD Module, 55-SMD Module, 48-TFQFN Exposed Pad

Power - Output

20 dBm

18.5 - 20.5 dBm

Protocol

802.11b/g/n, Class 3, Class 1, Class 2, Bluetooth v4.2 +EDR

Class 1, Bluetooth v4.2 + EDR, Class 3, 802.11b/g/n, Class 2, Bluetooth v4.2 +EDR, Bluetooth v4.2, Bluetooth 4.2

RF Family/Standard

WiFi, Bluetooth

Sensitivity

-98 dBm

-98.4 - -97 dBm

Serial Interfaces

GPIO, ADC, UART, I2C, PWM, SPI, I2S, SDIO

GPIO, ADC, UART, I2C, PWM, SPI, I2S, SDIO, PCM, JTAG

Supplied Contents

Board(s)

Type

802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver, Bluetooth® Smart 4.x Low Energy (BLE), Programmer

Utilized IC / Part

ESP32-D0WD-V3

ESP32-S0WD, ESP32-S2, ESP32-PICO-V3-02, ESP32-D0WD, ESP32-D0WDQ6, ESP32-D0WD-V3, ESP32-D0WDR2-V3, ESP32-PICO-MINI-02, ESP32-U4WDH

Voltage - Supply [Max]

3.6 V

Voltage - Supply [Min]

3 V

2.3 - 3 V

Part

Mounting Type

Voltage - Supply [Max]

Voltage - Supply [Min]

RF Family/Standard

Antenna Type

Package / Case

Serial Interfaces

Data Rate

Memory Size

Operating Temperature [Max]

Operating Temperature [Min]

Frequency

Utilized IC / Part

Sensitivity

Power - Output

Protocol

Frequency [Max]

Frequency [Min]

Type

For Use With/Related Products

Supplied Contents

Current - Receiving [Min]

Current - Receiving [Max]

Current - Transmitting [Max]

Current - Transmitting [Min]

Memory Size [custom]

Modulation

Memory Size [custom]

Current - Receiving

Current - Transmitting

Contents

Note

Espressif Systems

ESP32-SOLO-1(M113SH3200PH3Q0)

Surface Mount

3.6 V

3 V

Bluetooth, WiFi

Antenna Not Included

38-SMD Module

ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART

150 Mbps

32 Gbit

85 °C

-40 °C

2.4 GHz

ESP32-S0WD

-98 dBm

18.5 dBm

802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, Class 2, Class 3

Espressif Systems

ESP32-WROOM-32-N4

Surface Mount

3.6 V

2.7 V

Bluetooth, WiFi

38-SMD Module

150 Mbps

85 °C

-40 °C

-98 dBm

20 dBm

2.5 GHz

2.4 GHz

Espressif Systems

ESP32-DEVKITC-32D-F

2.4 GHz

802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver

ESP-WROOM-32

Board(s)

Espressif Systems

ESP32-S2

Surface Mount

3.6 V

2.8 V

WiFi

Antenna Not Included

56-VFQFN Exposed Pad

ADC, I2C, I2S, PWM, SPI, UART

150 Mbps

125 °C

-40 °C

2.4 GHz

ESP32-S2

-97 dBm

19.5 dBm

802.11b/g/n

63 mA

68 mA

310 mA

160 mA

Espressif Systems

ESP32-PICO-MINI-02

Chassis Mount

Bluetooth, WiFi

PCB Trace

Module

I2C, I2S, SPI, UART

2.4 GHz

19.5 dBm

8 MB

2 MB

Espressif Systems

ESP32-LYRAT

2.4 GHz

802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver

Board(s)

Espressif Systems

ESP32-PICO-MINI-02U-N8R2

Surface Mount

3.6 V

3 V

Bluetooth, WiFi

Antenna Not Included, U.FL

53-SMD Module

ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART

150 Mbps

85 °C

-40 °C

2.4 GHz

ESP32-PICO-V3-02

-97 dBm

19.5 dBm

802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3

111 mA

117 mA

368 mA

248 mA

8 MB

536 kB

8DPSK, DQPSK

2 MB

448 kB

Espressif Systems

ESP32-WROOM-32D-N8

Surface Mount

3.6 V

2.7 V

Bluetooth, WiFi

Integrated, Trace

38-SMD Module

GPIO, I2C, I2S, PWM, SDIO, SPI, UART

150 Mbps

85 °C

-40 °C

ESP32-D0WD

-98 dBm

20.5 dBm

802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3

2.5 GHz

2.4 GHz

CCK, DSSS, OFDM

Espressif Systems

ESP32-WROVER-IB (8MB)

Surface Mount

3.6 V

2.7 V

Bluetooth, WiFi

PCB Trace

38-SMD Module

ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART

150 Mbps

85 °C

-40 °C

ESP32-D0WD

-98 dBm

20 dBm

802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3

2.5 GHz

2.4 GHz

Espressif Systems

ESP32-WROVER(M203QL6464PH3Q0)

Surface Mount

3.6 V

2.3 V

Bluetooth, WiFi

PCB Trace

38-SMD Module

ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, SPI, UART

150 Mbps

4 MB, 8 MB

85 °C

-40 °C

ESP32-D0WDQ6

-98 dBm

18.5 dBm

802.11b/g/n, Bluetooth v4.2 + EDR

2.484 GHz

2.412 GHz

DPSK, DQPSK

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Antenna Type	Package / Case	Serial Interfaces	Data Rate	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Utilized IC / Part	Sensitivity	Power - Output	Protocol	Frequency [Max]	Frequency [Min]	Type	For Use With/Related Products	Supplied Contents	Current - Receiving [Min]	Current - Receiving [Max]	Current - Transmitting [Max]	Current - Transmitting [Min]	Memory Size [custom]	Memory Size [custom]	Modulation	Memory Size [custom]	Memory Size [custom]
Espressif Systems ESP32-SOLO-1(M113SH3200PH3Q0)	Surface Mount	3.6 V	3 V	Bluetooth, WiFi	Antenna Not Included	38-SMD Module	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps	32 Gbit	85 °C	-40 °C	2.4 GHz	ESP32-S0WD	-98 dBm	18.5 dBm	802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, Class 2, Class 3
Espressif Systems ESP32-WROOM-32-N4	Surface Mount	3.6 V	2.7 V	Bluetooth, WiFi		38-SMD Module		150 Mbps		85 °C	-40 °C			-98 dBm	20 dBm		2.5 GHz	2.4 GHz
Espressif Systems ESP32-DEVKITC-32D-F												2.4 GHz							802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver	ESP-WROOM-32	Board(s)
Espressif Systems ESP32-S2	Surface Mount	3.6 V	2.8 V	WiFi	Antenna Not Included	56-VFQFN Exposed Pad	ADC, I2C, I2S, PWM, SPI, UART	150 Mbps		125 °C	-40 °C	2.4 GHz	ESP32-S2	-97 dBm	19.5 dBm	802.11b/g/n						63 mA	68 mA	310 mA	160 mA
Espressif Systems ESP32-PICO-MINI-02	Chassis Mount			Bluetooth, WiFi	PCB Trace	Module	I2C, I2S, SPI, UART					2.4 GHz			19.5 dBm											8 MB	2 MB
Espressif Systems ESP32-LYRAT												2.4 GHz							802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver		Board(s)
Espressif Systems ESP32-PICO-MINI-02U-N8R2	Surface Mount	3.6 V	3 V	Bluetooth, WiFi	Antenna Not Included, U.FL	53-SMD Module	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps		85 °C	-40 °C	2.4 GHz	ESP32-PICO-V3-02	-97 dBm	19.5 dBm	802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3						111 mA	117 mA	368 mA	248 mA	8 MB	536 kB	8DPSK, DQPSK	2 MB	448 kB
Espressif Systems ESP32-WROOM-32D-N8	Surface Mount	3.6 V	2.7 V	Bluetooth, WiFi	Integrated, Trace	38-SMD Module	GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps		85 °C	-40 °C		ESP32-D0WD	-98 dBm	20.5 dBm	802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3	2.5 GHz	2.4 GHz										CCK, DSSS, OFDM
Espressif Systems ESP32-WROVER-IB (8MB)	Surface Mount	3.6 V	2.7 V	Bluetooth, WiFi	PCB Trace	38-SMD Module	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps		85 °C	-40 °C		ESP32-D0WD	-98 dBm	20 dBm	802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3	2.5 GHz	2.4 GHz
Espressif Systems ESP32-WROVER(M203QL6464PH3Q0)	Surface Mount	3.6 V	2.3 V	Bluetooth, WiFi	PCB Trace	38-SMD Module	ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, SPI, UART	150 Mbps	4 MB, 8 MB	85 °C	-40 °C		ESP32-D0WDQ6	-98 dBm	18.5 dBm	802.11b/g/n, Bluetooth v4.2 + EDR	2.484 GHz	2.412 GHz										DPSK, DQPSK
