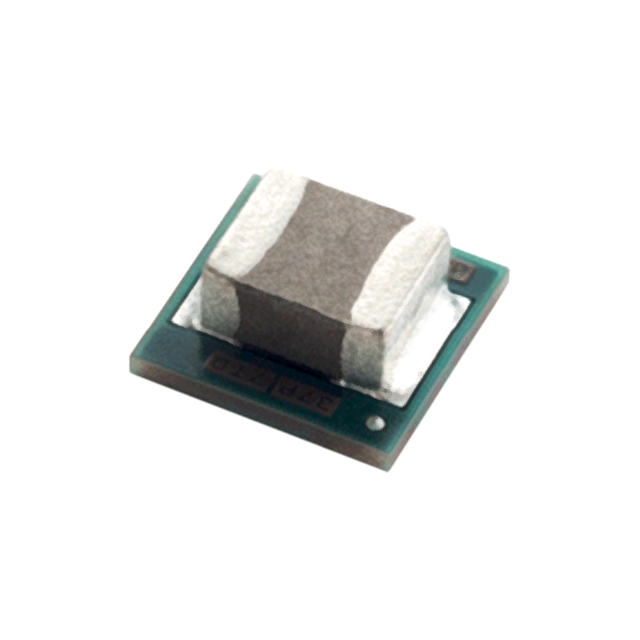

TPS82150SILR

Active

Texas Instruments

17V INPUT 1A SYNCHRONOUS STEP-DOWN CONVERTER MICROSIP&TRADE; MODULE WITH INTEGRATED INDUCTOR 8-USIP -40 TO 125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +23

TPS82150SILR

Active

Texas Instruments

17V INPUT 1A SYNCHRONOUS STEP-DOWN CONVERTER MICROSIP&TRADE; MODULE WITH INTEGRATED INDUCTOR 8-USIP -40 TO 125

Deep-Dive with AI

DocumentsDatasheet Datasheet +23

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TPS82150SILR	TPS82150 Series

Applications	ITE (Commercial)	ITE (Commercial)
Board Type	-	Fully Populated
Current - Output	-	1 A
Current - Output (Max) [Max]	1 A	1 A
Features	OTP	OTP
Main Purpose	-	DC/DC, Step Down
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outputs and Type	-	Non-Isolated
Outputs and Type	-	1
Package / Case	8-LDFN Exposed Pad, Module	8-LDFN Exposed Pad, Module
Size / Dimension [x]	0.12 in	0.12 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	0.11 in	0.11 in
Size / Dimension [y]	2.8 mm	2.8 mm
Size / Dimension [z]	0.06 in	0.06 in
Size / Dimension [z]	1.5 mm	1.5 mm
Supplied Contents	-	Board(s)
Supplier Device Package	8-uSIP (3x2.8)	8-uSIP, 8-uSIP (3x2.8)
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input	-	3 V
Voltage - Input	-	17 V
Voltage - Input (Max) [Max]	17 V	17 V
Voltage - Input (Min) [Min]	3 V	3 V
Voltage - Output	-	1.8 V
Voltage - Output 1 [Max]	6 V	6 V
Voltage - Output 1 [Min]	0.9 V	0.9 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

DigiKey	N/A	1	$ 3.78
		1	$ 3.78
		10	$ 2.63
		10	$ 2.85
		25	$ 2.62
		100	$ 2.37
		100	$ 2.37
		250	$ 2.25
		250	$ 2.24
		500	$ 2.23
		500	$ 2.17
		1000	$ 2.16
		1000	$ 2.11
		3000	$ 2.04
		3000	$ 2.13
		3000	$ 2.04
Digikey	Cut Tape (CT)	1	$ 3.92
		10	$ 3.52
		25	$ 3.33
		100	$ 2.89
		250	$ 2.74
		500	$ 2.46
		1000	$ 2.07
	Digi-Reel®	1	$ 3.92
		10	$ 3.52
		25	$ 3.33
		100	$ 2.89
		250	$ 2.74
		500	$ 2.46
		1000	$ 2.07
	Tape & Reel (TR)	3000	$ 1.97
Farnell	N/A	1	$ 4.41
		10	$ 3.34
		25	$ 3.15
		50	$ 2.95
		100	$ 2.76
		500	$ 2.47
Mouser Electronics	N/A	1	$ 3.78
		10	$ 2.63
		100	$ 2.37
		250	$ 2.25
		500	$ 2.23
		1000	$ 2.16
		3000	$ 2.13
Texas Instruments	LARGE T&R	1	$ 3.03
		100	$ 2.65
		250	$ 1.86
		1000	$ 1.50
Win Source Electronics	N/A	35	$ 1.48
		35	$ 1.48
		75	$ 1.39
		75	$ 1.39
		115	$ 1.34
		115	$ 1.34
		165	$ 1.25
		165	$ 1.25
		210	$ 1.20
		210	$ 1.20
		265	$ 1.15
		265	$ 1.15

TPS82150 Series

17V Input 1A Synchronous Step-Down Converter MicroSiP™ Module With Integrated Inductor

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Max) [Max]	Applications	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Supplier Device Package	Current - Output	Outputs and Type	Outputs and Type	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Supplied Contents	Voltage - Output
Texas Instruments TPS82150SILT The TPS82150 is a 17-V input 1-A step-down converter MicroSiP™ power module optimized for small solution size and high efficiency. The module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment. To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2.0 MHz and automatically enters Power Save Mode operation at light load currents. In Power Save Mode, the device operates with typically 20-µA quiescent current. Using the DCS-Control™ topology, the device achieves excellent load transient performance and accurate output voltage regulation. The TPS82150 is a 17-V input 1-A step-down converter MicroSiP™ power module optimized for small solution size and high efficiency. The module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment. To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2.0 MHz and automatically enters Power Save Mode operation at light load currents. In Power Save Mode, the device operates with typically 20-µA quiescent current. Using the DCS-Control™ topology, the device achieves excellent load transient performance and accurate output voltage regulation.	Non-Isolated PoL Module	125 °C	-40 °C	0.9 V	6 V	17 V	ITE (Commercial)	OTP	0.11 in	0.12 in	3 mm	0.06 in	1.5 mm	2.8 mm	Surface Mount	8-LDFN Exposed Pad, Module	1	1 A	3 V	8-uSIP
Texas Instruments TPS82150SILR The TPS82150 is a 17-V input 1-A step-down converter MicroSiP™ power module optimized for small solution size and high efficiency. The module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment. To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2.0 MHz and automatically enters Power Save Mode operation at light load currents. In Power Save Mode, the device operates with typically 20-µA quiescent current. Using the DCS-Control™ topology, the device achieves excellent load transient performance and accurate output voltage regulation. The TPS82150 is a 17-V input 1-A step-down converter MicroSiP™ power module optimized for small solution size and high efficiency. The module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment. To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2.0 MHz and automatically enters Power Save Mode operation at light load currents. In Power Save Mode, the device operates with typically 20-µA quiescent current. Using the DCS-Control™ topology, the device achieves excellent load transient performance and accurate output voltage regulation.	Non-Isolated PoL Module	125 °C	-40 °C	0.9 V	6 V	17 V	ITE (Commercial)	OTP	0.11 in	0.12 in	3 mm	0.06 in	1.5 mm	2.8 mm	Surface Mount	8-LDFN Exposed Pad, Module	1	1 A	3 V	8-uSIP (3x2.8)
Texas Instruments TPS82150EVM-720 TPS82150 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board																					1 A	Non-Isolated	1	Fully Populated	3 V	17 V	DC/DC, Step Down	Board(s)	1.8 V

Description

General part information

TPS82150 Series

The TPS82150 is a 17-V input 1-A step-down converter MicroSiP™ power module optimized for small solution size and high efficiency. The module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment.

To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2.0 MHz and automatically enters Power Save Mode operation at light load currents. In Power Save Mode, the device operates with typically 20-µA quiescent current. Using the DCS-Control™ topology, the device achieves excellent load transient performance and accurate output voltage regulation.
