XM1110 DEV KIT_6001187

Obsolete

Sierra Wireless

XM1110 AIRPRIME DEV KIT

Search across all available documentation for this part.

Obsolete

Sierra Wireless

XM1110 AIRPRIME DEV KIT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XM1110 DEV KIT_6001187	XM1110 Series

Antenna Connector	-	Castellation
Applications	-	General Purpose
Current - Receiving	-	28 - 32 mA
Data Interface	-	I2C, SPI, UART
Data Rate (Max)	-	9.6 kbps
For Use With/Related Products	XM1110, MT3333	XM1110, MT3333
Frequency	-	1.598 GHz
Frequency	-	1.575 GHz
Frequency	-	1.605 GHz
Modulation or Protocol	-	GLONASS, GPS, GNSS
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	20-QFN, 20-SMD Module, Module
Sensitivity	-	-165 dBm
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	Module
Type	GPS, GLONASS, Beidou, GNSS	GPS, GLONASS, Beidou, GNSS
Voltage - Supply	-	3.3 V
Voltage - Supply	-	4.3 V
Voltage - Supply	-	3 V

XM1110 AIRPRIME DEV KIT

Part	Supplied Contents	For Use With/Related Products	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Data Interface	Modulation or Protocol	Current - Receiving	Sensitivity	Applications	Mounting Type	Antenna Connector	Frequency [Min]	Frequency	Frequency [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Data Rate (Max)
Sierra Wireless XM1110 DEV KIT_6001187	Board(s)	MT3333, XM1110	Beidou, GLONASS, GNSS, GPS
Sierra Wireless XM1110_1103586				20-QFN	85 °C	-40 °C	3.3 V	I2C, SPI	GLONASS, GPS	28 mA	-165 dBm	General Purpose	Surface Mount	Castellation	1.598 GHz	1.575 GHz	1.605 GHz
Sierra Wireless XM1110_1103886				20-SMD Module	85 °C	-40 °C		I2C, SPI, UART	GLONASS, GPS	32 mA	-165 dBm	General Purpose	Surface Mount	Castellation	1.598 GHz	1.575 GHz	1.605 GHz	4.3 V	3 V	Module
Sierra Wireless XM1110_1103912				Module	85 °C	-40 °C		I2C, SPI, UART	GLONASS, GNSS, GPS	30 mA	-165 dBm	General Purpose	Surface Mount	Castellation	1.598 GHz	1.575 GHz	1.605 GHz	4.3 V	3 V		9.6 kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 61.86

General part information

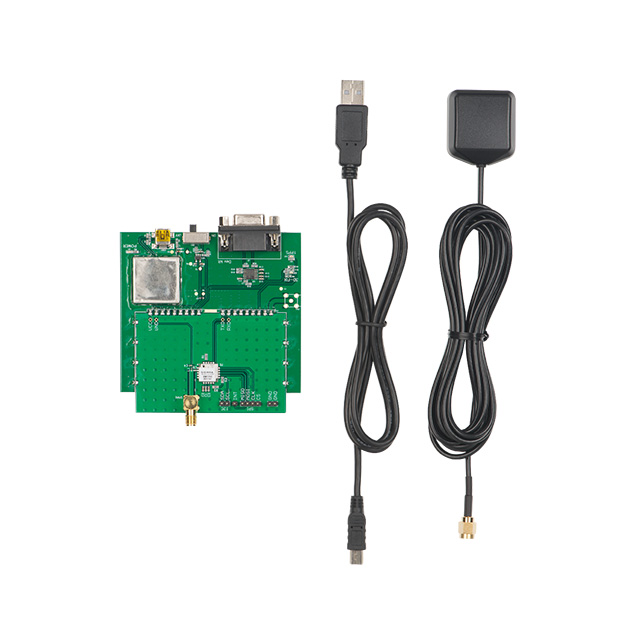

XM - AirPrime® MT3333, XM1110 GNSS (Beidou, GLONASS, GPS) Evaluation Board
