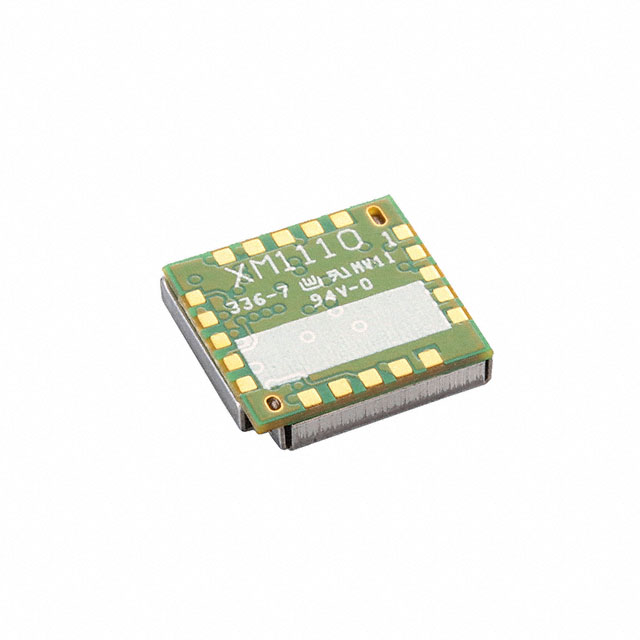

XM1110_1103886

Obsolete

Sierra Wireless

RF RX GLONASS 1.575GHZ MODULE

Search across all available documentation for this part.

Obsolete

Sierra Wireless

RF RX GLONASS 1.575GHZ MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

XM - AirPrime® RF Receiver GLONASS, GPS 1.575GHz, 1.598GHz ~ 1.605GHz -165dBm Castellation Module

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	XM1110_1103886	XM1110 Series

Antenna Connector	Castellation	Castellation
Applications	General Purpose	General Purpose
Current - Receiving	32 mA	28 - 32 mA
Data Interface	UART, SPI, I2C	I2C, SPI, UART
Data Rate (Max)	-	9.6 kbps
For Use With/Related Products	-	XM1110, MT3333
Frequency	1.575 GHz	1.575 GHz
Frequency [Max]	1.605 GHz	1.605 GHz
Frequency [Min]	1.598 GHz	1.598 GHz
Modulation or Protocol	GLONASS, GPS	GLONASS, GPS, GNSS
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	20-SMD Module	20-QFN, 20-SMD Module, Module
Sensitivity	-165 dBm	-165 dBm
Supplied Contents	-	Board(s)
Supplier Device Package	Module	Module
Type	-	GPS, GLONASS, Beidou, GNSS
Voltage - Supply	-	3.3 V
Voltage - Supply [Max]	4.3 V	4.3 V
Voltage - Supply [Min]	3 V	3 V

XM1110 AIRPRIME DEV KIT

Part	Supplied Contents	For Use With/Related Products	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Data Interface	Modulation or Protocol	Current - Receiving	Sensitivity	Applications	Mounting Type	Antenna Connector	Frequency [Min]	Frequency	Frequency [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Data Rate (Max)
Sierra Wireless XM1110 DEV KIT_6001187	Board(s)	MT3333, XM1110	Beidou, GLONASS, GNSS, GPS
Sierra Wireless XM1110_1103586				20-QFN	85 °C	-40 °C	3.3 V	I2C, SPI	GLONASS, GPS	28 mA	-165 dBm	General Purpose	Surface Mount	Castellation	1.598 GHz	1.575 GHz	1.605 GHz
Sierra Wireless XM1110_1103886				20-SMD Module	85 °C	-40 °C		I2C, SPI, UART	GLONASS, GPS	32 mA	-165 dBm	General Purpose	Surface Mount	Castellation	1.598 GHz	1.575 GHz	1.605 GHz	4.3 V	3 V	Module
Sierra Wireless XM1110_1103912				Module	85 °C	-40 °C		I2C, SPI, UART	GLONASS, GNSS, GPS	30 mA	-165 dBm	General Purpose	Surface Mount	Castellation	1.598 GHz	1.575 GHz	1.605 GHz	4.3 V	3 V		9.6 kbps
