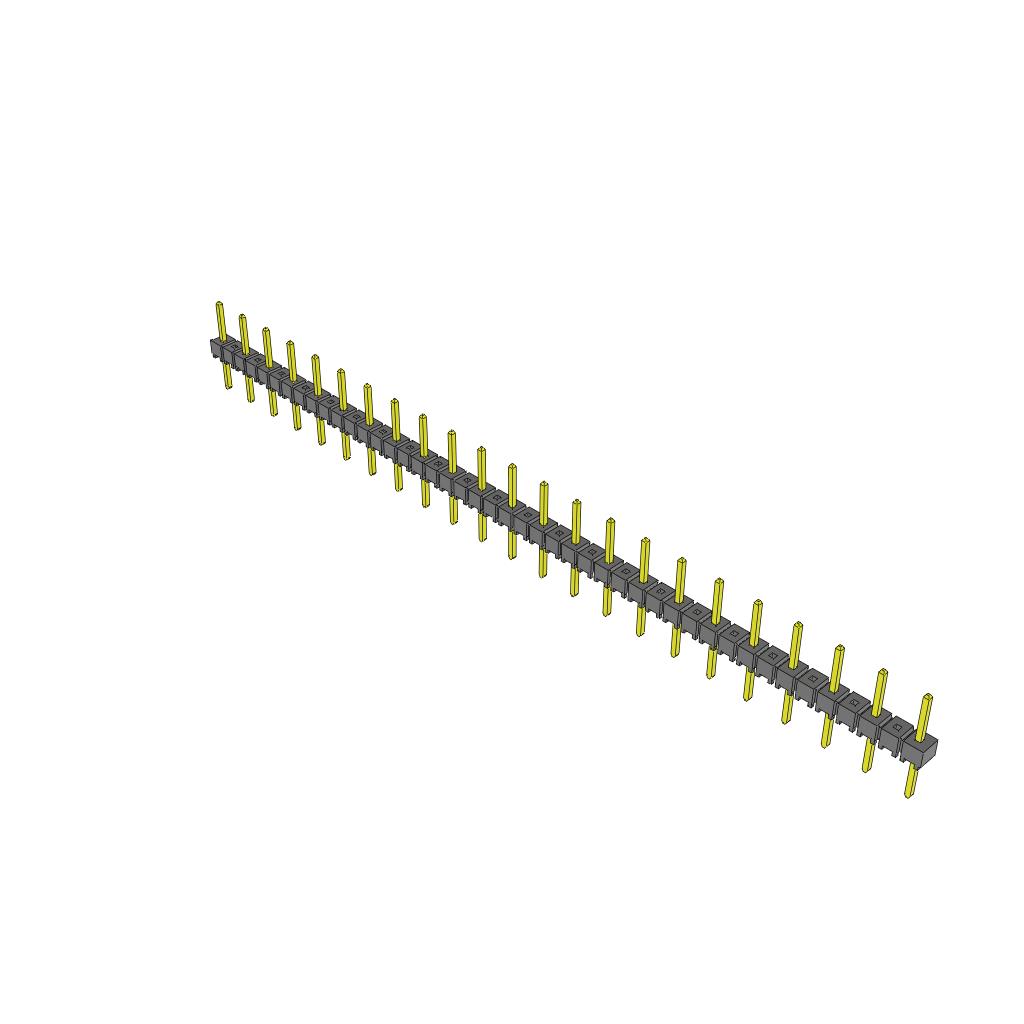

TSW-223-08-T-S

Active

Samtec Inc.

CONN HDR .200" 23POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR .200" 23POS

Technical Specifications

Parameters and characteristics for this part

Specification	TSW-223-08-T-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	5.08 mm
Contact Length - Post [x]	0.2 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	23
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	13.46 mm
Overall Contact Length	0.53 in
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Contact Finish - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Length - Mating [x]	Contact Length - Mating	Style	Fastening Type	Shrouding	Material Flammability Rating	Mounting Type	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Shape	Number of Rows	Insulation Height	Insulation Height	Number of Positions Loaded
Samtec Inc. TSW-223-08-G-D	Gold	Phosphor Bronze	10 çin	0.25 çm	46	5.08 mm	0.2 in	5.08 mm	0.2 in	Polybutylene Terephthalate (PBT)	Male Pin	-55 °C	125 °C	Header	Black	3 µin	0.076 µm	Solder	0.23 in	5.84 mm	Board to Board Cable	Push-Pull	Unshrouded	UL94 V-0	Through Hole	13.46 mm	0.53 in	2.54 mm	0.1 in	Gold	Square	2	0.1 in	2.54 mm	All
Samtec Inc. TSW-223-08-T-S		Phosphor Bronze			23	5.08 mm	0.2 in	5.08 mm	0.2 in	Polybutylene Terephthalate (PBT)	Male Pin	-55 °C	105 ░C	Header	Black			Solder	0.23 in	5.84 mm	Board to Board Cable	Push-Pull	Unshrouded	UL94 V-0	Through Hole	13.46 mm	0.53 in			Tin	Square	1	0.1 in	2.54 mm	All
