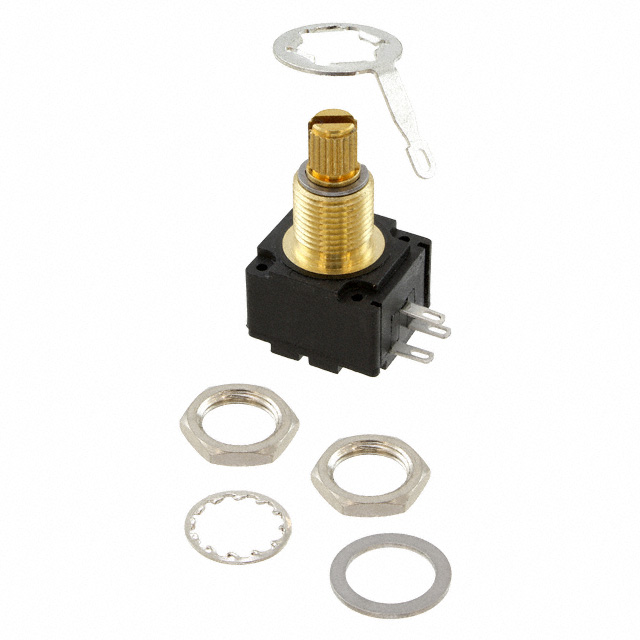

Specification	95A1D-Z28-EA0/318L

Actuator Diameter	0.235 in
Actuator Length	0.685 in
Actuator Type	Knurled and Slotted
Adjustment Type	User Defined
Built in Switch	None
Bushing Thread	3/8-32
Mounting Type	Panel Mount
Number of Gangs	1
Number of Turns	1 turns
Power (Watts)	250 mW
Power (Watts) Options	1/4W
Resistance	50 kOhm
Resistive Material	Conductive Plastic
Rotation	300 °
Size - Body Face Length	0.687 in
Size - Body Face Width	0.625 in
Size - Body Shape	Rectangular
Taper	Logarithmic
Temperature Coefficient	1000 ppm/°C
Temperature Coefficient (Highest)	1000 ppm/°C
Temperature Coefficient (Lowest)	-1000 ppm/°C
Termination Style	Solder Lug
Tolerance	20 %

95A1D Series

Part	Built in Switch	Resistance	Actuator Length	Actuator Diameter	Taper	Resistive Material	Bushing Thread	Temperature Coefficient (Highest)	Temperature Coefficient	Temperature Coefficient (Lowest)	Tolerance	Number of Turns	Rotation	Mounting Type	Termination Style	Power (Watts)	Power (Watts) Options	Number of Gangs	Adjustment Type	Actuator Type	Size - Body Face Width	Size - Body Shape	Size - Body Face Length
Bourns Inc. 95A1D-Z28-EA0/303L	None	500 kOhm	0.875 in	0.236 in	Logarithmic	Conductive Plastic	3/8-32	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	20 %	1 turns	300 °	Panel Mount	Solder Lug	250 mW	1/4W	1	User Defined	Round	0.625 in	Rectangular	0.687 in
Bourns Inc. 95A1D-Z28-EA0/301L	None	250 kOhm	0.875 in	0.236 in	Logarithmic	Conductive Plastic	3/8-32	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	20 %	1 turns	300 °	Panel Mount	Solder Lug	250 mW	1/4W	1	User Defined	Round	0.625 in	Rectangular	0.687 in
Bourns Inc. 95A1D-B28-A13L	None	5 kOhm	0.875 in	6.35 mm	Linear	Cermet	3/8-32		150 ppm/¯C		10 %	1 turns	300 °	Panel Mount	Solder Lug	2 w		1	User Defined	Slotted	0.625 in	Rectangular	0.687 in
Bourns Inc. 95A1D-Z28-EA0/317L	None	25 kOhm	0.685 in	0.235 in	Logarithmic	Conductive Plastic	3/8-32	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	20 %	1 turns	300 °	Panel Mount	Solder Lug	250 mW	1/4W	1	User Defined	Knurled and Slotted	0.625 in	Rectangular	0.687 in
Bourns Inc. 95A1D-Z28-EA0/318L	None	50 kOhm	0.685 in	0.235 in	Logarithmic	Conductive Plastic	3/8-32	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	20 %	1 turns	300 °	Panel Mount	Solder Lug	250 mW	1/4W	1	User Defined	Knurled and Slotted	0.625 in	Rectangular	0.687 in
