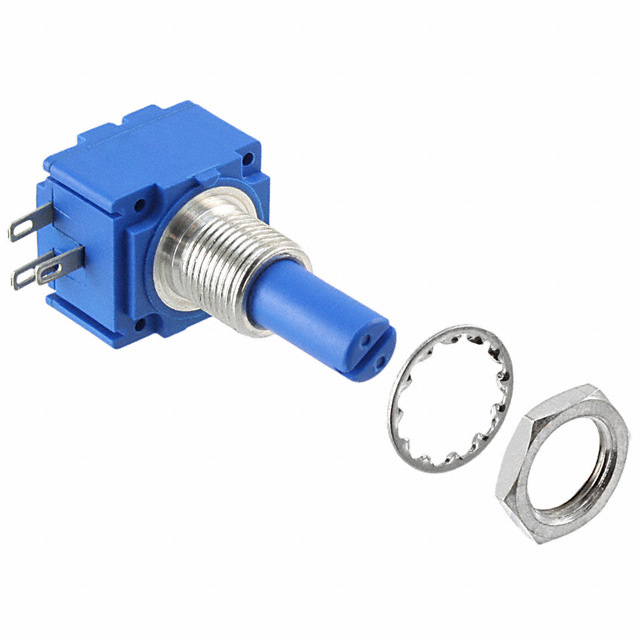

95A1D-B28-A13L

Active

Bourns Inc.

POT 5K OHM 2W CERMET LINEAR

Search across all available documentation for this part.

Active

Bourns Inc.

POT 5K OHM 2W CERMET LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Bushing Thread	Taper	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Type	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Resistive Material	Power (Watts)	Power (Watts)	Adjustment Type	Actuator Length [z]	Actuator Length [z]	Rotation	Number of Gangs	Tolerance	Resistance (Ohms)	Temperature Coefficient	Termination Style	Number of Turns	Resistance (Ohms)	Actuator Diameter	Actuator Length [x]	Actuator Length [x]
Bourns Inc. 95A1D-Z28-EA0/303L	3/8-32	Logarithmic	0.236 in	6 mm	Round	0.687 in	0.625 in	17.45 mm	15.88 mm	Conductive Plastic	0.25 W	250 mW	User Defined	22.23 mm	0.875 in	300 ░	1	20 %	500 kOhms	1000 ppm/°C	Solder Lug	1
Bourns Inc. 95A1D-Z28-EA0/301L	3/8-32	Logarithmic	0.236 in	6 mm	Round	0.687 in	0.625 in	17.45 mm	15.88 mm	Conductive Plastic	0.25 W	250 mW	User Defined	22.23 mm	0.875 in	300 ░	1	20 %		1000 ppm/°C	Solder Lug	1	250k
Bourns Inc. 95A1D-B28-A13L	3/8-32	Linear	0.25 in		Slotted	0.687 in	0.625 in	17.45 mm	15.88 mm	Cermet		2 W	User Defined	22.23 mm	0.875 in	300 ░	1	10 %	5 kOhms	150 ppm/°C	Solder Lug	1		6.35 mm
Bourns Inc. 95A1D-Z28-EA0/317L	3/8-32	Logarithmic	0.235 in	5.97 mm	Knurled and Slotted	0.687 in	0.625 in	17.45 mm	15.88 mm	Conductive Plastic	0.25 W	250 mW	User Defined			300 ░	1	20 %		1000 ppm/°C	Solder Lug	1	25k		0.685 in	17.4 mm
Bourns Inc. 95A1D-Z28-EA0/318L	3/8-32	Logarithmic	0.235 in	5.97 mm	Knurled and Slotted	0.687 in	0.625 in	17.45 mm	15.88 mm	Conductive Plastic	0.25 W	250 mW	User Defined			300 ░	1	20 %	50 kOhms	1000 ppm/°C	Solder Lug	1			0.685 in	17.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Cermet 2W Solder Lug
