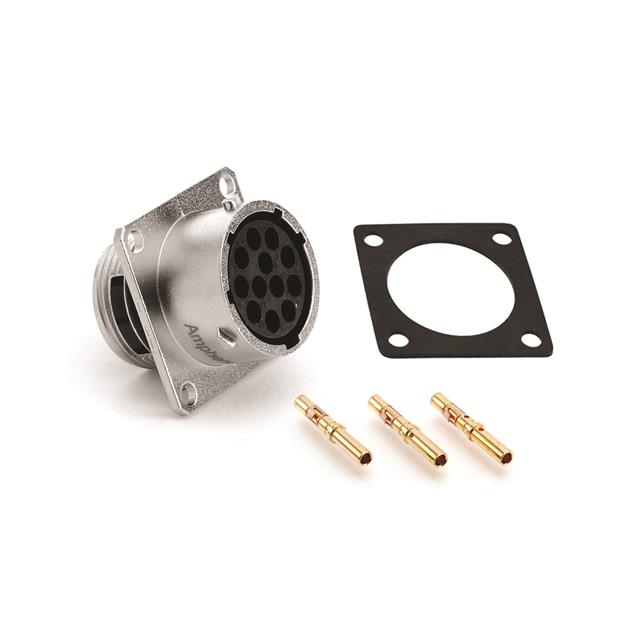

RT00147SNH-K

Active

Amphenol Sine Systems Corp

RECEPTACLE KIT, SQUARE FLANGE, 7

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

RECEPTACLE KIT, SQUARE FLANGE, 7

Technical Specifications

Parameters and characteristics for this part

Specification	RT00147SNH-K

Applications	Automation, Aerospace, Telecom, Industrial, Transportation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	7
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

Part	Contact Shape	Shell Finish	Contact Type	Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Mounting Feature	Connector Type	Shell Material	Housing Color	Material Flammability Rating	Orientation	Number of Positions	Ingress Protection	Note	Features	Shielding	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Size	Fastening Type	Termination	Voltage Rating	Applications	Current Rating (Amps)	Contact Finish - Mating	Color
Amphenol Sine Systems Corp RT00147SNHEC03R	Circular	Nickel	Crimp	For Female Sockets	14	7	Flange	Receptacle Housing	Zinc Alloy	Silver	UL94 V-0	N	7	IP67 - Dust Tight Waterproof	Contacts Not Included	Backshell	Shielded	Thermoplastic	125 °C	-40 °C	16	Bayonet Lock
Amphenol Sine Systems Corp RT00147PNH03	Circular	Nickel	Crimp	For Male Pins	14	7	Flange	Receptacle Housing	Zinc Alloy	Silver	UL94 V-0	N	7	IP67 - Dust Tight Waterproof	Contacts Not Included		Shielded	Thermoplastic	125 °C	-40 °C	16	Bayonet Lock
Amphenol Sine Systems Corp RT00147SNH-K		Nickel			14	7	Flange	Receptacle Female Sockets	Zinc Alloy		UL94 V-0	N	7	IP67 - Dust Tight Waterproof			Shielded	Thermoplastic	105 ░C	-40 °C		Bayonet Lock	Crimp	500 VAC	Aerospace Automation Industrial Telecom Transportation	13 A	Gold	Silver
Amphenol Sine Systems Corp RT00147PNHECR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Crimp
