RT00147PNH03

Active

Amphenol Sine Systems Corp

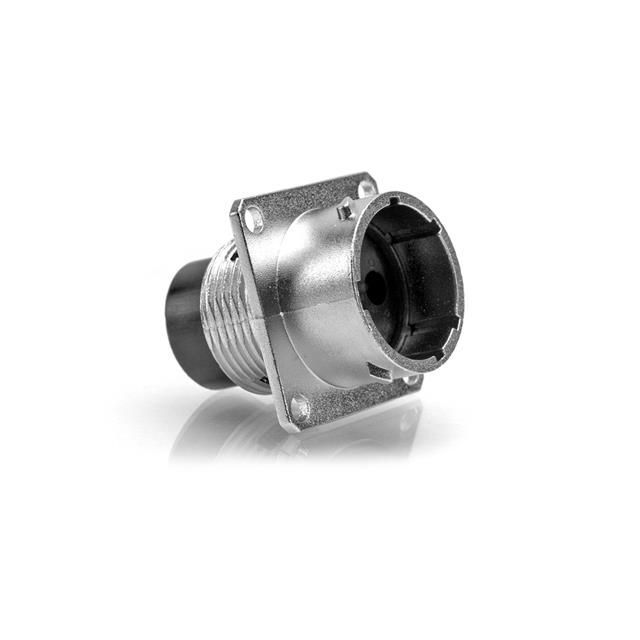

RECEPTACLE, SQUARE FLANGE, 7 POS

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

RECEPTACLE, SQUARE FLANGE, 7 POS

Technical Specifications

Parameters and characteristics for this part

Specification	RT00147PNH03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	7
Shielding	Shielded
Type	For Male Pins

Part	Contact Shape	Shell Finish	Contact Type	Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Mounting Feature	Connector Type	Shell Material	Housing Color	Material Flammability Rating	Orientation	Number of Positions	Ingress Protection	Note	Features	Shielding	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Size	Fastening Type	Termination	Voltage Rating	Applications	Current Rating (Amps)	Contact Finish - Mating	Color
Amphenol Sine Systems Corp RT00147SNHEC03R	Circular	Nickel	Crimp	For Female Sockets	14	7	Flange	Receptacle Housing	Zinc Alloy	Silver	UL94 V-0	N	7	IP67 - Dust Tight Waterproof	Contacts Not Included	Backshell	Shielded	Thermoplastic	125 °C	-40 °C	16	Bayonet Lock
Amphenol Sine Systems Corp RT00147PNH03	Circular	Nickel	Crimp	For Male Pins	14	7	Flange	Receptacle Housing	Zinc Alloy	Silver	UL94 V-0	N	7	IP67 - Dust Tight Waterproof	Contacts Not Included		Shielded	Thermoplastic	125 °C	-40 °C	16	Bayonet Lock
Amphenol Sine Systems Corp RT00147SNH-K		Nickel			14	7	Flange	Receptacle Female Sockets	Zinc Alloy		UL94 V-0	N	7	IP67 - Dust Tight Waterproof			Shielded	Thermoplastic	105 ░C	-40 °C		Bayonet Lock	Crimp	500 VAC	Aerospace Automation Industrial Telecom Transportation	13 A	Gold	Silver
Amphenol Sine Systems Corp RT00147PNHECR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 11.25

General part information

7 Position Circular Connector Receptacle Housing Panel Mount
