1944-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

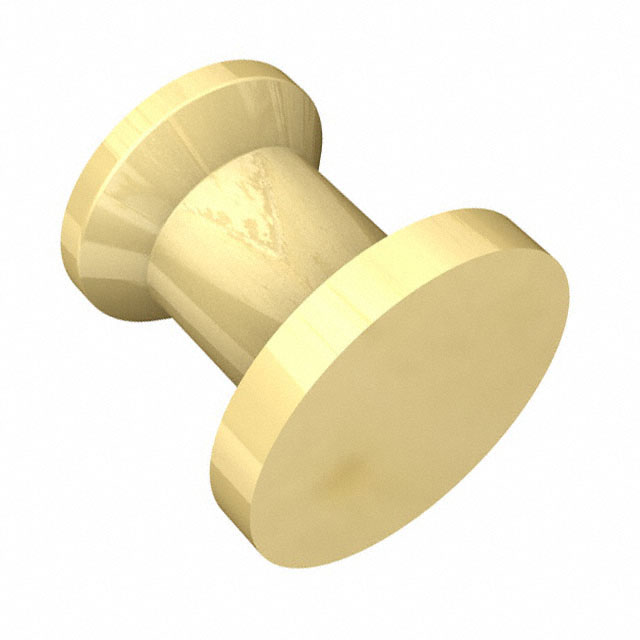

TARGET PIN SMT FLAT FACE
Deep-Dive with AI
Search across all available documentation for this part.
1944-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
TARGET PIN SMT FLAT FACE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1944-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 2.54 mm |
| Length - Above Flange [x] | 0.1 in |
| Length - Overall [x] | 0.12 in |
| Length - Overall [x] | 3.05 mm |
| Mounting Hole Diameter [diameter] | 2.79 mm |
| Mounting Hole Diameter [diameter] | 0.11 in |
| Mounting Type | Surface Mount |
| Pin Size - Above Flange [diameter] | 1.7 mm |
| Pin Size - Above Flange [diameter] | 0.067 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.23 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.10 | |||
Description
General part information
1944-0 Series
PC Pin Terminal Connector Surface Mount Gold 0.067" (1.70mm) Dia
