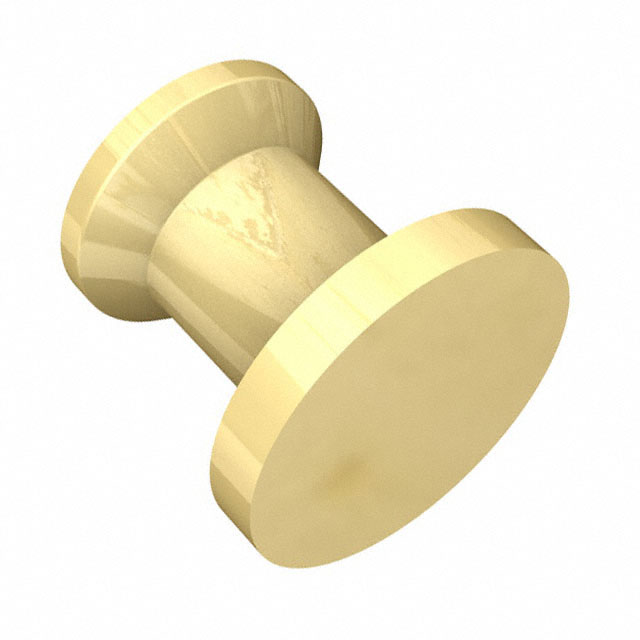

TARGET PIN SMT FLAT FACE
| Part | Length - Overall [x] | Length - Overall [x] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Termination | Insulation | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Contact Material | Mounting Type | Terminal Type | Flange Diameter | Flange Diameter [diameter] | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 0.12 in | 3.05 mm | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1.7 mm | 0.067 in | Solder | Non-Insulated | 2.79 mm | 0.11 in | Gold | Brass Alloy | Surface Mount | PC Pin | 3.18 mm | 0.125 in | Single End |
