AWG28-10/F/300

Active

Assmann WSW Components

CBL RIBN 10COND 0.05 MULTI 300'

Search across all available documentation for this part.

Active

Assmann WSW Components

CBL RIBN 10COND 0.05 MULTI 300'

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Ribbon Thickness	Ribbon Thickness	Conductor Material	Length	Wire Gauge	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	First Conductor Mark	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Spool Size	Spool Size	Voltage	Shielding	Number of Conductors	Insulation Resistance	Jacket (Insulation) Material	Jacket Color	Ribbon Width [custom]	Ribbon Width [custom]	Ratings	Operating Temperature
Assmann WSW Components AWG28-10/G/300	7.62 m 15.24 m 91.44 m	25 ft 50 ft 300 ft	0.89 mm	0.035 in	Copper Tinned	Enter Number of Feet in Order Quantity	28 AWG	10 ft 100 ft	3.05 m 30.48 m	105 ░C	-10 °C	0.05 in	1.27 mm	Red	Flat Cable	7	36 AWG	300 ft	91.44 m	300 V	Unshielded	10	100 MOhms	Poly-Vinyl Chloride (PVC)	Gray	0.5 "	12.7 mm	UL Style 2651
Assmann WSW Components AWG28-10/F-1/300	7.62 m	25 ft	0.89 mm	0.035 in	Copper Tinned	Enter Number of Feet in Order Quantity	28 AWG	10 ft	3.05 m	105 ░C	-10 °C	0.039 in	1 mm		Flat Cable	7	36 AWG	300 ft	91.44 m	300 V	Unshielded	10	100 MOhms	Poly-Vinyl Chloride (PVC)	Multiple	0.394 in	10 mm	UL Style 2651
Assmann WSW Components AWG28-10/F/300	7.62 m 91.44 m	25 ft 300 ft	0.89 mm	0.035 in	Copper Tinned		28 AWG	10 ft	3.05 m			0.05 in	1.27 mm	Red	Flat Cable	7	36 AWG			300 V	Unshielded	10	100 MOhms	Poly-Vinyl Chloride (PVC)	Multiple	0.5 "	12.7 mm	UL Style 2651	105 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

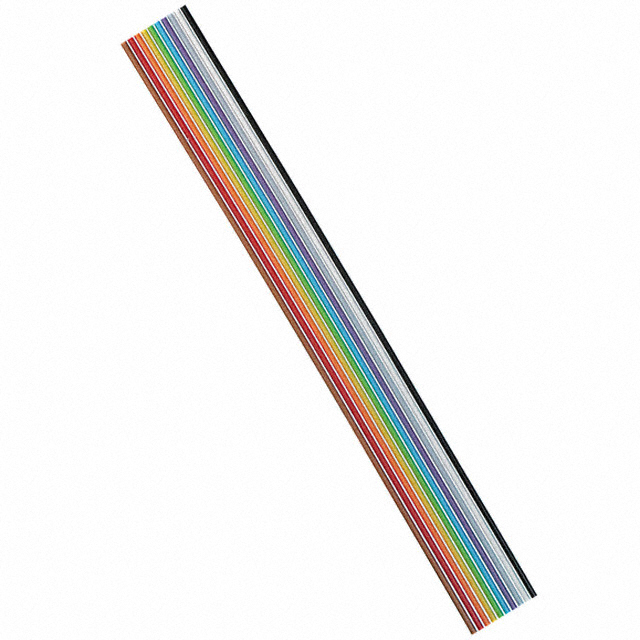

Flat Ribbon Cable Multiple 10 Conductors 0.050" (1.27mm) Flat Cable 300.0' (91.44m)
