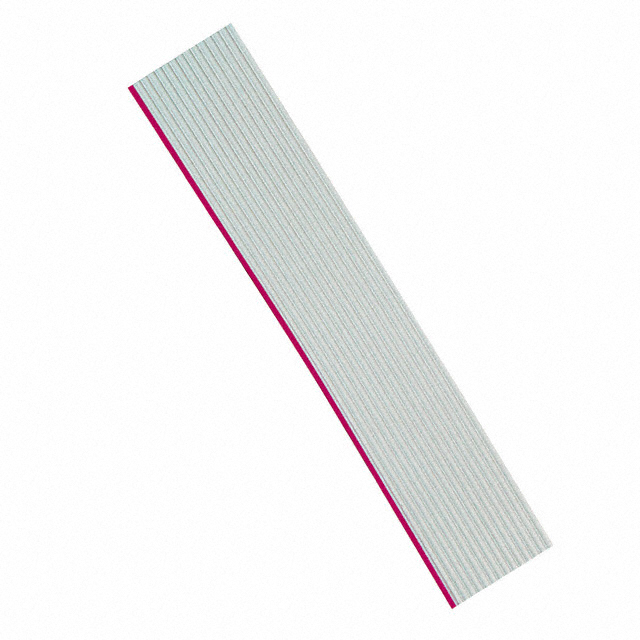

AWG28-10/G/300

Active

Assmann WSW Components

CBL RIBN 10COND 0.05 GRY FEET

Search across all available documentation for this part.

Active

Assmann WSW Components

CBL RIBN 10COND 0.05 GRY FEET

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-10/G/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m, 91.44 m, 7.62 m
Length	50 ft, 300 ft, 25 ft
Length	Enter Number of Feet in Order Quantity
Length [x]	100 ft, 10 ft
Length [x]	30.48 m, 3.05 m
Number of Conductors	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [custom]	0.5 "
Ribbon Width [custom]	12.7 mm
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Length	Length	Ribbon Thickness	Ribbon Thickness	Conductor Material	Length	Wire Gauge	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	First Conductor Mark	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Spool Size	Spool Size	Voltage	Shielding	Number of Conductors	Insulation Resistance	Jacket (Insulation) Material	Jacket Color	Ribbon Width [custom]	Ribbon Width [custom]	Ratings	Operating Temperature
Assmann WSW Components AWG28-10/G/300	7.62 m 15.24 m 91.44 m	25 ft 50 ft 300 ft	0.89 mm	0.035 in	Copper Tinned	Enter Number of Feet in Order Quantity	28 AWG	10 ft 100 ft	3.05 m 30.48 m	105 ░C	-10 °C	0.05 in	1.27 mm	Red	Flat Cable	7	36 AWG	300 ft	91.44 m	300 V	Unshielded	10	100 MOhms	Poly-Vinyl Chloride (PVC)	Gray	0.5 "	12.7 mm	UL Style 2651
Assmann WSW Components AWG28-10/F-1/300	7.62 m	25 ft	0.89 mm	0.035 in	Copper Tinned	Enter Number of Feet in Order Quantity	28 AWG	10 ft	3.05 m	105 ░C	-10 °C	0.039 in	1 mm		Flat Cable	7	36 AWG	300 ft	91.44 m	300 V	Unshielded	10	100 MOhms	Poly-Vinyl Chloride (PVC)	Multiple	0.394 in	10 mm	UL Style 2651
Assmann WSW Components AWG28-10/F/300	7.62 m 91.44 m	25 ft 300 ft	0.89 mm	0.035 in	Copper Tinned		28 AWG	10 ft	3.05 m			0.05 in	1.27 mm	Red	Flat Cable	7	36 AWG			300 V	Unshielded	10	100 MOhms	Poly-Vinyl Chloride (PVC)	Multiple	0.5 "	12.7 mm	UL Style 2651	105 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Gray 10 Conductors 0.050" (1.27mm) Flat Cable Enter Number of Feet in Order Quantity
