2FAA01-73

Active

Carling Technologies

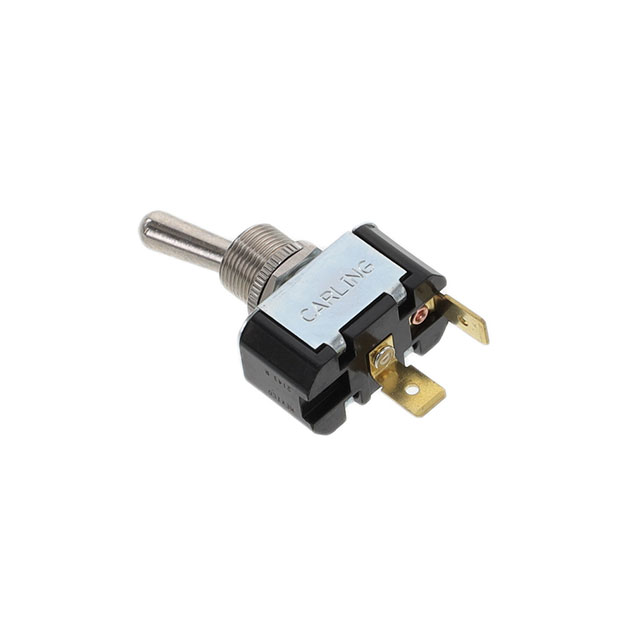

SWITCH TOGGLE SPST 20A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE SPST 20A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2FAA01-73	2FAA01 Series

	-	-
Actuator Length [x]	17.45 mm	14.28 - 17.45 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	SPST	SPST
Current Rating (Amps)	20 A	20 A
Electrical Life	50000 Cycles	50000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	65.6 °C	65.6 °C
Operating Temperature [Min]	-17.8 °C	-17.8 °C
Panel Cutout Dimensions [diameter]	12.7 mm	12.7 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Wire Leads, Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH TOGGLE

Part	Illumination	Actuator Length [x]	Electrical Life	Panel Cutout Dimensions [diameter]	Bushing Thread	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Termination Style	Current Rating (Amps)	Voltage Rating - AC
Carling Technologies 2FAA01-73/END TABS
Carling Technologies 2FAA01-78	Non-Illuminated	17.45 mm	50000 Cycles	12.7 mm	15/32-32	SPST	65.6 °C	-17.8 °C	On-Off	Standard Round	Wire Leads
Carling Technologies 2FAA01-73	Non-Illuminated	17.45 mm	50000 Cycles	12.7 mm	15/32-32	SPST	65.6 °C	-17.8 °C	On-Off	Standard Round	Quick Connect - 0.250" (6.3mm)	20 A	125 V
Carling Technologies 2FAA01-78/272-06747
Carling Technologies 2FAA01-63	Non-Illuminated	14.28 mm	50000 Cycles	12.7 mm	15/32-32	SPST	65.6 °C	-17.8 °C	On-Off	Standard Round	Wire Leads
Carling Technologies 2FAA01-73/272-06747	Non-Illuminated	17.45 mm	50000 Cycles	12.7 mm	15/32-32	SPST	65.6 °C	-17.8 °C	On-Off	Standard Round	Wire Leads
Carling Technologies 2FAA01-63/NO HDW	Non-Illuminated	14.28 mm	50000 Cycles	12.7 mm	15/32-32	SPST	65.6 °C	-17.8 °C	On-Off	Standard Round	Wire Leads
Carling Technologies 2FAA01-62/2 HEX	Non-Illuminated		50000 Cycles	12.7 mm	15/32-32	SPST	65.6 °C	-17.8 °C	On-Off		Wire Leads
Carling Technologies 2FAA01-73/NO HDW
