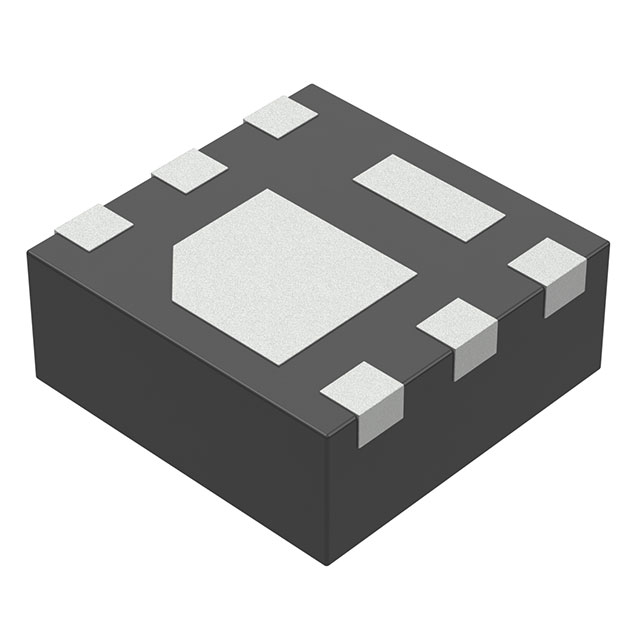

CSD13202Q2
Active12-V, N CHANNEL NEXFET™ POWER MOSFET, SINGLE SON 2 MM X 2 MM, 9.3 MOHM 6-WSON -55 TO 150
Deep-Dive with AI
Search across all available documentation for this part.
CSD13202Q2
Active12-V, N CHANNEL NEXFET™ POWER MOSFET, SINGLE SON 2 MM X 2 MM, 9.3 MOHM 6-WSON -55 TO 150
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CSD13202Q2 | CSD13202 Series |
|---|---|---|
| Current - Continuous Drain (Id) @ 25°C | 22 A | 22 A |
| Drain to Source Voltage (Vdss) | 12 V | 12 V |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5 V, 4.5 V | 2.5 - 4.5 V |
| FET Type | N-Channel | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 6.6 nC | 6.6 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 997 pF | 997 pF |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Power Dissipation (Max) [Max] | 2.7 W | 2.7 W |
| Rds On (Max) @ Id, Vgs | 9.3 mOhm | 9.3 mOhm |
| Supplier Device Package | 6-WSON (2x2) | 6-WSON (2x2) |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Vgs (Max) | 8 V | 8 V |
| Vgs(th) (Max) @ Id | 1.1 V | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 1 | $ 0.14 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.14 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.13 | |||
| Chip1Stop | N/A | 5 | $ 0.13 | |
| 50 | $ 0.12 | |||
| 100 | $ 0.12 | |||
| 200 | $ 0.12 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.12 | |||
| 3000 | $ 0.11 | |||
| DigiKey | N/A | 1 | $ 0.85 | |
| 10 | $ 0.53 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.23 | |||
| 3000 | $ 0.18 | |||
| 6000 | $ 0.17 | |||
| 9000 | $ 0.16 | |||
| 15000 | $ 0.16 | |||
| Digikey | Cut Tape (CT) | 1 | $ 0.56 | |
| 10 | $ 0.48 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.56 | ||
| 10 | $ 0.48 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| Tape & Reel (TR) | 3000 | $ 0.17 | ||
| 6000 | $ 0.16 | |||
| 9000 | $ 0.16 | |||
| Farnell | N/A | 1 | $ 0.52 | |
| 10 | $ 0.44 | |||
| 100 | $ 0.29 | |||
| 100 | $ 0.29 | |||
| 500 | $ 0.23 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.20 | |||
| 1000 | $ 0.20 | |||
| 5000 | $ 0.17 | |||
| 5000 | $ 0.17 | |||
| LCSC | N/A | 5 | $ 0.24 | |
| 50 | $ 0.19 | |||
| 150 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| Mouser Electronics | N/A | 1 | $ 0.50 | |
| 10 | $ 0.38 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.19 | |||
| 3000 | $ 0.16 | |||
| 9000 | $ 0.15 | |||
| 24000 | $ 0.15 | |||
| 45000 | $ 0.15 | |||
| Texas Instruments | LARGE T&R | 1 | $ 0.26 | |
| 100 | $ 0.17 | |||
| 250 | $ 0.13 | |||
| 1000 | $ 0.09 | |||
| Verical | N/A | 37 | $ 0.13 | |
CSD13202 Series
PROTOTYPE
| Part | Technology | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drain to Source Voltage (Vdss) | Vgs(th) (Max) @ Id | Power Dissipation (Max) [Max] | Rds On (Max) @ Id, Vgs | Drive Voltage (Max Rds On, Min Rds On) | Vgs (Max) | Mounting Type | FET Type | Gate Charge (Qg) (Max) @ Vgs | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Current - Continuous Drain (Id) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CSD13202Q2T | MOSFET (Metal Oxide) | 997 pF | 12 V | 1.1 V | 2.7 W | 9.3 mOhm | 2.5 V, 4.5 V | 8 V | Surface Mount | N-Channel | 6.6 nC | 150 °C | -55 °C | 6-WSON (2x2) | |
Texas Instruments CSD13202Q2 | MOSFET (Metal Oxide) | 997 pF | 12 V | 1.1 V | 2.7 W | 9.3 mOhm | 2.5 V, 4.5 V | 8 V | Surface Mount | N-Channel | 6.6 nC | 150 °C | -55 °C | 6-WSON (2x2) | 22 A |
Description
General part information
CSD13202 Series
This 12-V, 7.5-mΩ NexFET™ power MOSFET has been designed to minimize losses in power conversion and load management applications. The SON 2 × 2 offers excellent thermal performance for the size of the package.
This 12-V, 7.5-mΩ NexFET™ power MOSFET has been designed to minimize losses in power conversion and load management applications. The SON 2 × 2 offers excellent thermal performance for the size of the package.
