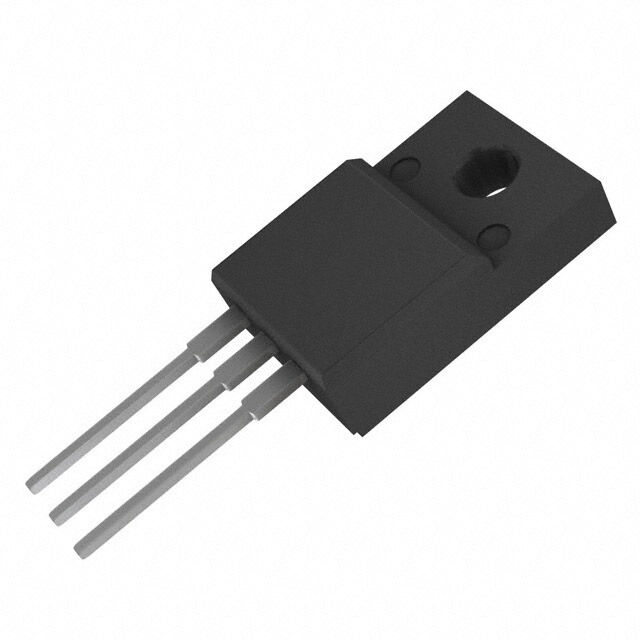

AOTF4126

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 100V 6A/27A TO220-3F

Search across all available documentation for this part.

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 100V 6A/27A TO220-3F

Technical Specifications

Parameters and characteristics for this part

Specification	AOTF4126

Current - Continuous Drain (Id) @ 25°C	27 A, 6 A
Drain to Source Voltage (Vdss)	100 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	42 nC
Input Capacitance (Ciss) (Max) @ Vds	2200 pF
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-220-3 Full Pack
Power Dissipation (Max)	42 W, 2.1 W
Rds On (Max) @ Id, Vgs	24 mOhm
Supplier Device Package	TO-220F
Technology	MOSFET (Metal Oxide)
Vgs (Max)	25 V
Vgs(th) (Max) @ Id	4 V

Part	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max) [Max]	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	FET Type	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Mounting Type	Vgs (Max)	Package / Case	Current - Continuous Drain (Id) @ 25°C	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max)
Alpha & Omega Semiconductor Inc. AOTF4185	2550 pF	33 W	TO-220FL	55 nC	16 mOhm	P-Channel	2.5 V	40 V	Through Hole	20 V	TO-220-3 Full Pack	34 A	MOSFET (Metal Oxide)	-55 °C	175 ░C	4.5 V 10 V
Alpha & Omega Semiconductor Inc. AOTF4126	2200 pF		TO-220F	42 nC	24 mOhm	N-Channel	4 V	100 V	Through Hole	25 V	TO-220-3 Full Pack	6 A 27 A	MOSFET (Metal Oxide)	-55 °C	175 ░C		2.1 W 42 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 0.56
