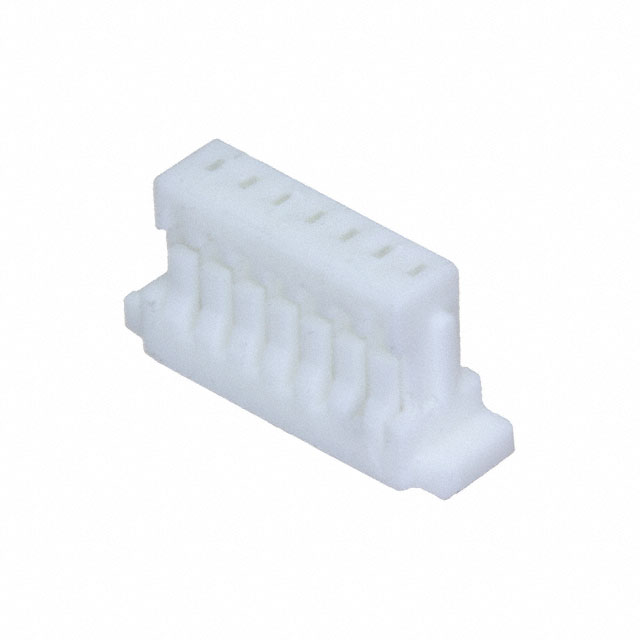

1CH-A-07

Active

Adam Tech

CONN RCPT HSG 7POS 1.00MM

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT HSG 7POS 1.00MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Rectangular Connectors - Housings Receptacle White 0.039" (1.00mm)

Technical documentation and resources

Part	Connector Type	Pitch [x]	Pitch [x]	Insulation Material	Contact Termination	Color	Mounting Type	Number of Rows	Contact Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Number of Positions
Adam Tech 1CH-A-05	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included
Adam Tech 1CH-A-07	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	7
Adam Tech 1CH-A-06	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	6
Adam Tech 1CH-A-10	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	10
Adam Tech 1CH-A-04	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	4
Adam Tech 1CH-A-02	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	2
Adam Tech 1CH-A-08	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	8
