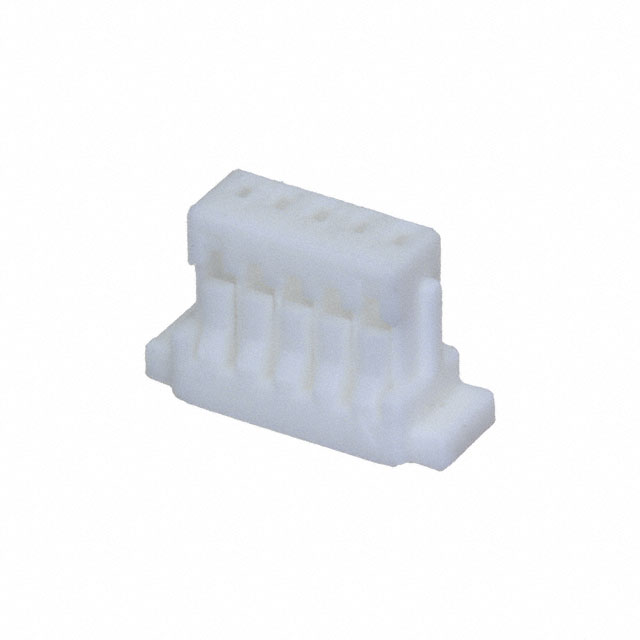

1CH-A-05

Active

Adam Tech

CONN HOUSING F 5 POS 1MM CRIMP ST CABLE MOUNT

Search across all available documentation for this part.

Active

Adam Tech

CONN HOUSING F 5 POS 1MM CRIMP ST CABLE MOUNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Receptacle White 0.039" (1.00mm)

Technical documentation and resources

Part	Connector Type	Pitch [x]	Pitch [x]	Insulation Material	Contact Termination	Color	Mounting Type	Number of Rows	Contact Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Number of Positions
Adam Tech 1CH-A-05	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included
Adam Tech 1CH-A-07	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	7
Adam Tech 1CH-A-06	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	6
Adam Tech 1CH-A-10	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	10
Adam Tech 1CH-A-04	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	4
Adam Tech 1CH-A-02	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	2
Adam Tech 1CH-A-08	Receptacle	0.039 in	1 mm	Polyamide (PA66), Nylon 6/6	Crimp	White	Free Hanging (In-Line)	1	Female Socket	Friction Lock	-25 °C	85 °C	Contacts Not Included	8
