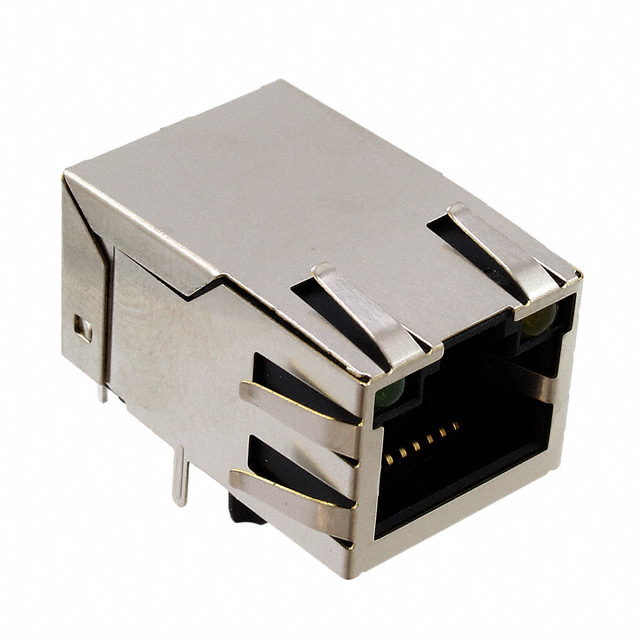

A63-113-231N435

Active

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A63-113-231N435

Active

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.79
		10	$ 5.24
		25	$ 4.95
		40	$ 4.83
		100	$ 4.59
		300	$ 4.25

Description

General part information

A63-113 Series

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A63-113-231N435	A63-113 Series

Applications	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX
Connector Type	RJ45	RJ45
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 µin
Contact Finish Thickness	0.38 µm	0.38 µm
Contact Material	Copper Alloy	Copper Alloy, Phosphor Bronze
Height Above Board	0.531 in	0.53 - 0.531 in
Height Above Board	13.49 mm	13.45 - 13.49 mm
Housing Material	Thermoplastic	Polyester, Polybutylene Terephthalate (PBT), Thermoplastic, Polyamide (PA), Nylon
LED Color	Yellow, Green	Does Not Contain LED, Yellow, Green, Yellow - Green
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Number of Rows	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Orientation	90 °	90 °
Shield Material	Copper Alloy	Copper Alloy
Shielding	Shielded, EMI Finger	Shielded, Shielded, EMI Finger
Tab Direction	Up	Down, Up
Termination	Solder	Solder

A63-113 Series

CONN JACK 1PORT 100 BASE-T PCB

Part	LED Color	Contact Finish	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Shielding	Number of Rows	Mounting Type	Applications	Orientation	Termination	Number of Ports	Tab Direction	Operating Temperature [Max]	Operating Temperature [Min]	Shield Material	Contact Material	Height Above Board	Height Above Board
EDAC Inc. A63-113-300P13B	Does Not Contain LED	Gold	Polybutylene Terephthalate (PBT), Polyester	15 µin	0.38 µm	RJ45	Shielded	1	Through Hole	10/100 Base-T, AutoMDIX	90 °	Solder	1	Down
EDAC Inc. A63-113-231N435	Green, Yellow	Gold	Thermoplastic	15 µin	0.38 µm	RJ45	Shielded, EMI Finger	1	Through Hole	10/100 Base-T, AutoMDIX	90 °	Solder	1	Up	70 °C	0 °C	Copper Alloy	Copper Alloy	0.531 in	13.49 mm
EDAC Inc. A63-113-331P422	Green, Yellow	Gold	Thermoplastic	15 µin	0.38 µm	RJ45	Shielded, EMI Finger	1	Through Hole	10/100 Base-T, AutoMDIX	90 °	Solder	1	Down	70 °C	0 °C	Copper Alloy	Copper Alloy	0.531 in	13.49 mm
EDAC Inc. A63-113-331P4D2	Green, Yellow	Gold	Polybutylene Terephthalate (PBT), Polyester	15 µin	0.38 µm	RJ45	Shielded, EMI Finger	1	Through Hole	10/100 Base-T, AutoMDIX	90 °	Solder	1	Down					0.531 in	13.49 mm
EDAC Inc. A63-113-213N491	Yellow - Green	Gold	Nylon, Polyamide (PA), Polyester	15 µin	0.38 µm	RJ45	Shielded, EMI Finger	1	Through Hole	10/100 Base-T, AutoMDIX	90 °	Solder	1	Up	70 °C	0 °C	Copper Alloy	Phosphor Bronze	0.53 in	13.45 mm
EDAC Inc. A63-113-300P131	Does Not Contain LED	Gold	Polybutylene Terephthalate (PBT), Polyester	15 µin	0.38 µm	RJ45	Shielded	1	Through Hole	10/100 Base-T, AutoMDIX	90 °	Solder	1	Down					0.531 in	13.49 mm
EDAC Inc. A63-113-300P422	Does Not Contain LED	Gold	Thermoplastic	15 µin	0.38 µm	RJ45	Shielded, EMI Finger	1	Through Hole	10/100 Base-T, AutoMDIX	90 °	Solder	1	Down	70 °C	0 °C	Copper Alloy	Copper Alloy	0.531 in	13.49 mm
