969973-4

Active

TE Connectivity AMP Connectors

CONN RCPT 8POS 0.1 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

969973-4

Active

TE Connectivity AMP Connectors

CONN RCPT 8POS 0.1 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	969973-4	969973 Series

Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	31.5 µin	31.5 µin
Contact Finish Thickness - Mating	0.8 µm	0.8 µm
Contact Finish Thickness - Post	2.5 µm	2.5 µm
Contact Finish Thickness - Post	98.4 µin	98.4 µin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.244 in	0.244 in
Insulation Height	6.2 mm	6.2 mm
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount	Surface Mount
Number of Positions	8	8 - 40
Number of Positions Loaded	All	All
Number of Rows	2	2
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Termination	Solder	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.01
		10	$ 3.58
		100	$ 3.17
	Digi-Reel®	1	$ 4.01
		10	$ 3.58
		100	$ 3.17
	Tape & Reel (TR)	700	$ 2.92
		1400	$ 2.61
		3500	$ 2.41

969973 Series

CONN RCPT 40POS 0.1 GOLD SMD

Part	Insulation Color	Insulation Height	Insulation Height	Contact Type	Number of Positions Loaded	Contact Finish - Mating	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Mounting Type	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Shape	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Material
TE Connectivity AMP Connectors 2-969973-0	Black	0.244 in	6.2 mm	Female Socket	All	Gold	Tin	Liquid Crystal Polymer (LCP)	2.5 µm	98.4 µin	Solder	2.54 mm	0.1 in	40	Surface Mount	2	0.1 in	2.54 mm	Square	Receptacle, Bottom or Top Entry	31.5 µin	0.8 µm	Push-Pull	Copper Alloy
TE Connectivity AMP Connectors 969973-4	Black	0.244 in	6.2 mm	Female Socket	All	Gold	Tin	Liquid Crystal Polymer (LCP)	2.5 µm	98.4 µin	Solder	2.54 mm	0.1 in	8	Surface Mount	2	0.1 in	2.54 mm	Square	Receptacle, Bottom or Top Entry	31.5 µin	0.8 µm	Push-Pull	Copper Alloy
TE Connectivity AMP Connectors 1-969973-2	Black	0.244 in	6.2 mm	Female Socket	All	Gold	Tin	Liquid Crystal Polymer (LCP)	2.5 µm	98.4 µin	Solder	2.54 mm	0.1 in	24	Surface Mount	2	0.1 in	2.54 mm	Square	Receptacle, Bottom or Top Entry	31.5 µin	0.8 µm	Push-Pull	Copper Alloy
TE Connectivity AMP Connectors 969973-5	Black	0.244 in	6.2 mm	Female Socket	All	Gold	Tin	Liquid Crystal Polymer (LCP)	2.5 µm	98.4 µin	Solder	2.54 mm	0.1 in	10	Surface Mount	2	0.1 in	2.54 mm	Square	Receptacle, Bottom or Top Entry	31.5 µin	0.8 µm	Push-Pull	Copper Alloy
TE Connectivity AMP Connectors 969973-6	Black	0.244 in	6.2 mm	Female Socket	All	Gold	Tin	Liquid Crystal Polymer (LCP)	2.5 µm	98.4 µin	Solder	2.54 mm	0.1 in	12	Surface Mount	2	0.1 in	2.54 mm	Square	Receptacle, Bottom or Top Entry	31.5 µin	0.8 µm	Push-Pull	Copper Alloy

Description

General part information

969973 Series

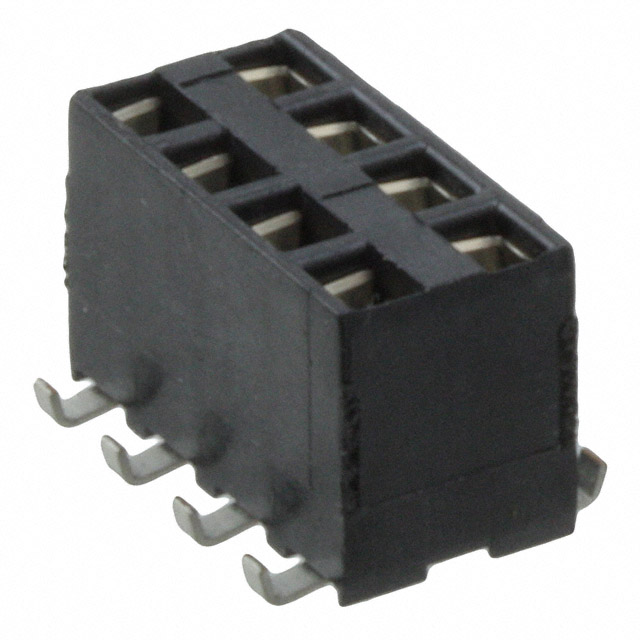

8 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
