969973-6
ActiveTE Connectivity AMP Connectors

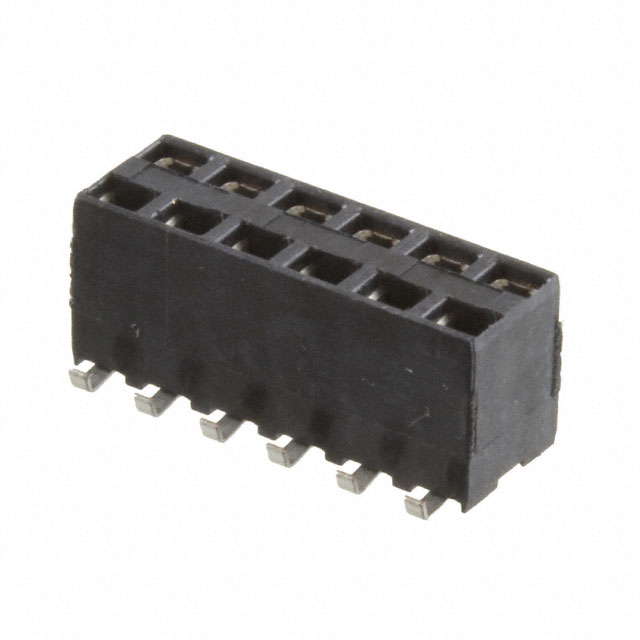

CONN RCPT 12POS 0.1 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
969973-6
ActiveTE Connectivity AMP Connectors
CONN RCPT 12POS 0.1 GOLD SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 969973-6 | 969973 Series |
|---|---|---|
| Connector Type | Receptacle, Bottom or Top Entry | Receptacle, Bottom or Top Entry |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 31.5 µin | 31.5 µin |
| Contact Finish Thickness - Mating | 0.8 µm | 0.8 µm |
| Contact Finish Thickness - Post | 2.5 µm | 2.5 µm |
| Contact Finish Thickness - Post | 98.4 µin | 98.4 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.244 in | 0.244 in |
| Insulation Height | 6.2 mm | 6.2 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 12 | 8 - 40 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.03 | |
| 10 | $ 1.81 | |||
| 100 | $ 1.63 | |||
| Digi-Reel® | 1 | $ 2.03 | ||
| 10 | $ 1.81 | |||
| 100 | $ 1.63 | |||
| Tape & Reel (TR) | 700 | $ 1.63 | ||
969973 Series
CONN RCPT 40POS 0.1 GOLD SMD
| Part | Insulation Color | Insulation Height | Insulation Height | Contact Type | Number of Positions Loaded | Contact Finish - Mating | Contact Finish - Post | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Mounting Type | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Shape | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-969973-0 | Black | 0.244 in | 6.2 mm | Female Socket | All | Gold | Tin | Liquid Crystal Polymer (LCP) | 2.5 µm | 98.4 µin | Solder | 2.54 mm | 0.1 in | 40 | Surface Mount | 2 | 0.1 in | 2.54 mm | Square | Receptacle, Bottom or Top Entry | 31.5 µin | 0.8 µm | Push-Pull | Copper Alloy |
TE Connectivity AMP Connectors 969973-4 | Black | 0.244 in | 6.2 mm | Female Socket | All | Gold | Tin | Liquid Crystal Polymer (LCP) | 2.5 µm | 98.4 µin | Solder | 2.54 mm | 0.1 in | 8 | Surface Mount | 2 | 0.1 in | 2.54 mm | Square | Receptacle, Bottom or Top Entry | 31.5 µin | 0.8 µm | Push-Pull | Copper Alloy |
TE Connectivity AMP Connectors 1-969973-2 | Black | 0.244 in | 6.2 mm | Female Socket | All | Gold | Tin | Liquid Crystal Polymer (LCP) | 2.5 µm | 98.4 µin | Solder | 2.54 mm | 0.1 in | 24 | Surface Mount | 2 | 0.1 in | 2.54 mm | Square | Receptacle, Bottom or Top Entry | 31.5 µin | 0.8 µm | Push-Pull | Copper Alloy |
TE Connectivity AMP Connectors 969973-5 | Black | 0.244 in | 6.2 mm | Female Socket | All | Gold | Tin | Liquid Crystal Polymer (LCP) | 2.5 µm | 98.4 µin | Solder | 2.54 mm | 0.1 in | 10 | Surface Mount | 2 | 0.1 in | 2.54 mm | Square | Receptacle, Bottom or Top Entry | 31.5 µin | 0.8 µm | Push-Pull | Copper Alloy |
TE Connectivity AMP Connectors 969973-6 | Black | 0.244 in | 6.2 mm | Female Socket | All | Gold | Tin | Liquid Crystal Polymer (LCP) | 2.5 µm | 98.4 µin | Solder | 2.54 mm | 0.1 in | 12 | Surface Mount | 2 | 0.1 in | 2.54 mm | Square | Receptacle, Bottom or Top Entry | 31.5 µin | 0.8 µm | Push-Pull | Copper Alloy |
Description
General part information
969973 Series
12 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
