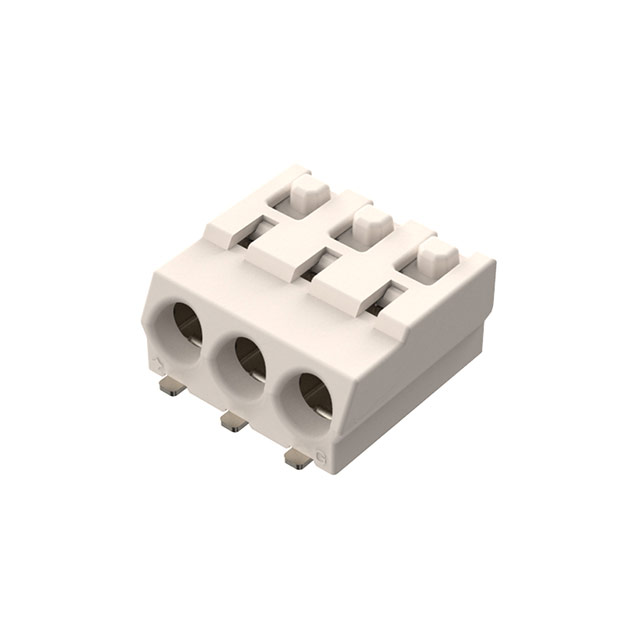

BL300-03-A

Obsolete

GCT

WIRE TRAP PUSH IN, SMT, 2.40MM P

Search across all available documentation for this part.

Obsolete

GCT

WIRE TRAP PUSH IN, SMT, 2.40MM P

Technical Specifications

Parameters and characteristics commom to parts in this series

WIRE TRAP PUSH IN, SMT, 2.40MM P

Part	Mounting Type	Number of Positions	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Style	Housing Color	Contact Finish	Connector Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Housing Material	Pitch [x]	Pitch [x]
GCT BL300-01-A	Surface Mount, Right Angle	1	4 A	300 VDC	-25 °C	105 ░C	Solder	Board to Cable/Wire	Cream	Tin	Poke-In Wire, Receptacle	24 AWG	22 AWG	Copper Alloy	Liquid Crystal Polymer (LCP)
GCT BL300-02-A	Surface Mount, Right Angle	2	4 A	300 VDC	-25 °C	105 ░C	Solder	Board to Cable/Wire	Cream	Tin	Poke-In Wire, Receptacle	24 AWG	22 AWG	Copper Alloy	Liquid Crystal Polymer (LCP)	2.4 mm	0.094 in
GCT BL300-03-A	Surface Mount, Right Angle		4 A	300 VDC	-25 °C	105 ░C	Solder	Board to Cable/Wire	Cream	Tin	Poke-In Wire, Receptacle	24 AWG	22 AWG	Copper Alloy	Liquid Crystal Polymer (LCP)	2.4 mm	0.094 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SSL Connector 3 Position Receptacle, Poke-In Wire Board to Cable/Wire 0.094" (2.40mm) Solder
