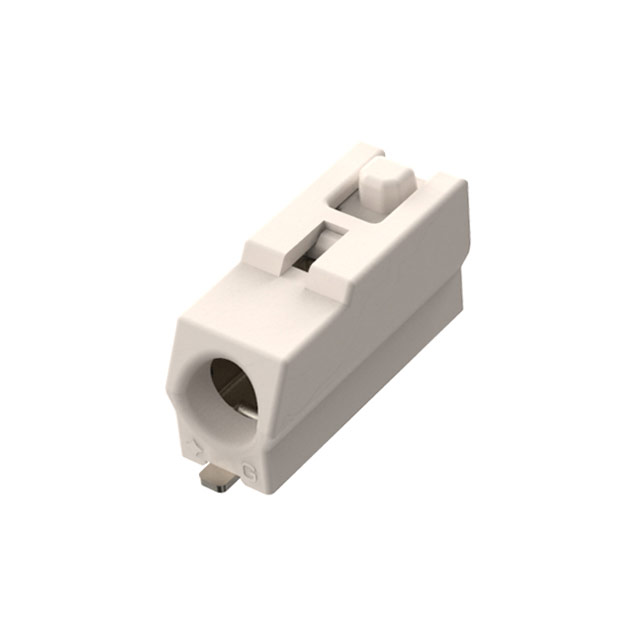

BL300-01-A
ObsoleteGCT
WIRE TRAP PUSH IN, SMT, 2.40MM P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BL300-01-A |
|---|---|
| Connector Type | Poke-In Wire, Receptacle |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Housing Color | Cream |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BL300-01-A
SSL Connector 1 Position Receptacle, Poke-In Wire Board to Cable/Wire Solder
