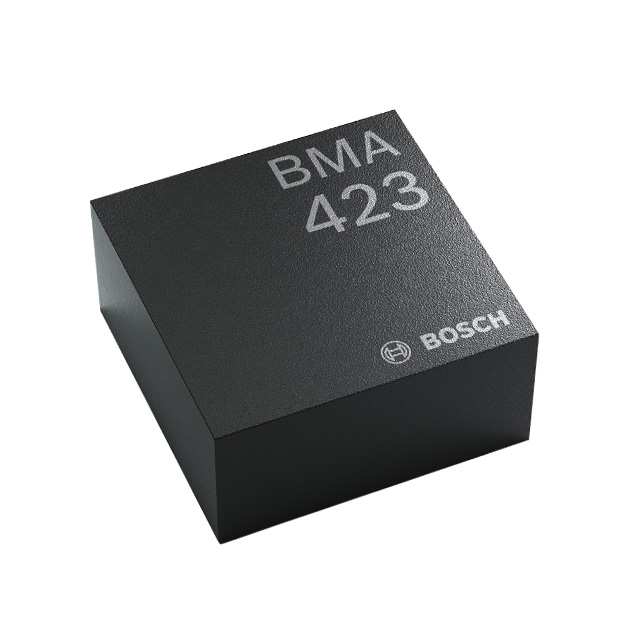

BMA423

Obsolete

Bosch Sensortec

ACCEL 2-16G I2C/SPI 12LGA

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

ACCEL 2-16G I2C/SPI 12LGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 8Hz ~ 1.6kHz 12-LGA (2x2)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BMA423	BMA423 Series

Acceleration Range	4 g, 16 g, 8 g	4 - 16 g
Acceleration Range [Max]	2 g	2 g
Acceleration Range [Min]	-2 g	-2 g
Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Bandwidth [Max]	1.6 kHz	1.6 kHz
Bandwidth [Min]	8 Hz	8 Hz
Contents	-	Board(s)
Features	Selectable Low Pass Filter, Adjustable Bandwidth	Selectable Low Pass Filter, Adjustable Bandwidth
Function	-	Accelerometer
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C, SPI	I2C, SPI
Package / Case	12-WFLGA	12-WFLGA
Supplier Device Package	12-LGA (2x2)	12-LGA (2x2)
Type	Digital	Digital, Sensor
Utilized IC / Part	-	BMA423
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.62 V	1.62 V

ACCEL 2-16G I2C/SPI 12LGA

Part	Type	Features	Package / Case	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Bandwidth [Min]	Bandwidth [Max]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Axis [z]	Axis [y]	Axis [x]	Output Type	Contents	Utilized IC / Part	Function
Bosch Sensortec BMA423	Digital	Adjustable Bandwidth, Selectable Low Pass Filter	12-WFLGA	4 g, 8 g, 16 g	-2 g	2 g	85 °C	-40 °C	8 Hz	1.6 kHz	Surface Mount	3.6 V	1.62 V	12-LGA (2x2)	Z	Y	X	I2C, SPI
Bosch Sensortec SHUTTLE BOARD BMA423	Sensor																		Board(s)	BMA423	Accelerometer
