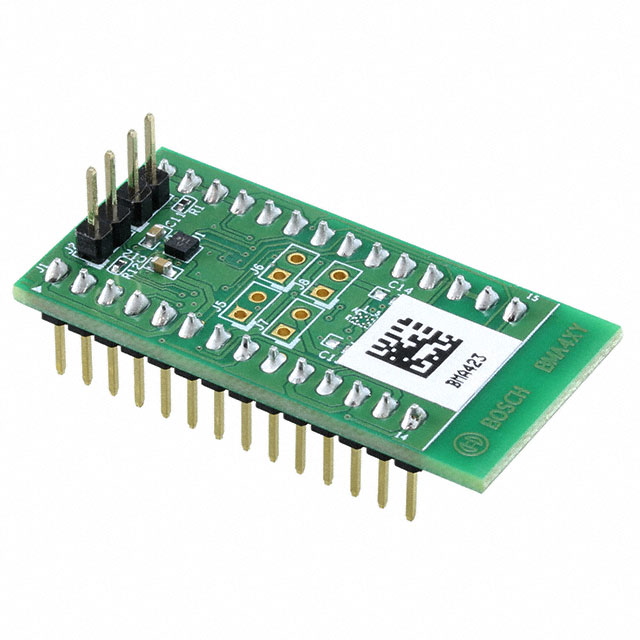

SHUTTLE BOARD BMA423

Obsolete

Bosch Sensortec

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMA423

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SHUTTLE BOARD BMA423	BMA423 Series

Acceleration Range	-	4 - 16 g
Acceleration Range	-	-2 g
Acceleration Range	-	2 g
Axis	-	Z
Axis	-	Y
Axis	-	X
Bandwidth	-	8 Hz
Bandwidth	-	1.6 kHz
Contents	Board(s)	Board(s)
Features	-	Selectable Low Pass Filter, Adjustable Bandwidth
Function	Accelerometer	Accelerometer
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, SPI
Package / Case	-	12-WFLGA
Supplier Device Package	-	12-LGA (2x2)
Type	Sensor	Digital, Sensor
Utilized IC / Part	BMA423	BMA423
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.62 V

ACCEL 2-16G I2C/SPI 12LGA

Part	Type	Features	Package / Case	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Bandwidth [Min]	Bandwidth [Max]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Axis [z]	Axis [y]	Axis [x]	Output Type	Contents	Utilized IC / Part	Function
Bosch Sensortec BMA423	Digital	Adjustable Bandwidth, Selectable Low Pass Filter	12-WFLGA	4 g, 8 g, 16 g	-2 g	2 g	85 °C	-40 °C	8 Hz	1.6 kHz	Surface Mount	3.6 V	1.62 V	12-LGA (2x2)	Z	Y	X	I2C, SPI
Bosch Sensortec SHUTTLE BOARD BMA423	Sensor																		Board(s)	BMA423	Accelerometer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMA423 Accelerometer Sensor Platform Evaluation Expansion Board
