Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LM63615DQPWPRQ1 | LM63615 Series |
|---|---|---|
| Board Type | - | Fully Populated |
| Current - Output | 1.5 A | 1.5 A |
| Frequency - Switching | 2.1 MHz, 400 kHz | 2.1 - 400 MHz |
| Frequency - Switching | - | 250 kHz |
| Frequency - Switching | - | 2.2 MHz |
| Function | Step-Down | Step-Down |
| Grade | Automotive | Automotive |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Surface Mount | Surface Mount, Surface Mount, Wettable Flank |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 C | 150 C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 1 |

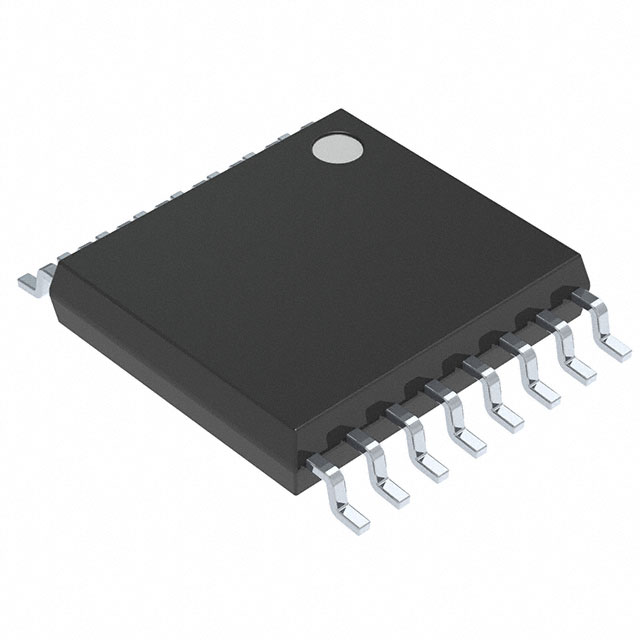

| Package / Case | 16-PowerTSSOP | 16-PowerTSSOP, 12-WFDFN Exposed Pad |
| Package / Case [y] | 4.4 mm | 4.4 mm |
| Package / Case [y] | 0.173 in | 0.173 in |
| Qualification | AEC-Q100 | AEC-Q100 |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 16-HTSSOP | 16-HTSSOP, 12-WSON |
| Supplier Device Package | - | 3 |
| Supplier Device Package | - | 3 |
| Synchronous Rectifier | True | True |
| Topology | Buck | Buck |
| Utilized IC / Part | - | LM63615-Q1 |
| Voltage - Input | - | 36 V |
| Voltage - Input | - | 3.5 V |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 3.5 V | 3.5 V |
| Voltage - Output | - | 5 V |
| Voltage - Output | - | 3.3 V |
| Voltage - Output (Max) [Max] | 20 V | 20 V |
| Voltage - Output (Min/Fixed) [Min] | 1 V | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | N/A | 1 | $ 3.45 | |
| 10 | $ 2.59 | |||
| 25 | $ 2.38 | |||
| 100 | $ 2.14 | |||
| 250 | $ 2.03 | |||
| 500 | $ 1.96 | |||
| 1000 | $ 1.91 | |||
| 2000 | $ 1.86 | |||
| 4000 | $ 1.83 | |||
| Digikey | Cut Tape (CT) | 1 | $ 3.62 | |
| 10 | $ 3.25 | |||
| 25 | $ 3.07 | |||
| 100 | $ 2.66 | |||
| 250 | $ 2.53 | |||
| 500 | $ 2.27 | |||
| 1000 | $ 1.91 | |||
| Digi-Reel® | 1 | $ 3.62 | ||
| 10 | $ 3.25 | |||
| 25 | $ 3.07 | |||
| 100 | $ 2.66 | |||
| 250 | $ 2.53 | |||
| 500 | $ 2.27 | |||
| 1000 | $ 1.91 | |||
| Tape & Reel (TR) | 2000 | $ 1.82 | ||
| LCSC | N/A | 1 | $ 3.41 | |
| 1 | $ 6.82 | |||
| 10 | $ 2.96 | |||
| 10 | $ 5.92 | |||
| 30 | $ 2.75 | |||
| 30 | $ 5.50 | |||
| 100 | $ 2.52 | |||
| 100 | $ 5.04 | |||
| Mouser Electronics | N/A | 1 | $ 3.45 | |
| 10 | $ 2.38 | |||
| 100 | $ 2.15 | |||
| 250 | $ 2.04 | |||
| 500 | $ 1.97 | |||
| 1000 | $ 1.91 | |||
| 2000 | $ 1.78 | |||
| 4000 | $ 1.74 | |||
| Quest Components | N/A | 1 | $ 3.54 | |
| 460 | $ 1.95 | |||
| 461 | $ 1.94 | |||
| 1029 | $ 1.77 | |||
| 1033 | $ 1.76 | |||
| Texas Instruments | LARGE T&R | 1 | $ 2.88 | |
| 100 | $ 2.38 | |||
| 250 | $ 1.71 | |||
| 1000 | $ 1.28 | |||
| Win Source Electronics | N/A | 18 | $ 2.82 | |
| 18 | $ 2.82 | |||
| 44 | $ 2.31 | |||
| 44 | $ 2.31 | |||
| 67 | $ 2.24 | |||
| 67 | $ 2.24 | |||
| 93 | $ 2.17 | |||
| 93 | $ 2.17 | |||
| 120 | $ 2.10 | |||
| 120 | $ 2.10 | |||
| 160 | $ 1.88 | |||
| 160 | $ 1.88 | |||
LM63615 Series
3.5-V to 36-V, 1.5-A step-down voltage converter with spread spectrum
| Part | Supplier Device Package | Synchronous Rectifier | Output Configuration | Voltage - Input (Min) [Min] | Package / Case [y] | Package / Case | Package / Case [y] | Qualification | Voltage - Output (Max) [Max] | Voltage - Output (Min/Fixed) [Min] | Current - Output | Number of Outputs | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Grade | Mounting Type | Frequency - Switching | Topology | Voltage - Input (Max) [Max] | Function | Outputs and Type | Outputs and Type | Voltage - Input [Max] | Voltage - Input [Min] | Board Type | Supplied Contents | Utilized IC / Part | Voltage - Output [Max] | Voltage - Output [Min] | Main Purpose | Frequency - Switching [Min] | Frequency - Switching [Max] | Supplier Device Package [y] | Supplier Device Package [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LM63615DQPWPRQ1 | 16-HTSSOP | Positive | 3.5 V | 4.4 mm | 16-PowerTSSOP | 0.173 in | AEC-Q100 | 20 V | 1 V | 1.5 A | 1 | Adjustable | 150 C | -40 °C | Automotive | Surface Mount | 2.1 MHz, 400 kHz | Buck | 36 V | Step-Down | |||||||||||||||
Texas Instruments LM63615QDRREVM | 1.5 A | 2.1 MHz | Non-Isolated | 1 | 36 V | 3.5 V | Fully Populated | Board(s) | LM63615-Q1 | 5 V | 3.3 V | DC/DC, Step Down | |||||||||||||||||||||||
Texas Instruments LM63615DQDRRRQ1 | 12-WSON | Positive | 3.5 V | 12-WFDFN Exposed Pad | AEC-Q100 | 20 V | 1 V | 1.5 A | 1 | Adjustable | 150 C | -40 °C | Automotive | Surface Mount, Wettable Flank | Buck | 36 V | Step-Down | 250 kHz | 2.2 MHz | 3 | 3 | ||||||||||||||
Texas Instruments LM63615CAQDRRRQ1 | 12-WSON | Positive | 3.5 V | 12-WFDFN Exposed Pad | AEC-Q100 | 20 V | 1 V | 1.5 A | 1 | Adjustable | 150 C | -40 °C | Automotive | Surface Mount, Wettable Flank | 2.1 MHz | Buck | 36 V | Step-Down | 3 | 3 |
Description
General part information
LM63615 Series
The LM636x5-Q1 is an easy-to-use, synchronous, step-down DC/DC converter designed for rugged automotive applications. The LM636x5-Q1 can drive up to 1.5A or 2.5A of load current from an input of up to 36V. The converter has high light load efficiency and output accuracy in a small design size. Features such as a RESET flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load improves efficiency while maintaining tight load regulation. Integration eliminates many external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LM636x5-Q1 is available in the HTSSOP 16-pin power package, with PowerPAD™ integrated circuit package, and the WSON 12-pin power package.
The LM636x5-Q1 is an easy-to-use, synchronous, step-down DC/DC converter designed for rugged automotive applications. The LM636x5-Q1 can drive up to 1.5A or 2.5A of load current from an input of up to 36V. The converter has high light load efficiency and output accuracy in a small design size. Features such as a RESET flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load improves efficiency while maintaining tight load regulation. Integration eliminates many external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LM636x5-Q1 is available in the HTSSOP 16-pin power package, with PowerPAD™ integrated circuit package, and the WSON 12-pin power package.
