HW-16-17-L-S-415-SM-A

Active

CONN HDR 16POS 0.1 STACK SMD

Active

CONN HDR 16POS 0.1 STACK SMD

Description

General part information

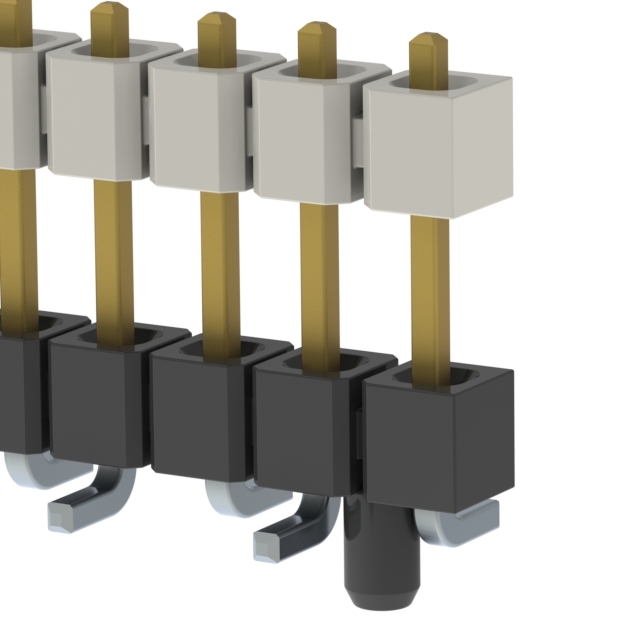

16 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount

Parameters and characteristics for this part

Specification	HW-16-17-L-S-415-SM-A

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	10 µin
Length - Overall Pin	0.415 in
Length - Stack Height	0.415 in
Mounting Type	Surface Mount
Number of Positions	16
Number of Rows	1
Pitch	0.1 in
Termination	Solder

Part	Length - Overall Pin	Mounting Type	Pitch	Length - Stack Height	Color	Number of Positions	Length - Post (Mating)	Number of Rows	Contact Finish - Post (Mating)	Termination	Contact Finish Thickness - Post (Mating)	Row Spacing
Samtec Inc. HW-16-17-T-S-280-SM	0.415 in	Surface Mount	0.1 in	0.28 in	Black	16	0.135 in	1	Tin	Solder
Samtec Inc. HW-16-17-F-D-260-SM	0.415 in	Surface Mount	0.1 in	0.26 in	Black	32	0.155 in	2	Gold	Solder	3 µin	0.1 in
Samtec Inc. HW-16-17-L-S-415-SM-A	0.415 in	Surface Mount	0.1 in	0.415 in	Black	16		1	Gold	Solder	10 µin
