BQ51020EVM-520
ActiveEVAL MODULE FOR BQ51020
Deep-Dive with AI
Search across all available documentation for this part.

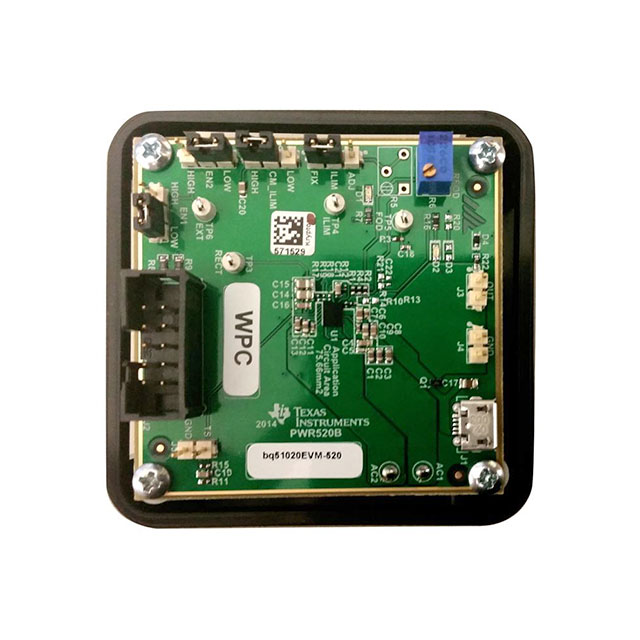

BQ51020EVM-520
ActiveEVAL MODULE FOR BQ51020
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ51020EVM-520 | BQ51020 Series |
|---|---|---|
| Applications | - | Wireless Power Receiver |
| Current - Supply | - | 2.5 A |
| Function | Wireless Power Supply/Charging | Wireless Power Supply/Charging |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 42-XFBGA, DSBGA |
| Primary Attributes | Receiver | Receiver |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 42-DSBGA |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ51020 | BQ51020 |
| Voltage - Supply | - | 4 V |
| Voltage - Supply | - | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ51020 Series
5-W (WPC) single-Chip Wireless power Receiver
| Part | Current - Supply | Mounting Type | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Type | Function | Supplied Contents | Primary Attributes | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ51020YFPR | 2.5 A | Surface Mount | 42-XFBGA, DSBGA | 4 V | 10 V | 42-DSBGA | 125 °C | -40 °C | Wireless Power Receiver | |||||
Texas Instruments BQ51020EVM-520 | Power Management | Wireless Power Supply/Charging | Board(s) | Receiver | BQ51020 | |||||||||
Texas Instruments BQ51020YFPT | 2.5 A | Surface Mount | 42-XFBGA, DSBGA | 4 V | 10 V | 42-DSBGA | 125 °C | -40 °C | Wireless Power Receiver |
Description
General part information
BQ51020 Series
The bq5102x device is a fully contained wireless power receiver capable of operating with the WPC v1.1 protocol which allows a wireless power system to deliver up to 5 W to the system when used with a Qi inductive transmitter. The bq5102x device provides a single device power conversion (rectification and regulation) as well as the digital control and communication for WPC specification. With market-leading efficiency and adjustable output voltage, the bq5102x device allows for unparalleled efficiency and system optimization. I2C also allows system designers to implement interesting new features such as aligning a receiver on the transmitter surface, or detecting foreign objects on the receiver. The receiver allows for synchronous rectification, regulation and control and communication to all exist in a market leading form factor, efficiency, and solution size.
The bq5102x device is a fully contained wireless power receiver capable of operating with the WPC v1.1 protocol which allows a wireless power system to deliver up to 5 W to the system when used with a Qi inductive transmitter. The bq5102x device provides a single device power conversion (rectification and regulation) as well as the digital control and communication for WPC specification. With market-leading efficiency and adjustable output voltage, the bq5102x device allows for unparalleled efficiency and system optimization. I2C also allows system designers to implement interesting new features such as aligning a receiver on the transmitter surface, or detecting foreign objects on the receiver. The receiver allows for synchronous rectification, regulation and control and communication to all exist in a market leading form factor, efficiency, and solution size.
