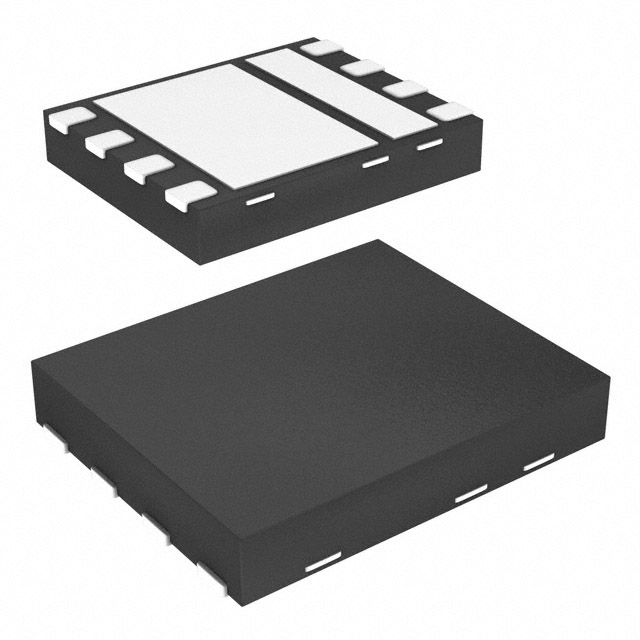

AON6924

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 30V 15A/28A 8DFN

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 30V 15A/28A 8DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AON6924

Configuration	2 N-Channel (Dual) Asymmetrical
Current - Continuous Drain (Id) @ 25°C	28 A, 15 A
Drain to Source Voltage (Vdss)	30 V
FET Feature	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs	21 nC
Input Capacitance (Ciss) (Max) @ Vds	1560 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-WDFN Exposed Pad
Power - Max	2.2 W, 2 W
Rds On (Max) @ Id, Vgs [Max]	5.2 mOhm
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.3 V

Part	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Configuration	Drain to Source Voltage (Vdss)	Mounting Type	FET Feature	Supplier Device Package	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Power - Max [Min]	Power - Max [Max]	Rds On (Max) @ Id, Vgs [Max]	Power - Max
Alpha & Omega Semiconductor Inc. AON6926	1380 pF	11 A 12 A	11 mOhm	-55 °C	150 °C	MOSFET (Metal Oxide)	2 N-Channel (Dual) Asymmetrical	30 V	Surface Mount	Logic Level Gate	8-DFN (5x6)	2.5 V	24 nC	8-PowerVDFN	1.9 W	2.1 W
Alpha & Omega Semiconductor Inc. AON6924	1560 pF	15 A 28 A		-55 °C	150 °C	MOSFET (Metal Oxide)	2 N-Channel (Dual) Asymmetrical	30 V	Surface Mount	Logic Level Gate		2.3 V	21 nC	8-WDFN Exposed Pad			5.2 mOhm	2 W 2.2 W
