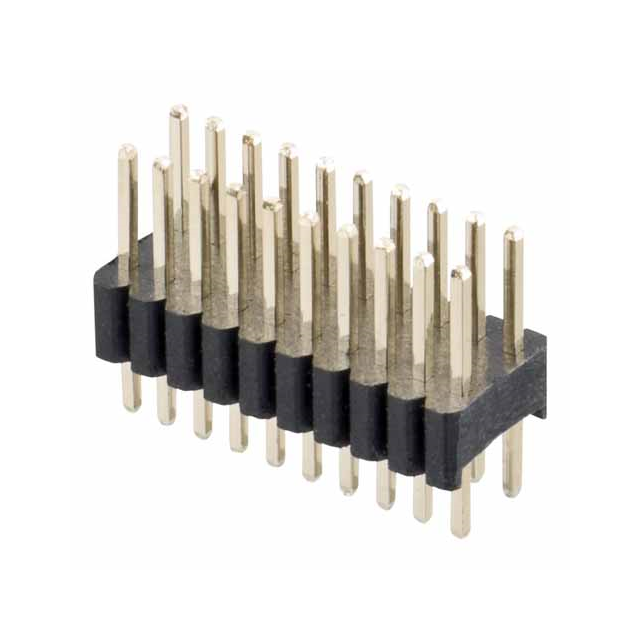

M52-040023W2045

Active

Harwin Inc.

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.05 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M50-3530842 +2

M52-040023W2045

Active

Harwin Inc.

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.05 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet M50-3530842 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M52-040023W2045

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	11 mm, 8.5 mm, 7.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	8.8 mm
Overall Contact Length	0.346 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

M52-040 Series

Part	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions Loaded	Material Flammability Rating	Termination	Insulation Height [z]	Insulation Height [z]	Mated Stacking Heights	Insulation Material	Fastening Type	Contact Shape	Contact Finish Thickness - Mating	Contact Material	Contact Length - Mating	Contact Length - Mating	Insulation Color	Mounting Type	Pitch - Mating	Pitch - Mating	Shrouding	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Contact Type	Number of Positions	Contact Finish Thickness - Post	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Harwin Inc. M52-040023V0345	0.091 in	2.3 mm	Gold	All	UL94 V-0	Solder	0.098 in	2.5 mm	7.1 mm 8.5 mm 11 mm	Nylon 6T Polyamide (PA6T)	Push-Pull	Square	Flash	Brass	4 mm	0.157 in	Black	Through Hole	0.05 in	1.27 mm	Unshrouded	Header	1	-40 °C	105 ░C	8.8 mm	0.346 in	Male Pin
Harwin Inc. M52-040000P2045			Gold	All	UL94 V-0	Solder	0.098 in	2.5 mm	8.37 mm 9.77 mm 12.27 mm	Nylon 6T Polyamide (PA6T)	Push-Pull	Square	Flash	Brass	4 mm	0.157 in	Black	Surface Mount	0.05 in	1.27 mm	Unshrouded	Header	1	-40 °C	105 ░C			Male Pin	20	Flash	Gold
Harwin Inc. M52-040023W0545	0.091 in	2.3 mm	Gold	All	UL94 V-0	Solder	0.098 in	2.5 mm	7.1 mm 8.5 mm 11 mm	Nylon 6T Polyamide (PA6T)	Push-Pull	Square	Flash	Brass	4 mm	0.157 in	Black	Through Hole	0.05 in	1.27 mm	Unshrouded	Header	2	-40 °C	105 ░C	8.8 mm	0.346 in	Male Pin	10			2.54 mm	0.1 in
Harwin Inc. M52-040023W2045	0.091 in	2.3 mm	Gold	All	UL94 V-0	Solder	0.098 in	2.5 mm	7.1 mm 8.5 mm 11 mm	Nylon 6T Polyamide (PA6T)	Push-Pull	Square	Flash	Brass	4 mm	0.157 in	Black	Through Hole	0.05 in	1.27 mm	Unshrouded	Header	2	-40 °C	105 ░C	8.8 mm	0.346 in	Male Pin	40	Flash	Gold	2.54 mm	0.1 in
Harwin Inc. M52-040000S2045			Gold	All	UL94 V-0	Solder	0.098 in	2.5 mm	8.37 mm 9.77 mm 12.27 mm	Nylon 6T Polyamide (PA6T)	Push-Pull	Square	Flash	Brass	4 mm	0.157 in	Black	Through Hole	0.05 in	1.27 mm	Unshrouded	Header	2	-40 °C	105 ░C			Male Pin	40	Flash	Gold	2.54 mm	0.1 in
Harwin Inc. M52-040000S2545			Gold	All	UL94 V-0	Solder	0.098 in	2.5 mm	8.37 mm 9.77 mm 12.27 mm	Nylon 6T Polyamide (PA6T)	Push-Pull	Square	Flash	Brass	4 mm	0.157 in	Black	Through Hole	0.05 in	1.27 mm	Unshrouded	Header	2	-40 °C	105 ░C			Male Pin	50	Flash	Gold	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.58

Description

General part information

M52-040 Series

Connector Header Through Hole 40 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Datasheet

M50-3530842

M50-3000345

M50,M52 Series Spec Sheet

Datasheet
