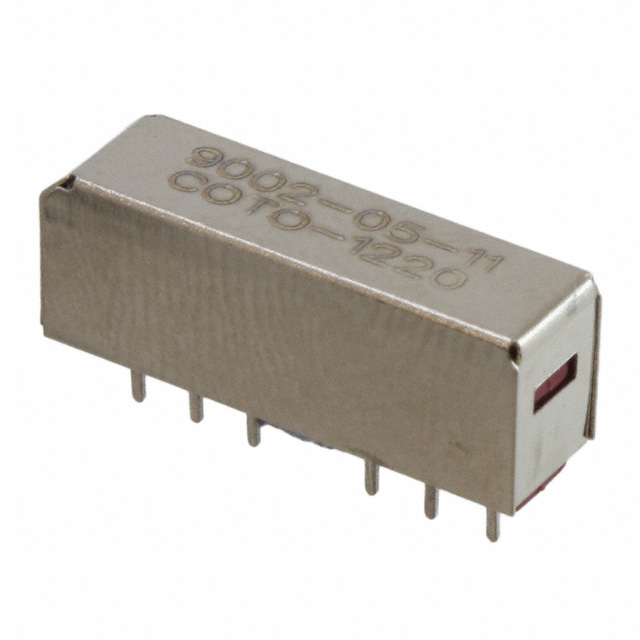

9002-05-11

Active

Coto Technology

RELAY RF SPST-NO 500MA 5V

Search across all available documentation for this part.

Active

Coto Technology

RELAY RF SPST-NO 500MA 5V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY RF SPST-NO 500MA 12V

Part	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Must Operate Voltage	Coil Current	Mounting Type	Contact Rating (Current)	Features	Must Release Voltage	Coil Resistance	Coil Voltage	Termination Style	Release Time	Switching Voltage	Contact Form
Coto Technology 9002-12-11	0.35 ms	85 °C	-20 C	Non Latching	9 VDC	16 mA	Through Hole	0.5 A	Diode, Magnetic Shield	1 VDC	750 Ohms	12 VDC	PC Pin	0.1 ms	200 VDC, 200 VAC	SPST-NO (1 Form A)
Coto Technology 9002-05-11	0.35 ms	85 °C	-20 C	Non Latching	3.75 VDC	14.3 mA	Through Hole	0.5 A	Diode, Magnetic Shield	0.4 VDC	350 Ohms	5 VDC	PC Pin	0.1 ms	200 VDC, 200 VAC	SPST-NO (1 Form A)
Coto Technology 9002-12-00	0.35 ms	85 °C	-20 C	Non Latching	9 VDC	16 mA	Through Hole	0.5 A		1 VDC	750 Ohms	12 VDC	PC Pin	0.1 ms	200 VDC, 200 VAC	SPST-NO (1 Form A)
Coto Technology 9002-05-10	0.35 ms	85 °C	-20 C	Non Latching	3.75 VDC	14.3 mA	Through Hole	0.5 A	Magnetic Shield	0.4 VDC	350 Ohms	5 VDC	PC Pin	0.1 ms	200 VDC, 200 VAC	SPST-NO (1 Form A)
Coto Technology 9002-05-00	0.35 ms	85 °C	-20 C	Non Latching	3.75 VDC	14.3 mA	Through Hole	0.5 A		0.4 VDC	350 Ohms	5 VDC	PC Pin	0.1 ms	200 VDC, 200 VAC	SPST-NO (1 Form A)
Coto Technology 9002-05-01	0.35 ms	85 °C	-20 C	Non Latching	3.75 VDC	14.3 mA	Through Hole	0.5 A	Diode	0.4 VDC	350 Ohms	5 VDC	PC Pin	0.1 ms	200 VDC, 200 VAC	SPST-NO (1 Form A)
Coto Technology 9002-12-01	0.35 ms	85 °C	-20 C	Non Latching	9 VDC	16 mA	Through Hole	0.5 A	Diode	1 VDC	750 Ohms	12 VDC	PC Pin	0.1 ms	200 VDC, 200 VAC	SPST-NO (1 Form A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY RF SPST-NO 500MA 5V
