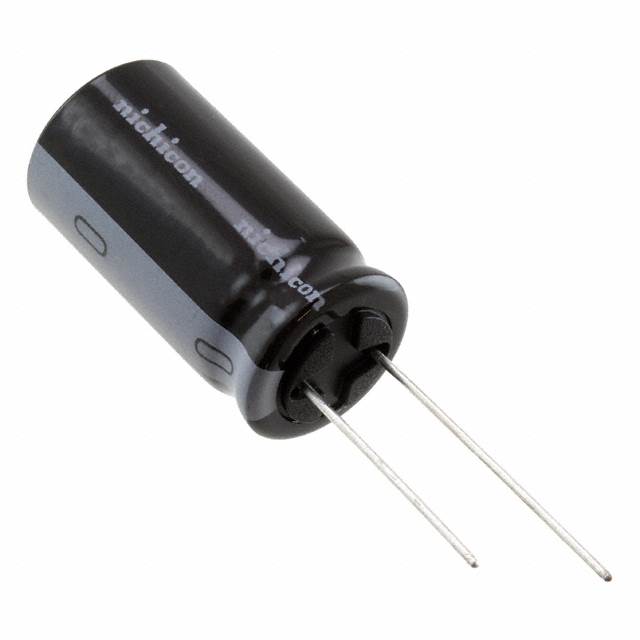

UVY2C221MHD

Active

Nichicon

CAP ALUM 220UF 20% 160V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY2C221MHD

Active

Nichicon

CAP ALUM 220UF 20% 160V RADIAL

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.73
		10	$ 1.12
		50	$ 0.87
		100	$ 0.80
		500	$ 0.73
Newark	Each	100	$ 1.17
		500	$ 1.06
		1000	$ 0.92
		2500	$ 0.82

Description

General part information

UVY2C Series

220 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Miniature Type Taping Spec

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UVY2C221MHD	UVY2C Series

Applications	General Purpose	General Purpose
Capacitance	220 µF	10 - 1000 µF
Height - Seated (Max)	-	14 mm
Height - Seated (Max)	-	0.551 - 1.654 "
Height - Seated (Max)	-	17.5 - 42 mm
Height - Seated (Max) [Max] [z]	1.28 in	0.512 - 2.047 in
Height - Seated (Max) [Max] [z]	32.5 mm	13 - 52 mm
Lead Spacing	7.5 mm	3.5 - 12.5 mm
Lead Spacing	0.295 in	0.138 - 0.492 in
Lifetime @ Temp.	2000 Hrs	1000 - 2000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	471.5 mA	1.5525 - 983.25 mA
Ripple Current @ Low Frequency	410 mA	1.35 - 855 mA
Size / Dimension [diameter]	0.63 in	0.315 - 0.984 in
Size / Dimension [diameter]	16 mm	8 - 25 mm
Tolerance	20 %	20 %
Voltage - Rated	160 V	160 V

UVY2C Series

CAP ALUM 220UF 20% 160V RADIAL

Part	Package / Case	Lifetime @ Temp.	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Polarization	Mounting Type	Capacitance	Ripple Current @ Low Frequency	Voltage - Rated	Applications	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon UVY2C221MHD	Radial, Can	2000 Hrs	471.5 mA	0.63 in	16 mm	7.5 mm	0.295 in	Polar	Through Hole	220 µF	410 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	1.28 in	32.5 mm
Nichicon UVY2C100MPD1TD	Radial, Can	1000 Hrs	47.15 mA	0.315 "	8 mm	3.5 mm	0.138 in	Polar	Through Hole	10 µF	41 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	0.512 "	13 mm
Nichicon UVY2C220MPD	Radial, Can	2000 Hrs	105.8 mA	0.394 in	10 mm	5 mm	0.197 in	Polar	Through Hole	22 µF	92 mA	160 V	General Purpose	20 %	-40 °C	105 ░C			14 mm	0.551 "
Nichicon UVY2C680MHD1TO	Radial, Can	2000 Hrs	287.5 mA	0.492 in	12.5 mm	5 mm	0.197 in	Polar	Through Hole	68 µF	250 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	0.866 in	22 mm
Nichicon UVY2C680MHD	Radial, Can	2000 Hrs	287.5 mA	0.492 in	12.5 mm	5 mm	0.197 in	Polar	Through Hole	68 µF	250 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	0.866 in	22 mm
Nichicon UVY2C102MRD	Radial, Can	2000 Hrs	1.5525 A	0.984 "	25 mm	12.5 mm	0.492 in	Polar	Through Hole	1000 µF	1.35 A	160 V	General Purpose	20 %	-40 °C	105 ░C	2.047 in	52 mm
Nichicon UVY2C101MHD1TO	Radial, Can	2000 Hrs	356.5 mA	0.492 in	12.5 mm	5 mm	0.197 in	Polar	Through Hole	100 µF	310 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	1.063 in	27 mm
Nichicon UVY2C471MHD	Radial, Can	2000 Hrs	983.25 mA	0.709 "	18 mm	7.5 mm	0.295 in	Polar	Through Hole	470 µF	855 mA	160 V	General Purpose	20 %	-40 °C	105 ░C				1.654 in	42 mm
Nichicon UVY2C330MPD1TD	Radial, Can	2000 Hrs	143.75 mA	0.394 in	10 mm	5 mm	0.197 in	Polar	Through Hole	33 ÁF	125 mA	160 V	General Purpose	20 %	-40 °C	105 ░C				0.689 in	17.5 mm
Nichicon UVY2C470MPD1TD	Radial, Can	2000 Hrs	172.5 mA	0.394 in	10 mm	5 mm	0.197 in	Polar	Through Hole	47 µF	150 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	0.866 in	22 mm
