UVY2C470MPD1TD

Active

Nichicon

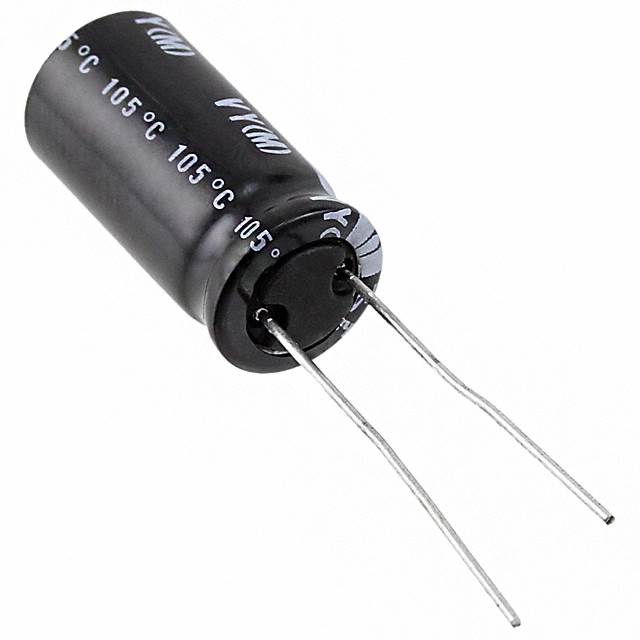

CAP ALUM 47UF 20% 160V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiniature Type Taping Spec Datasheet

UVY2C470MPD1TD

Active

Nichicon

CAP ALUM 47UF 20% 160V RADIAL TH

Deep-Dive with AI

DocumentsMiniature Type Taping Spec Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.04
		10	$ 0.64
		50	$ 0.48
		100	$ 0.43
	Tape & Box (TB)	500	$ 0.30
		1000	$ 0.27
		1500	$ 0.26
		2500	$ 0.25
		3500	$ 0.24
		5000	$ 0.24
Newark	Each (Supplied on Full Reel)	1	$ 0.33
		5000	$ 0.33
		10000	$ 0.30
		20000	$ 0.28
		30000	$ 0.26
		50000	$ 0.25

Description

General part information

UVY2C Series

47 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Documents

Technical documentation and resources

Miniature Type Taping Spec

Datasheet

Specification	UVY2C470MPD1TD	UVY2C Series

Applications	General Purpose	General Purpose
Capacitance	47 µF	10 - 1000 µF
Height - Seated (Max)	-	14 mm
Height - Seated (Max)	-	0.551 - 1.654 "
Height - Seated (Max)	-	17.5 - 42 mm
Height - Seated (Max) [Max] [z]	22 mm	13 - 52 mm
Height - Seated (Max) [Max] [z]	0.866 in	0.512 - 2.047 in
Lead Spacing	5 mm	3.5 - 12.5 mm
Lead Spacing	0.197 in	0.138 - 0.492 in
Lifetime @ Temp.	2000 Hrs	1000 - 2000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	172.5 mA	1.5525 - 983.25 mA
Ripple Current @ Low Frequency	150 mA	1.35 - 855 mA
Size / Dimension [diameter]	10 mm	8 - 25 mm
Size / Dimension [diameter]	0.394 in	0.315 - 0.984 in
Tolerance	20 %	20 %
Voltage - Rated	160 V	160 V

Part

Package / Case

Lifetime @ Temp.

Ripple Current @ High Frequency

Size / Dimension [diameter]

Lead Spacing

Polarization

Mounting Type

Capacitance

Ripple Current @ Low Frequency

Voltage - Rated

Applications

Tolerance

Operating Temperature [Min]

Operating Temperature [Max]

Height - Seated (Max) [Max] [z]

Height - Seated (Max)

Height - Seated (Max) [Max]

Nichicon

UVY2C221MHD

Radial, Can

2000 Hrs

471.5 mA

0.63 in

16 mm

7.5 mm

0.295 in

Polar

Through Hole

220 µF

410 mA

160 V

General Purpose

20 %

-40 °C

105 ░C

1.28 in

32.5 mm

Nichicon

UVY2C100MPD1TD

Radial, Can

1000 Hrs

47.15 mA

0.315 "

8 mm

3.5 mm

0.138 in

Polar

Through Hole

10 µF

41 mA

160 V

General Purpose

20 %

-40 °C

105 ░C

0.512 "

13 mm

Nichicon

UVY2C220MPD

Radial, Can

2000 Hrs

105.8 mA

0.394 in

10 mm

5 mm

0.197 in

Polar

Through Hole

22 µF

92 mA

160 V

General Purpose

20 %

-40 °C

105 ░C

14 mm

0.551 "

Nichicon

UVY2C680MHD1TO

Radial, Can

2000 Hrs

287.5 mA

0.492 in

12.5 mm

5 mm

0.197 in

Polar

Through Hole

68 µF

250 mA

160 V

General Purpose

20 %

-40 °C

105 ░C

0.866 in

22 mm

Nichicon

UVY2C680MHD

Radial, Can

2000 Hrs

287.5 mA

0.492 in

12.5 mm

5 mm

0.197 in

Polar

Through Hole

68 µF

250 mA

160 V

General Purpose

20 %

-40 °C

105 ░C

0.866 in

22 mm

Nichicon

UVY2C102MRD

Radial, Can

2000 Hrs

1.5525 A

0.984 "

25 mm

12.5 mm

0.492 in

Polar

Through Hole

1000 µF

1.35 A

160 V

General Purpose

20 %

-40 °C

105 ░C

2.047 in

52 mm

Nichicon

UVY2C101MHD1TO

Radial, Can

2000 Hrs

356.5 mA

0.492 in

12.5 mm

5 mm

0.197 in

Polar

Through Hole

100 µF

310 mA

160 V

General Purpose

20 %

-40 °C

105 ░C

1.063 in

27 mm

Nichicon

UVY2C471MHD

Radial, Can

2000 Hrs

983.25 mA

0.709 "

18 mm

7.5 mm

0.295 in

Polar

Through Hole

470 µF

855 mA

160 V

General Purpose

20 %

-40 °C

105 ░C

1.654 in

42 mm

Nichicon

UVY2C330MPD1TD

Radial, Can

2000 Hrs

143.75 mA

0.394 in

10 mm

5 mm

0.197 in

Polar

Through Hole

33 ÁF

125 mA

160 V

General Purpose

20 %

-40 °C

105 ░C

0.689 in

17.5 mm

Nichicon

UVY2C470MPD1TD

Radial, Can

2000 Hrs

172.5 mA

0.394 in

10 mm

5 mm

0.197 in

Polar

Through Hole

47 µF

150 mA

160 V

General Purpose

20 %

-40 °C

105 ░C

0.866 in

22 mm

Part	Package / Case	Lifetime @ Temp.	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Polarization	Mounting Type	Capacitance	Ripple Current @ Low Frequency	Voltage - Rated	Applications	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon UVY2C221MHD	Radial, Can	2000 Hrs	471.5 mA	0.63 in	16 mm	7.5 mm	0.295 in	Polar	Through Hole	220 µF	410 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	1.28 in	32.5 mm
Nichicon UVY2C100MPD1TD	Radial, Can	1000 Hrs	47.15 mA	0.315 "	8 mm	3.5 mm	0.138 in	Polar	Through Hole	10 µF	41 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	0.512 "	13 mm
Nichicon UVY2C220MPD	Radial, Can	2000 Hrs	105.8 mA	0.394 in	10 mm	5 mm	0.197 in	Polar	Through Hole	22 µF	92 mA	160 V	General Purpose	20 %	-40 °C	105 ░C			14 mm	0.551 "
Nichicon UVY2C680MHD1TO	Radial, Can	2000 Hrs	287.5 mA	0.492 in	12.5 mm	5 mm	0.197 in	Polar	Through Hole	68 µF	250 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	0.866 in	22 mm
Nichicon UVY2C680MHD	Radial, Can	2000 Hrs	287.5 mA	0.492 in	12.5 mm	5 mm	0.197 in	Polar	Through Hole	68 µF	250 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	0.866 in	22 mm
Nichicon UVY2C102MRD	Radial, Can	2000 Hrs	1.5525 A	0.984 "	25 mm	12.5 mm	0.492 in	Polar	Through Hole	1000 µF	1.35 A	160 V	General Purpose	20 %	-40 °C	105 ░C	2.047 in	52 mm
Nichicon UVY2C101MHD1TO	Radial, Can	2000 Hrs	356.5 mA	0.492 in	12.5 mm	5 mm	0.197 in	Polar	Through Hole	100 µF	310 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	1.063 in	27 mm
Nichicon UVY2C471MHD	Radial, Can	2000 Hrs	983.25 mA	0.709 "	18 mm	7.5 mm	0.295 in	Polar	Through Hole	470 µF	855 mA	160 V	General Purpose	20 %	-40 °C	105 ░C				1.654 in	42 mm
Nichicon UVY2C330MPD1TD	Radial, Can	2000 Hrs	143.75 mA	0.394 in	10 mm	5 mm	0.197 in	Polar	Through Hole	33 ÁF	125 mA	160 V	General Purpose	20 %	-40 °C	105 ░C				0.689 in	17.5 mm
Nichicon UVY2C470MPD1TD	Radial, Can	2000 Hrs	172.5 mA	0.394 in	10 mm	5 mm	0.197 in	Polar	Through Hole	47 µF	150 mA	160 V	General Purpose	20 %	-40 °C	105 ░C	0.866 in	22 mm
