M3KKK-2406J
Active3M
IDC CABLE - MPK24K/MC24G/MPK24K
Deep-Dive with AI
Search across all available documentation for this part.
M3KKK-2406J
Active3M
IDC CABLE - MPK24K/MC24G/MPK24K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3KKK-2406J | M3KKK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Plug to Plug | Plug to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length | 152.4 mm | 152.4 - 508 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 1.02 - 914.4 mm |
| Length | - | 1.5 - 3.34 ft |
| Length | - | 1.67 ft |
| Number of Positions | 24 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3KKK Series
IDC CABLE - MPK24K/MC24G/MPK24K
| Part | Connector Type | Cable Termination | Pitch - Cable | Pitch - Cable | Shielding | Number of Rows | Number of Positions | Contact Finish | Length | Length | Length | Contact Finish Thickness | Contact Finish Thickness | Pitch - Connector | Pitch - Connector | Features | Length [x] | Length [x] | Length | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Plug to Plug | IDC | 0.05 " | 1.27 mm | Unshielded | 2 | 24 | Gold | 152.4 mm | 6 " | 0.5 ' | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Polarizing Key | ||||||
Plug to Plug | IDC | 0.05 " | 1.27 mm | Unshielded | 2 | 60 | Gold | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Polarizing Key | 457.2 mm | 1.5 ft | |||||||
Plug to Plug | IDC | 0.05 " | 1.27 mm | Unshielded | 2 | 26 | Gold | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Polarizing Key | 457.2 mm | 1.5 ft | |||||||
Plug to Plug | IDC | 0.05 " | 1.27 mm | Unshielded | 2 | 64 | Gold | 508 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Polarizing Key | 1.67 ft | Multiple, Twisted Pair (Flat) | ||||||
Plug to Plug | IDC | 0.05 " | 1.27 mm | Unshielded | 2 | 36 | Gold | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Polarizing Key | 457.2 mm | 1.5 ft | |||||||
Plug to Plug | IDC | 0.05 " | 1.27 mm | Unshielded | 2 | 36 | Gold | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Polarizing Key | 914.4 mm | 3 ft | Multiple, Ribbon | ||||||
Plug to Plug | IDC | 0.05 " | 1.27 mm | Unshielded | 2 | 30 | Gold | 152.4 mm | 6 " | 0.5 ' | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Polarizing Key | Multiple, Ribbon | |||||
Plug to Plug | IDC | 0.05 " | 1.27 mm | Unshielded | 2 | 26 | Gold | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Polarizing Key | 457.2 mm | 1.5 ft | Multiple, Ribbon | ||||||
Plug to Plug | IDC | 0.05 " | 1.27 mm | Unshielded | 2 | 26 | Gold | 508 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Polarizing Key | 1.67 ft | Multiple, Twisted Pair (Flat) | ||||||
Plug to Plug | IDC | 0.05 " | 1.27 mm | Unshielded | 2 | 40 | Gold | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Polarizing Key | 914.4 mm | 3 ft | Multiple, Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.70 | |
| 10 | $ 18.27 | |||
| 25 | $ 16.54 | |||
| 50 | $ 15.37 | |||
| 100 | $ 14.31 | |||
| 250 | $ 13.06 | |||
| 500 | $ 12.22 | |||
Description
General part information
M3KKK Series

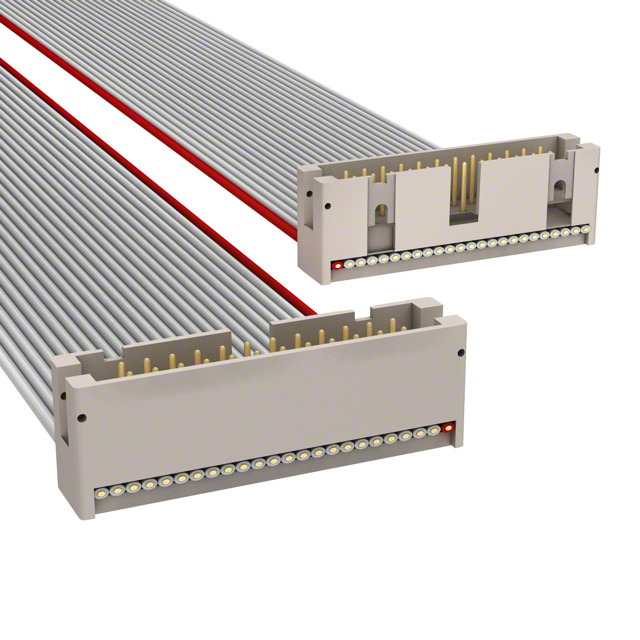

24 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")
