ZW50F90HW1

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Basic, Toggle, Rocker Switches Range Guide +1

ZW50F90HW1

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet Basic, Toggle, Rocker Switches Range Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZW50F90HW1	ZW50F Series

Actuator Type	Simulated Roller, Lever	Simulated Roller, Lever, Lever, Straight, Round (Pin Plunger), Roller
Circuit	SPDT	SPDT, SPST-NO
Current Rating (Amps)	5 A	5 - 6 A
Differential Travel	0.026 in	0.008 - 0.028 in
Differential Travel	0.65 mm	0.2 - 0.7 mm
Electrical Life	10000 Cycles	10000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, IP00
Mechanical Life	2000000 Cycles	1000000 - 2000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	95 gf	66 - 203 gf
Operating Position	-	8.4 - 8.8 mm
Operating Position	-	0.33 - 0.345 in
Operating Position	-	0.571 in
Operating Position	-	14.5 mm
Operating Temperature [Max]	105 ░C	105 - 120 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.039 in	0.025 - 0.039 in
Overtravel	1 mm	0.6 - 1 mm
Pretravel	4.6 mm	1.2 - 4.8 mm
Pretravel	0.18 in	0.047 - 0.188 in
Release Force	19 gf	13 - 50 gf
Switch Function	On-Mom	On-Mom, Off-Mom
Termination Style	Wire Leads	Wire Leads, Solder Lug
Voltage Rating - AC	125 V	125 V

ZW50F Series

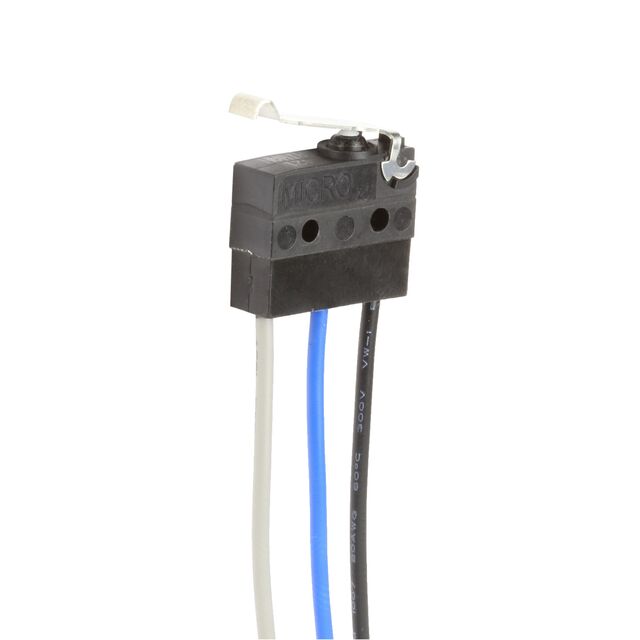

SWITCH SNAP ACTION SPDT 5A 125V

Part	Termination Style	Mechanical Life	Mounting Type	Actuator Type	Overtravel	Overtravel	Operating Force	Differential Travel	Differential Travel	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Release Force	Current Rating (Amps)	Voltage Rating - AC	Circuit	Ingress Protection	Pretravel	Pretravel	Electrical Life	Operating Position	Operating Position	Operating Position [custom]	Operating Position [custom]
Honeywell Sensing and Productivity Solutions ZW50F90HW1	Wire Leads	2000000 Cycles	Chassis Mount	Lever, Simulated Roller	0.039 in	1 mm	95 gf	0.026 in	0.65 mm	On-Mom	-40 °C	105 ░C	19 gf	5 A	125 V	SPDT	IP67 - Dust Tight, Waterproof	4.6 mm	0.18 in	10000 Cycles
Honeywell Sensing and Productivity Solutions ZW50F99CW1-B	Wire Leads	1000000 Cycles	Chassis Mount	Lever, Straight	0.039 in	1 mm	66 gf	0.028 in	0.7 mm	On-Mom	-40 °C	105 ░C	13 gf	5 A	125 V	SPDT	IP67 - Dust Tight, Waterproof	4.8 mm	0.188 in	10000 Cycles	8.8 mm	0.345 in
Honeywell Sensing and Productivity Solutions ZW50F15CD1	Solder Lug	1000000 Cycles	Chassis Mount	Lever, Straight						On-Mom	-40 °C	120 °C		6 A	125 V	SPDT	IP00
Honeywell Sensing and Productivity Solutions ZW50F15CD1-Z	Solder Lug	1000000 Cycles	Chassis Mount	Lever, Straight	0.039 in	1 mm	66 gf	0.028 in	0.7 mm	On-Mom	-40 °C	120 °C	13 gf	5 A	125 V	SPDT	IP00	4.8 mm	0.188 in	10000 Cycles	8.8 mm	0.345 in
Honeywell Sensing and Productivity Solutions ZW50F90AW1	Wire Leads	1000000 Cycles	Chassis Mount	Round (Pin Plunger)	0.025 "	0.6 mm	203 gf	0.008 in	0.2 mm	On-Mom	-40 °C	105 ░C	50 gf	5 A	125 V	SPDT	IP67 - Dust Tight, Waterproof	1.2 mm	0.047 in	10000 Cycles	8.4 mm	0.33 in
Honeywell Sensing and Productivity Solutions ZW50F92AW3	Wire Leads	1000000 Cycles	Chassis Mount	Round (Pin Plunger)	0.025 "	0.6 mm	203 gf	0.008 in	0.2 mm	Off-Mom	-40 °C	105 ░C	50 gf	5 A	125 V	SPST-NO	IP67 - Dust Tight, Waterproof	1.2 mm	0.047 in	10000 Cycles	8.4 mm	0.33 in
Honeywell Sensing and Productivity Solutions ZW50F91HW1	Wire Leads	2000000 Cycles	Chassis Mount	Lever, Simulated Roller	0.039 in	1 mm	95 gf	0.026 in	0.65 mm	On-Mom	-40 °C	105 ░C	19 gf	5 A	125 V	SPDT	IP67 - Dust Tight, Waterproof	4.6 mm	0.18 in	10000 Cycles
Honeywell Sensing and Productivity Solutions ZW50F15FD1-Z	Solder Lug	2000000 Cycles	Chassis Mount	Lever, Roller	0.035 "	0.9 mm	72 gf	0.025 in	0.6 mm	On-Mom	-40 °C	120 °C	15 gf	5 A	125 V	SPDT	IP00	4.3 mm	0.17 in	10000 Cycles			0.571 in	14.5 mm
Honeywell Sensing and Productivity Solutions ZW50F90CW3	Wire Leads	2000000 Cycles	Chassis Mount	Lever, Straight	0.039 in	1 mm	66 gf	0.027 "	0.7 mm	Off-Mom	-40 °C	105 ░C	13 gf	5 A	125 V	SPST-NO	IP67 - Dust Tight, Waterproof	4.8 mm	0.188 in	10000 Cycles	8.8 mm	0.345 in
Honeywell Sensing and Productivity Solutions ZW50F91AW1-Z	Wire Leads	1000000 Cycles	Chassis Mount	Round (Pin Plunger)	0.025 "	0.6 mm	203 gf	0.008 in	0.2 mm	On-Mom	-40 °C	105 ░C	50 gf	5 A	125 V	SPDT	IP67 - Dust Tight, Waterproof	1.2 mm	0.047 in	10000 Cycles	8.4 mm	0.33 in
