ZW50F15CD1

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZW50F15CD1

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 6.52

Description

General part information

ZW50 Series

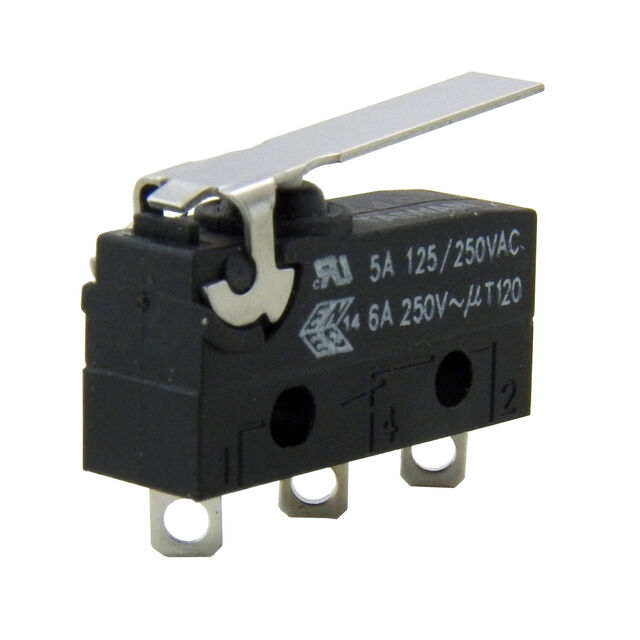

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZW50F15CD1	ZW50 Series

Actuator Type	Lever, Straight	Lever, Straight, Round (Pin Plunger), Roller, Lever
Circuit	SPDT	SPDT-NC, SPDT
Current Rating (Amps)	6 A	5 - 6 A
Differential Travel	-	0.008 in
Differential Travel	-	0.2 mm
Electrical Life	-	10000 Cycles
Ingress Protection	IP00	IP00, IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles	1000000 - 2000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	-	72 - 203 gf
Operating Position	-	8.4 mm
Operating Position	-	0.33 in
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	-	0.6 mm
Overtravel	-	0.025 "
Pretravel	-	0.047 in
Pretravel	-	1.2 mm
Release Force	-	50 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Quick Connect - 0.110" (2.8mm), Wire Leads, Solder Lug
Voltage Rating - AC	125 V	125 V

ZW50 Series

SWITCH SNAP ACT SPDT-NC 6A 125V

Part	Actuator Type	Ingress Protection	Voltage Rating - AC	Mounting Type	Mechanical Life	Current Rating (Amps)	Termination Style	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Operating Force
Honeywell Sensing and Productivity Solutions ZW50F70JD4	Lever, Straight	IP00	125 V	Chassis Mount	1000000 Cycles	6 A	Quick Connect - 0.110" (2.8mm)	On-Mom	-40 °C	120 °C	SPDT-NC
Honeywell Sensing and Productivity Solutions ZW50F91DW4	Lever, Straight	IP67 - Dust Tight, Waterproof	125 V	Chassis Mount	1000000 Cycles	6 A	Wire Leads	On-Mom	-40 °C	120 °C	SPDT-NC
Honeywell Sensing and Productivity Solutions ZW50F70AD1	Round (Pin Plunger)	IP00	125 V	Chassis Mount	1000000 Cycles	6 A	Quick Connect - 0.110" (2.8mm)	On-Mom	-40 °C	120 °C	SPDT	203 gf
Honeywell Sensing and Productivity Solutions ZW50F15CD1	Lever, Straight	IP00	125 V	Chassis Mount	1000000 Cycles	6 A	Solder Lug	On-Mom	-40 °C	120 °C	SPDT
Honeywell Sensing and Productivity Solutions ZW50F90FW1	Lever, Roller	IP67 - Dust Tight, Waterproof	125 V	Chassis Mount	1000000 Cycles	6 A	Wire Leads	On-Mom	-40 °C	120 °C	SPDT	72 gf
Honeywell Sensing and Productivity Solutions ZW50F99AW4-B	Round (Pin Plunger)	IP67 - Dust Tight, Waterproof	125 V		1000000 Cycles	6 A		On-Mom	-40 °C	120 °C	SPDT-NC	203 gf
Honeywell Sensing and Productivity Solutions ZW50F91CW1	Lever, Straight	IP67 - Dust Tight, Waterproof	125 V	Chassis Mount	1000000 Cycles	6 A	Wire Leads	On-Mom	-40 °C	120 °C	SPDT
Honeywell Sensing and Productivity Solutions ZW50F70SD1-A		IP00	125 V	Chassis Mount	1000000 Cycles	6 A	Quick Connect - 0.110" (2.8mm)	On-Mom	-40 °C	120 °C	SPDT
Honeywell Sensing and Productivity Solutions ZW50F91FW1	Lever, Roller	IP67 - Dust Tight, Waterproof	125 V	Chassis Mount	1000000 Cycles	6 A	Wire Leads	On-Mom	-40 °C	120 °C	SPDT
Honeywell Sensing and Productivity Solutions ZW50F92AW1	Round (Pin Plunger)	IP67 - Dust Tight, Waterproof	125 V	Chassis Mount	1000000 Cycles	6 A	Wire Leads	On-Mom	-40 °C	120 °C	SPDT	203 gf
