CDCEL949PERF-EVM
ActiveEVAL MOD PERFORMANCE FOR CDCE949
Deep-Dive with AI
Search across all available documentation for this part.
CDCEL949PERF-EVM
ActiveEVAL MOD PERFORMANCE FOR CDCE949
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CDCEL949PERF-EVM | CDCEL949 Series |
|---|---|---|
| Differential - Input:Output | - | False |
| Differential - Input:Output | - | False |
| Divider/Multiplier | - | Yes/No |
| Frequency - Max | - | 230 MHz |
| Function | Clock Generator | Clock Generator |
| Input | - | LVCMOS, Crystal |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Output | - | LVCMOS |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.173 " |
| Package / Case | - | 24-TSSOP |
| PLL | - | Yes with Bypass |
| Ratio - Input:Output | - | 1 |
| Ratio - Input:Output | - | 9 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-TSSOP |
| Type | Timing | Clock/Frequency Synthesizer, Timing |
| Utilized IC / Part | CDCEL949PERF | CDCEL949PERF |
| Voltage - Supply | - | 1.7 V |
| Voltage - Supply | - | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.80 | |
CDCEL949 Series
Programmable 4-PLL VCXO clock synthesizer with 1.8-V LVCMOS outputs
| Part | Type | Divider/Multiplier | Output | Frequency - Max [Max] | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case [y] | Package / Case [y] | Package / Case | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | Input | PLL | Supplier Device Package | Number of Circuits | Supplied Contents | Utilized IC / Part | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CDCEL949PW | Clock/Frequency Synthesizer | Yes/No | LVCMOS | 230 MHz | 1.7 V | 1.9 V | 4.4 mm | 0.173 " | 24-TSSOP | Surface Mount | -40 °C | 85 °C | 1 | 9 | Crystal, LVCMOS | Yes with Bypass | 24-TSSOP | 1 | |||||
Texas Instruments CDCEL949PWRG4 | Clock/Frequency Synthesizer | Yes/No | LVCMOS | 230 MHz | 1.7 V | 1.9 V | 4.4 mm | 0.173 " | 24-TSSOP | Surface Mount | -40 °C | 85 °C | 1 | 9 | Crystal, LVCMOS | Yes with Bypass | 24-TSSOP | 1 | |||||

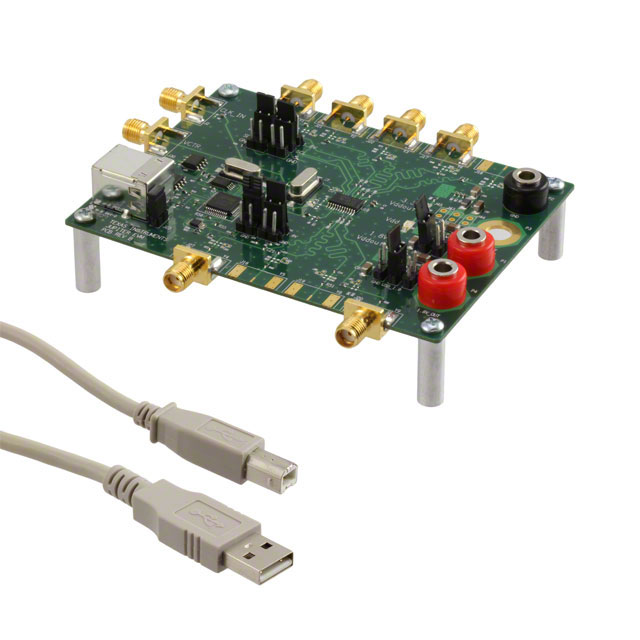

Texas Instruments CDCEL949PERF-EVM | Timing | Board(s) | CDCEL949PERF | Clock Generator | |||||||||||||||||||
Texas Instruments CDCEL949PWR | Clock/Frequency Synthesizer | Yes/No | LVCMOS | 230 MHz | 1.7 V | 1.9 V | 4.4 mm | 0.173 " | 24-TSSOP | Surface Mount | -40 °C | 85 °C | 1 | 9 | Crystal, LVCMOS | Yes with Bypass | 24-TSSOP | 1 |
Description
General part information
CDCEL949 Series
The CDCE949 and CDCEL949 are modular PLL-based low cost, high-performance, programmable clock synthesizers, multipliers and dividers. These devices generate up to nine output clocks from a single input frequency. Each output can be programmed in-system for any clock frequency up to 230MHz, using up to four independent configurable PLLs.
The CDCEx949 has separate output supply pins (VDDOUT): 1.8V for the CDCEL949 and 2.5V to 3.3V for the CDCE949.
The input accepts an external crystal or LVCMOS clock signal. If an external crystal is used, an on-chip load capacitor is adequate for most applications. The value of the load capacitor is programmable from 0pF to 20pF. Additionally, an on-chip VCXO is selectable, allowing synchronization of the output frequency to an external control signal, that is, a PWM signal.
