3282-4PG-3DC

Active

Conxall/Switchcraft

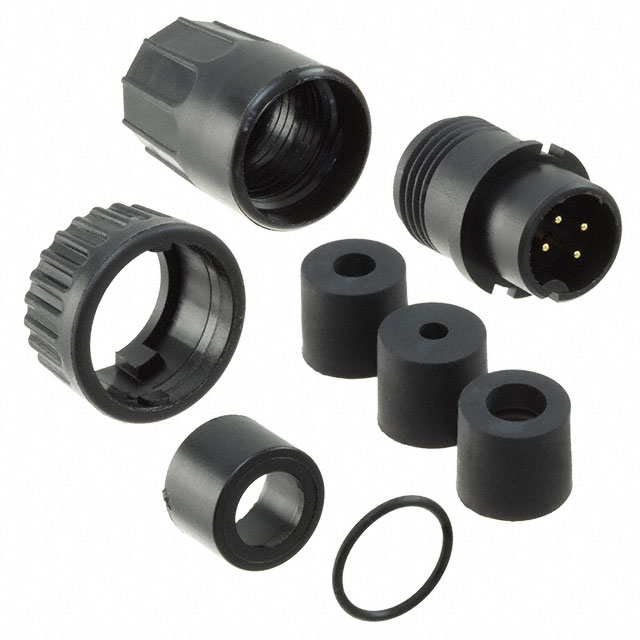

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCable Assemblies & Connectors Catalog Datasheet

3282-4PG-3DC

Active

Conxall/Switchcraft

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsCable Assemblies & Connectors Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3282-4PG-3DC	3282-4P Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	8.13 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3282-4P Series

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Backshell Material, Plating	Mounting Type	Primary Material	Voltage Rating	Current Rating (Amps)	Ingress Protection	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Features	Shielding	Contact Material	Contact Finish - Mating	Number of Positions	Orientation	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3282-4PG-3DC	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug
Conxall/Switchcraft 3282-4PG-515	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell, Cable Clamp	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-4PG-528	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell, Cable Clamp	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug			7.37 mm	7.11 mm	0.29 in	0.28 in
Conxall/Switchcraft 3282-4PG-321	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug			5.84 mm	5.33 mm	0.23 in	0.21 in
Conxall/Switchcraft 3282-4PG-315	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-4PG-324	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug			6.86 mm	6.1 mm	0.27 in	0.24 in
Conxall/Switchcraft 3282-4PG-328	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug			7.37 mm	7.11 mm	0.29 in	0.28 in
Conxall/Switchcraft 3282-4PG-518	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell, Cable Clamp	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug							4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-4PG-524	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell, Cable Clamp	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug			6.86 mm	6.1 mm	0.27 in	0.24 in
Conxall/Switchcraft 3282-4PG-530	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell, Cable Clamp	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug				7.62 mm	0.32 in	0.3 in					8.13 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.18
		10	$ 11.68
		100	$ 10.18
		1000	$ 7.97

Description

General part information

3282-4P Series

4 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Cable Assemblies & Connectors Catalog

Datasheet
