3282-4PG-528

Active

Conxall/Switchcraft

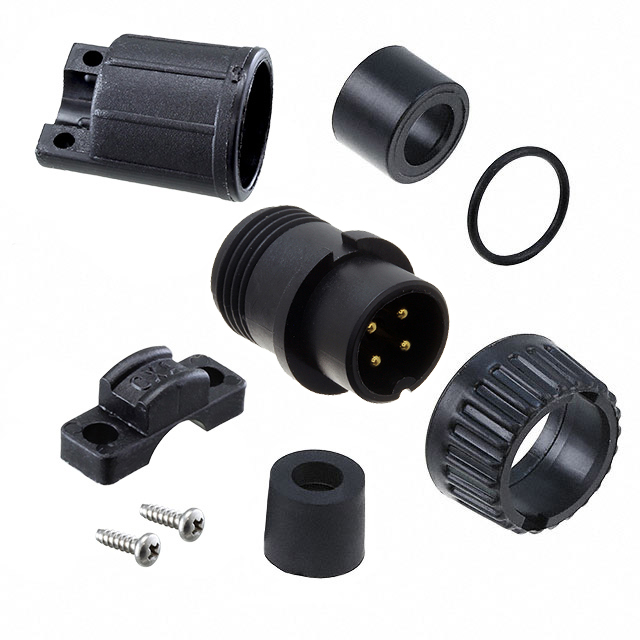

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3282-4PG-528

Active

Conxall/Switchcraft

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.62
		10	$ 11.19
		25	$ 10.76
		50	$ 10.33
		100	$ 9.75
		300	$ 8.89
		500	$ 8.32
		1000	$ 7.63

Description

General part information

3282-4P Series

4 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Multi-Con-X Connectors

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3282-4PG-528	3282-4P Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	8.13 mm
Cable Opening [Max] [diameter]	7.37 mm	5.84 - 7.37 mm
Cable Opening [Max] [diameter]	0.29 in	0.23 - 0.32 in
Cable Opening [Min] [diameter]	7.11 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.28 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3282-4P Series

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Backshell Material, Plating	Mounting Type	Primary Material	Voltage Rating	Current Rating (Amps)	Ingress Protection	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Features	Shielding	Contact Material	Contact Finish - Mating	Number of Positions	Orientation	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3282-4PG-3DC	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug
Conxall/Switchcraft 3282-4PG-515	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell, Cable Clamp	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-4PG-528	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell, Cable Clamp	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug			7.37 mm	7.11 mm	0.29 in	0.28 in
Conxall/Switchcraft 3282-4PG-321	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug			5.84 mm	5.33 mm	0.23 in	0.21 in
Conxall/Switchcraft 3282-4PG-315	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-4PG-324	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug			6.86 mm	6.1 mm	0.27 in	0.24 in
Conxall/Switchcraft 3282-4PG-328	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug			7.37 mm	7.11 mm	0.29 in	0.28 in
Conxall/Switchcraft 3282-4PG-518	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell, Cable Clamp	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug							4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-4PG-524	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell, Cable Clamp	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug			6.86 mm	6.1 mm	0.27 in	0.24 in
Conxall/Switchcraft 3282-4PG-530	Nylon, Polyamide (PA)	Free Hanging (In-Line)	Plastic	600 V	5.6 A	Weathertight	Bayonet Lock	-40 °C	115 °C	Black	Backshell, Cable Clamp	Unshielded	Brass	Gold	4	Keyed	Male Pins, Plug				7.62 mm	0.32 in	0.3 in					8.13 mm
