D01-9950842

Obsolete

Harwin Inc.

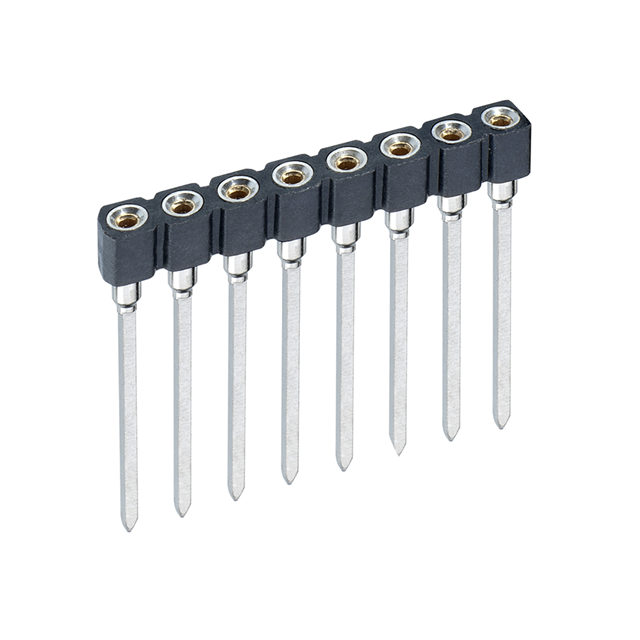

CONN SOCKET SIP 8POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D01-9950842

Obsolete

Harwin Inc.

CONN SOCKET SIP 8POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

D01-995 Series

8 (1 x 8) Pos SIP Socket Gold Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D01-9950842	D01-995 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	10 çin	10 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 çm
Contact Finish Thickness - Post	196.9 µin	196.9 µin
Contact Finish Thickness - Post	5 µm	5 µm
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	8	4 - 16
Number of Positions or Pins (Grid)	-	1 x 12, 1 x 4
Number of Positions or Pins (Grid)	-	1 x 32
Number of Positions or Pins (Grid)	-	32
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Wire Wrap	Wire Wrap
Termination Post Length [x]	0.51 in	0.51 in
Termination Post Length [x]	12.95 mm	12.95 mm
Type	SIP	SIP

D01-995 Series

14 POS. FEMALE SIL VERTICAL WIRE WRAP IC STRIP ROHS COMPLIANT: YES

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Mounting Type	Pitch - Post	Pitch - Post	Contact Finish - Post	Contact Resistance	Contact Material - Mating	Number of Positions or Pins (Grid)	Material Flammability Rating	Contact Material - Post [custom]	Housing Material	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Termination Post Length [x]	Termination Post Length [x]	Number of Positions or Pins (Grid) [custom]
