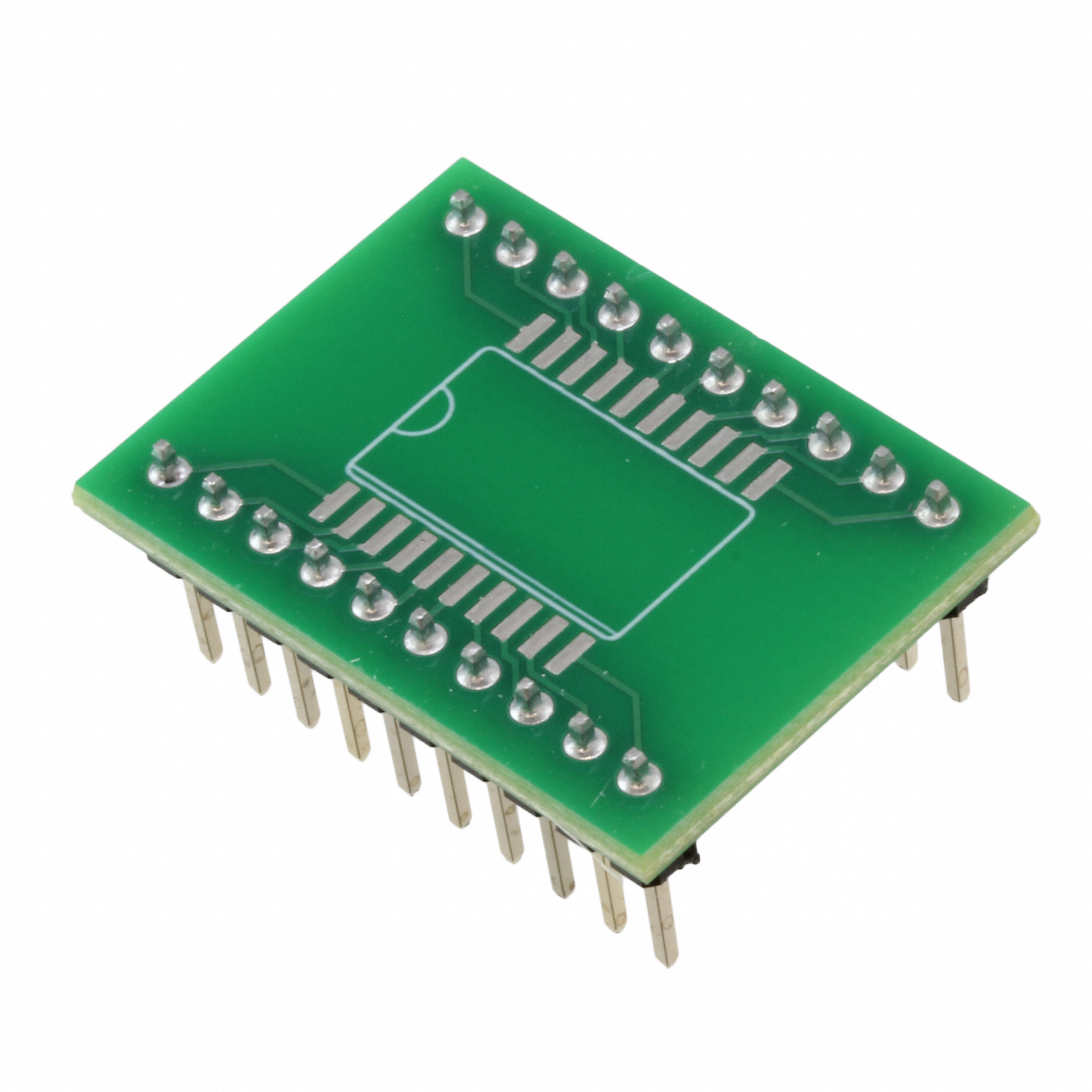

LCQT-SOIC20W

Active

Aries Electronics

SOCKET ADAPTER SOIC-W TO 20DIP

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER SOIC-W TO 20DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SOCKET ADAPTER SOIC-W TO 20DIP

Technical documentation and resources

Parameters and characteristics commom to parts in this series

SOCKET ADAPTER SOIC TO 16DIP

Part	Proto Board Type	Material	Pitch [x]	Pitch [x]	Board Thickness	Board Thickness	Board Thickness	Package Accepted	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Positions	Number of Positions
Aries Electronics LCQT-SOIC16	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	20.32 mm	0.8 "	17.78 mm	0.7 in	16
Aries Electronics LCQT-SOIC20W	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	25.4 mm	1 in	17.78 mm	0.7 in		20
Aries Electronics LCQT-SOIC16W	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	20.32 mm	0.8 "	17.78 mm	0.7 in	16
Aries Electronics LCQT-SOIC14W	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	17.78 mm	0.7 in	17.78 mm	0.7 in		14
Aries Electronics LCQT-SOIC32	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	40.64 mm	1.6 "	17.78 mm	0.7 in
Aries Electronics LCQT-SOIC32W	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	40.64 mm	1.6 "	17.78 mm	0.7 in
Aries Electronics LCQT-SOIC14	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	17.78 mm	0.7 in	17.78 mm	0.7 in		14
Aries Electronics LCQT-SOIC28	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	35.56 mm	1.4 in	17.78 mm	0.7 in		28
