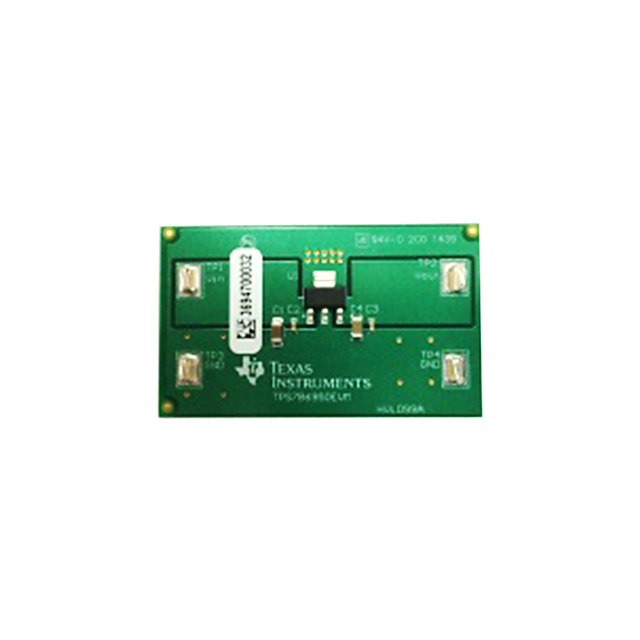

TPS7B6950EVM
ActiveTexas Instruments
EVALUATION MODULE TPS7B6950
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPS7B6950EVM
ActiveTexas Instruments
EVALUATION MODULE TPS7B6950
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS7B6950EVM | TPS7B6950 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 | 1 |
| Current - Output | 150 mA | 150 mA |
| Grade | - | Automotive |
| Mounting Type | - | Surface Mount |
| Number of Regulators | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 105 ░C |
| Output Configuration | - | Positive |
| Output Type | - | 27.03 °C/W |
| Package / Case | - | TO-261AA, TO-261-4, SOT-753, SC-74A |
| Protection Features | - | Under Voltage Lockout (UVLO), Over Temperature, Over Current, Short Circuit |
| PSRR | - | 60 dB |
| Qualification | - | AEC-Q100 |
| Regulator Type | Positive Fixed | Positive Fixed |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | SOT-223-4, SOT-23-5 |
| Utilized IC / Part | TPS7B6950-Q1 | TPS7B6950-Q1 |
| Voltage - Input [Max] | 40 V | 40 V |
| Voltage - Input [Min] | 5.5 V | 5.5 V |
| Voltage - Output | 5 V | 5 V |
| Voltage - Output (Min/Fixed) | - | 5 V |
| Voltage Dropout (Max) | - | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS7B6950 Series
Automotive 150-mA, off-battery (40-V), high-PSRR, low-IQ, low-dropout voltage regulator
| Part | Current - Output | PSRR | Grade | Supplier Device Package | Mounting Type | Qualification | Package / Case | Voltage - Output (Min/Fixed) | Voltage Dropout (Max) [Max] | Output Configuration | Output Type | Protection Features | Number of Regulators | Operating Temperature [Min] | Operating Temperature [Max] | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Channels per IC | Regulator Type | Board Type | Utilized IC / Part | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS7B6950QDCYRQ1The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V VIoperations. With only 15-µA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications.
The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a –40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications.
The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V VIoperations. With only 15-µA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications.
The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a –40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications. | 150 mA | 60 dB | Automotive | SOT-223-4 | Surface Mount | AEC-Q100 | TO-261-4, TO-261AA | 5 V | 0.8 V | Positive | 27.03 °C/W | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | 1 | ||||||||||
Texas Instruments TPS7B6950QDBVRQ1The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V VIoperations. With only 15-µA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications.
The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a –40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications.
The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V VIoperations. With only 15-µA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications.
The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a –40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications. | 150 mA | 60 dB | Automotive | SOT-23-5 | Surface Mount | AEC-Q100 | SC-74A, SOT-753 | 5 V | 0.8 V | Positive | 27.03 °C/W | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | 1 | ||||||||||
Texas Instruments TPS7B6950DBVRThe TPS7B69xx device is a low-dropout linear regulator that operates at up to 40-V VI. With only15-µA (typical) quiescent current at light load, the device is applicable for standby microcontrol-unit systems, especially for always-on applications like e-meters, fire alarms, and smoke detectors.
The devices have integrated short-circuit and overcurrent protection. The TPS7B69xx device operates over a –40°C to 105°C temperature range.
The TPS7B69xx device is a low-dropout linear regulator that operates at up to 40-V VI. With only15-µA (typical) quiescent current at light load, the device is applicable for standby microcontrol-unit systems, especially for always-on applications like e-meters, fire alarms, and smoke detectors.
The devices have integrated short-circuit and overcurrent protection. The TPS7B69xx device operates over a –40°C to 105°C temperature range. | 150 mA | 60 dB | SOT-23-5 | Surface Mount | SC-74A, SOT-753 | 5 V | 0.8 V | Positive | 27.03 °C/W | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | 1 | -40 °C | 105 ░C | ||||||||||
Texas Instruments TPS7B6950EVMTPS7B6950-Q1 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board | 150 mA | Board(s) | 40 V | 5.5 V | 1 | Positive Fixed | Fully Populated | TPS7B6950-Q1 | 5 V |
Description
General part information
TPS7B6950 Series
The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V VIoperations. With only 15-µA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications.
The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a –40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications.
The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V VIoperations. With only 15-µA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications.
