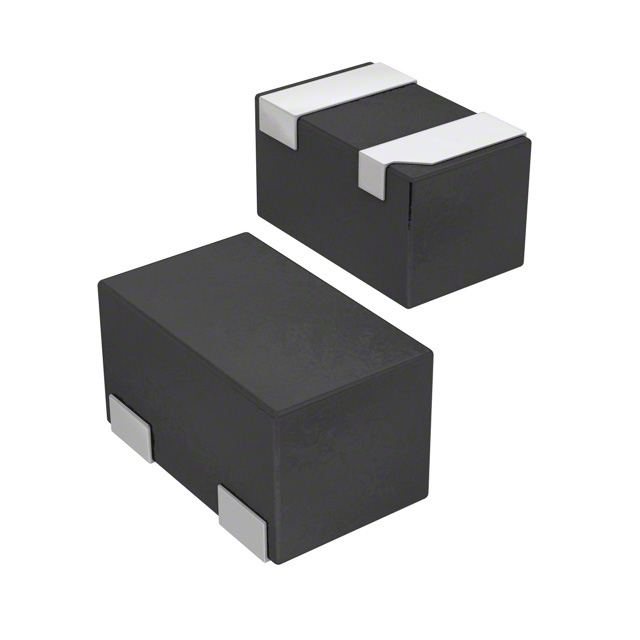

CDDFN2-T5.0LC
ActiveBourns Inc.
TVS DIODE 5VWM 25VC 2DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDDFN2-T5.0LC
ActiveBourns Inc.
TVS DIODE 5VWM 25VC 2DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDDFN2-T5.0LC |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 0.5 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-UFDFN |
| Power Line Protection | False |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 7 V |
| Voltage - Clamping (Max) @ Ipp | 25 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.67 | |
| 10 | $ 0.41 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| 2000 | $ 0.16 | |||
| 5000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.67 | ||
| 10 | $ 0.41 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| 2000 | $ 0.16 | |||
| 5000 | $ 0.14 | |||
| Tape & Reel (TR) | 12000 | $ 0.13 | ||
| 24000 | $ 0.12 | |||
| 36000 | $ 0.11 | |||
| 60000 | $ 0.11 | |||
Description
General part information
CDDFN2 Series
25V (Typ) Clamp Ipp Tvs Diode Surface Mount 2-DFN (1x0.6)
