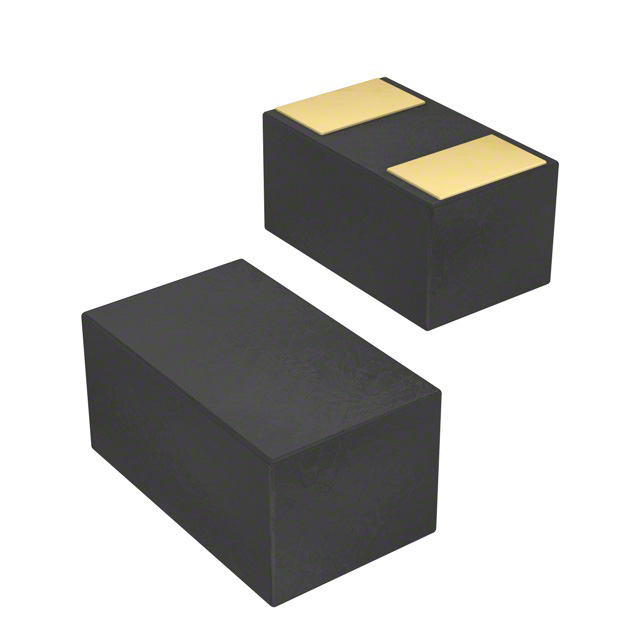

CDDFN2-T12C

Obsolete

Bourns Inc.

TVS DIODE 12VWM 25VC 2DFN

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TVS DIODE 12VWM 25VC 2DFN

Technical Specifications

Parameters and characteristics for this part

Specification	CDDFN2-T12C

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	12 pF
Current - Peak Pulse (10/1000µs)	1 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	2-UFDFN
Power - Peak Pulse	25 W
Power Line Protection	False
Type	Zener
Voltage - Breakdown (Min) [Min]	13 V
Voltage - Clamping (Max) @ Ipp [Max]	25 V
Voltage - Reverse Standoff (Typ)	12 V

Part	Type	Applications	Power Line Protection	Voltage - Reverse Standoff (Typ)	Capacitance @ Frequency	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Package / Case	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp
Bourns Inc. CDDFN2-T12C	Zener	General Purpose		12 V	12 pF	Surface Mount	25 V	-40 °C	125 °C	13 V	25 W	1 A	2-UFDFN	1
Bourns Inc. CDDFN2-T5.0LC	Zener	General Purpose		5 V	0.5 pF	Surface Mount		-40 °C	85 °C	7 V			2-UFDFN	1	25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

25V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (1x0.6)
