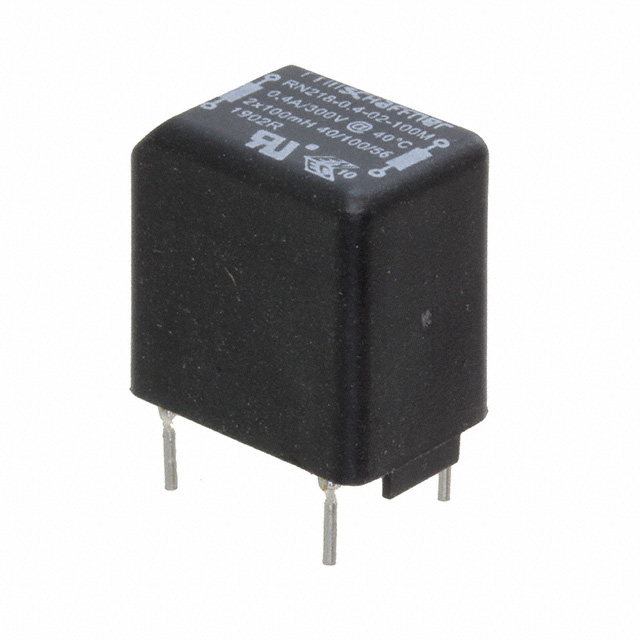

RN218-0.4-02-100M
ActiveTE Connectivity Raychem Cable Protection
CMC 100MH 400MA 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RN218-0.4-02-100M
ActiveTE Connectivity Raychem Cable Protection
CMC 100MH 400MA 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RN218-0.4-02-100M |
|---|---|
| Approval Agency | ENEC, UR, VDE |
| Current Rating (Max) [Max] | 400 mA |
| DC Resistance (DCR) (Max) | 2.8 Ohm |
| Filter Type | Power Line |
| Height (Max) [Max] | 0.799 " |
| Height (Max) [Max] | 20.3 mm |
| Inductance @ Frequency | 100 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 18 mm |
| Size / Dimension [x] | 0.709 in |
| Size / Dimension [y] | 0.492 " |
| Size / Dimension [y] | 12.5 mm |
| Voltage Rating - AC | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.43 | |
| 10 | $ 2.06 | |||
| 25 | $ 1.90 | |||
| 50 | $ 1.70 | |||
| 100 | $ 1.42 | |||
| 250 | $ 1.38 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.21 | |||
| 2500 | $ 1.18 | |||
Description
General part information
RN218 Series
100 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 400mA DCR 2.8Ohm (Typ)
