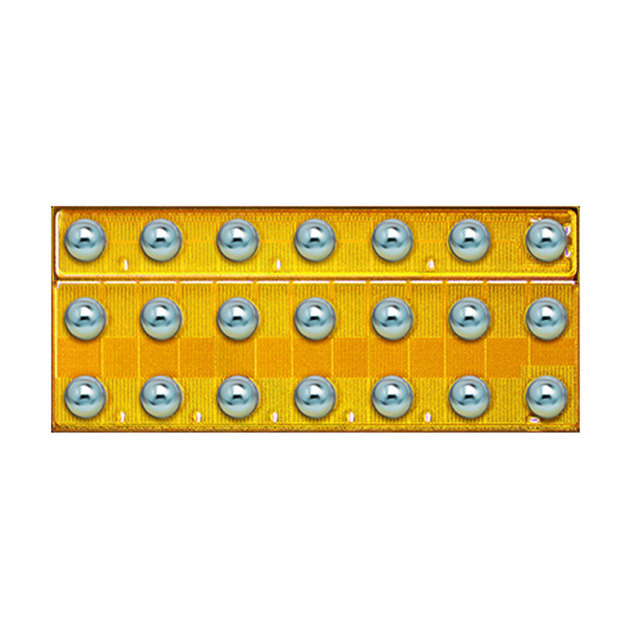

EPC2111

Active

EPC

GANFET 2N-CH 30V 16A DIE

Search across all available documentation for this part.

Active

EPC

GANFET 2N-CH 30V 16A DIE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPC2111	EPC211 Series

Configuration	2 N-Channel (Half Bridge)	2 N-Channel (Dual) Common Source, 2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	-	3.4 A
Drain to Source Voltage (Vdss)	30 V	30 - 120 V
Gate Charge (Qg) (Max) @ Vgs	5.7 nC	5.7 nC
Gate Charge (Qg) (Max) @ Vgs	2.2 nC	0.8 - 2.2 nC
Input Capacitance (Ciss) (Max) @ Vds	230 pF, 590 pF	230 - 590 pF
Input Capacitance (Ciss) (Max) @ Vds	-	80 pF
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Die	Die
Rds On (Max) @ Id, Vgs	19 mOhm, 8 mOhm	8 - 60 mOhm
Supplier Device Package	Die	Die
Technology	GaNFET (Gallium Nitride)	GaNFET (Gallium Nitride)
Vgs(th) (Max) @ Id	2.5 V	2.5 V
Vgs(th) (Max) @ Id	-	2.5 V

GANFET 2N-CH 120V 3.4A DIE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Package / Case	Configuration	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id [Max]	Supplier Device Package	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Technology	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs
EPC EPC2110ENGRT	150 °C	-40 °C	Surface Mount	80 pF	Die	2 N-Channel (Dual) Common Source	3.4 A	2.5 V	Die	60 mOhm	0.8 nC	GaNFET (Gallium Nitride)	120 V
EPC EPC2110	150 °C	-40 °C		80 pF	Die	2 N-Channel (Dual) Common Source	3.4 A	2.5 V	Die	60 mOhm	0.8 nC	GaNFET (Gallium Nitride)	120 V
EPC EPC2111	150 °C	-40 °C	Surface Mount		Die	2 N-Channel (Half Bridge)			Die	8 mOhm, 19 mOhm	2.2 nC	GaNFET (Gallium Nitride)	30 V	2.5 V	230 pF, 590 pF	5.7 nC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 30V 16A (Ta) Surface Mount Die
